2000bph beer Canning line with can Depalletizer Machine

Electric 50Hz 3 Phase Packing Production Line , Bottle Can Depalletizer Machine

Summary

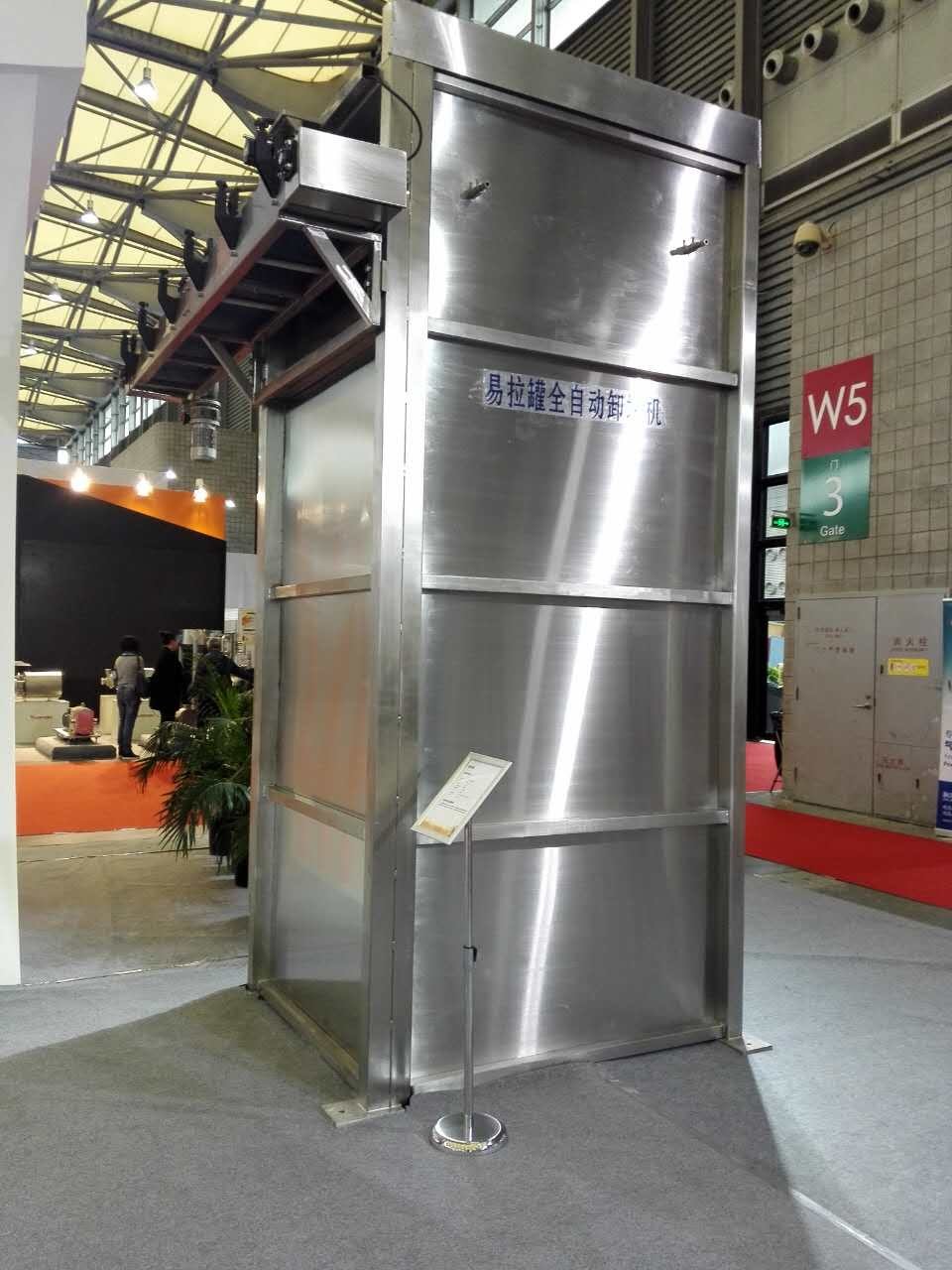

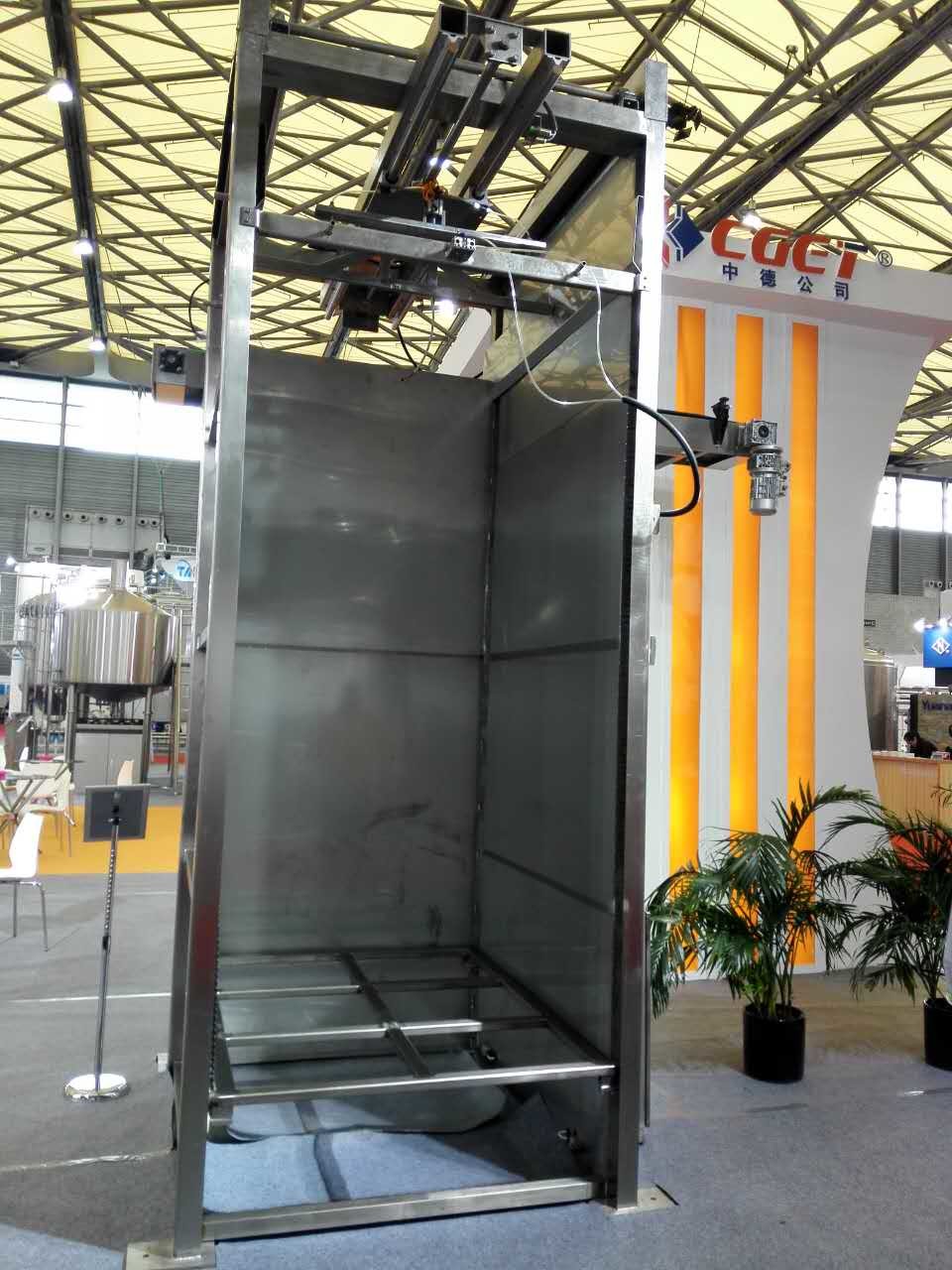

This automatic depalletizer is for the three-pieces can, two-pieces can or glass bottle’s unloading. The empty cans (bottles) are lifted and pushed to the mesh conveyor, and then conveyed to the slideway can washing machine or automatic washing machine by files of conveyor. The machine instead s of manual can (bottle) discharge, which improves the production efficiency, and it is an ideal and necessary machine for the large or medium and small-sized enterprises manufactures of beverage production.

Main Parameter

Production capacity: 3000-5000CPH

Can type: Ø52- Ø 153

Can height: 39-170mm

Mix height for unload: 2800mm

Can pushing type: Pneumatic

Power: 2KW

Size: 3500*2600*3800

Weight: 1500kg

 Theory and Performance

Theory: The machine will be stacked on the pallet of empty cans, the sprocket layers from the bottom up and push to the conveyor belt

Performance of depalletizer

Replacing of manual can (bottle) unloaded which improves the production efficiency

The empty can pushing type: Ball screw type that means the consecutive action or the single circle action can be optionally. It will be convenient for operation and with high applicability.

Used for various sizes of tin or aluminum can

Main components

This machine is composed of head-frame, stack feeding working table, elevating system, can pushing device, can block system, buffer mesh belt, and can discharging conveyor belt and electric and electric and pneumatic system, etc.
