This machine characteristics :

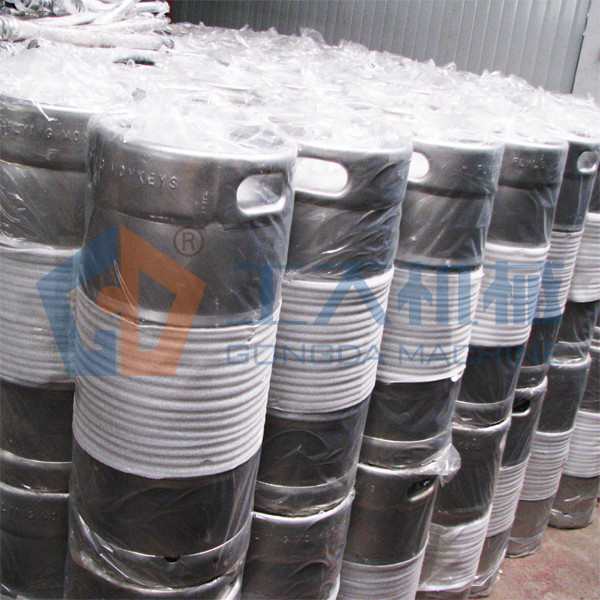

This machine is designed for the washing and sterilizing work of all kinds of beer refreshing containers ( including stainless steel refreshing keg and draught beer keg ) . And this machine can do the works washing , sterlizing and CO₂ pressure preparing automatically .

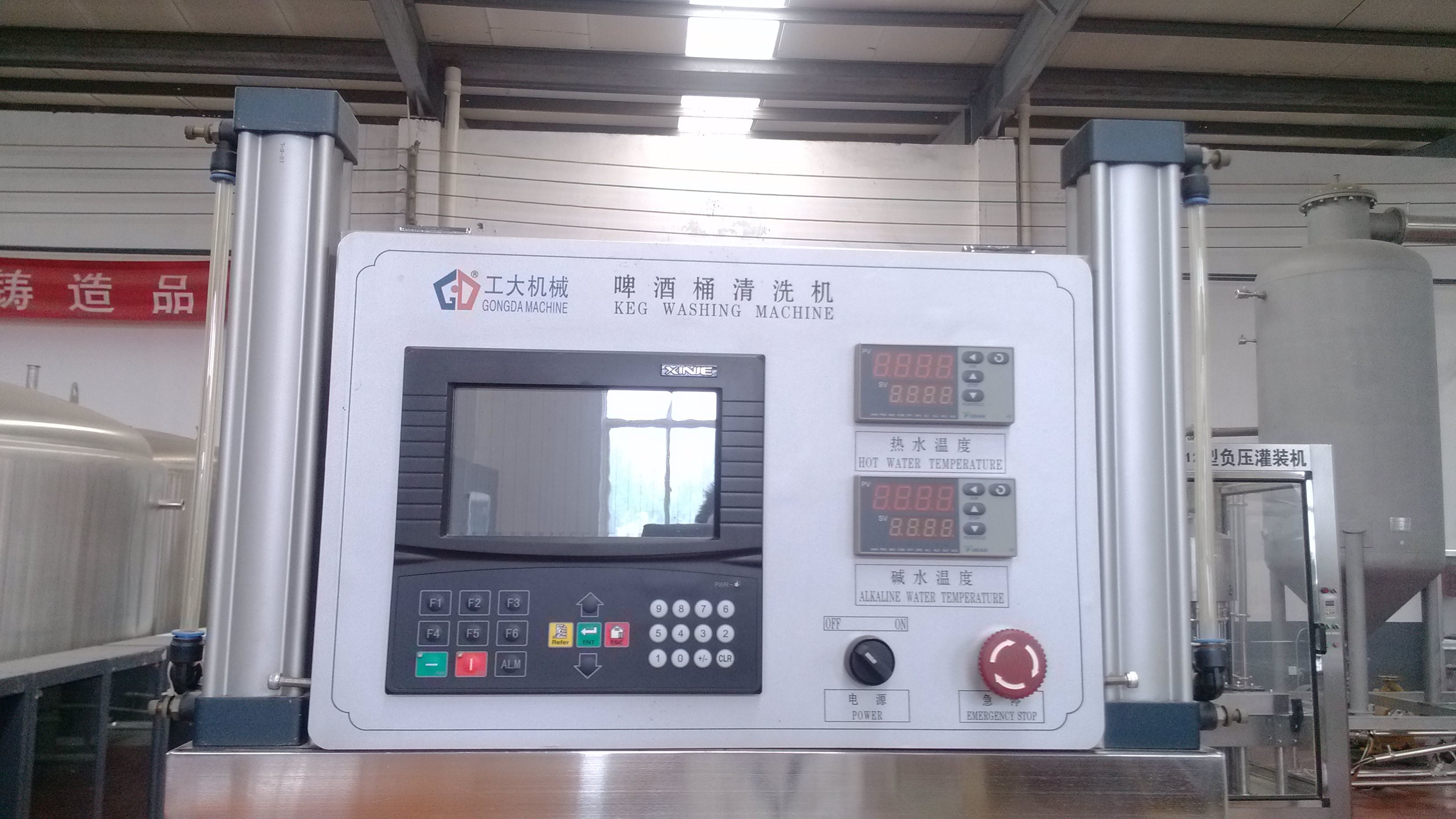

The control unit of this machine uses the LS Programmable controller and WEINVIEW human-computer interface . All of the controls parameters ( time value ) can be adjusted when it is running . This machine is easy to operate . It can wash different refreshing kegs and draught beer kegs by switch selector and changing cleaning head .

This machine is electricity saving and water saving type , it can save 50% water .

1. Technical parameter

1.1  Specification and size and main technical parameter :

Worktable size(mm): 525x640

Worktable height(mm): 660

Machine outside measurement(mm):900 x1530 x1950

Piston maximum stroke(mm): 300

Net weight(Kg): 160

Ability : 30-70 kegs/hour(10L keg)

Air consumption: 4-11.5m³/hour(10L keg)

Water consumption:0.5-1.5 m³/hour(10L keg)

Power: 1500W

Washing style: Inverted washing

Kegs’ size(mm):Diameter:ф250-500

Height:400-600 mm

:

1.2  Technical requirements :

Air pressure: 0.6 - 0.8Mpa

Cylinder pressure: 0.4 - 0.5Mpa

CO₂ pressure: 0.2 - 0.3Mpa

Steam pressure: 0.15 - 0.2Mpa

Hot alkaline water temperature: 40-80℃

Hot water temperature: 40-80℃

Oxyful consistency: 0.5％

Alkaline water consistency: 1.5％

VCC: AC220V 50HZ

2． Primary structure :

Plastic keg cleaning head Stainless steel keg vleaning head

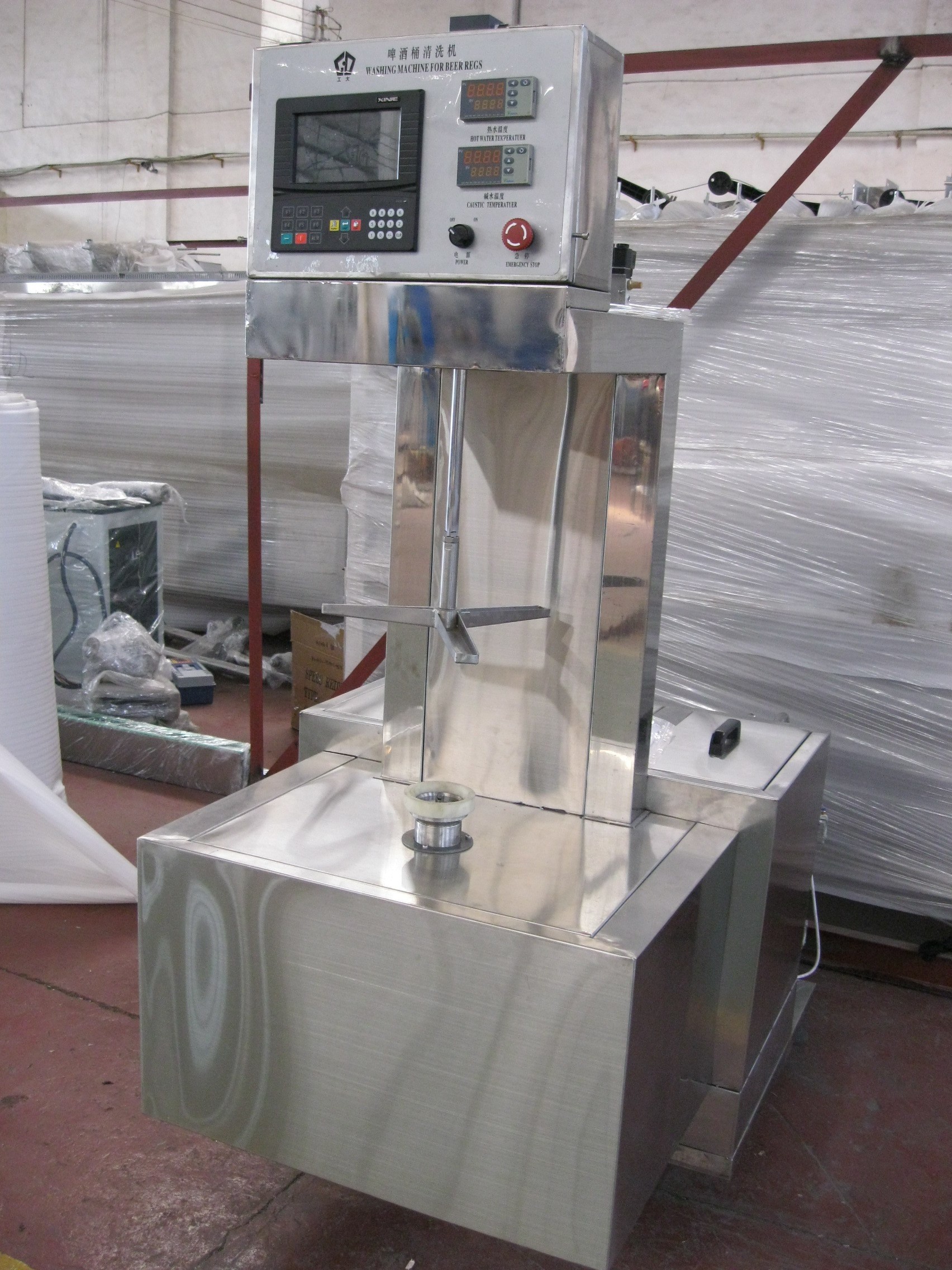

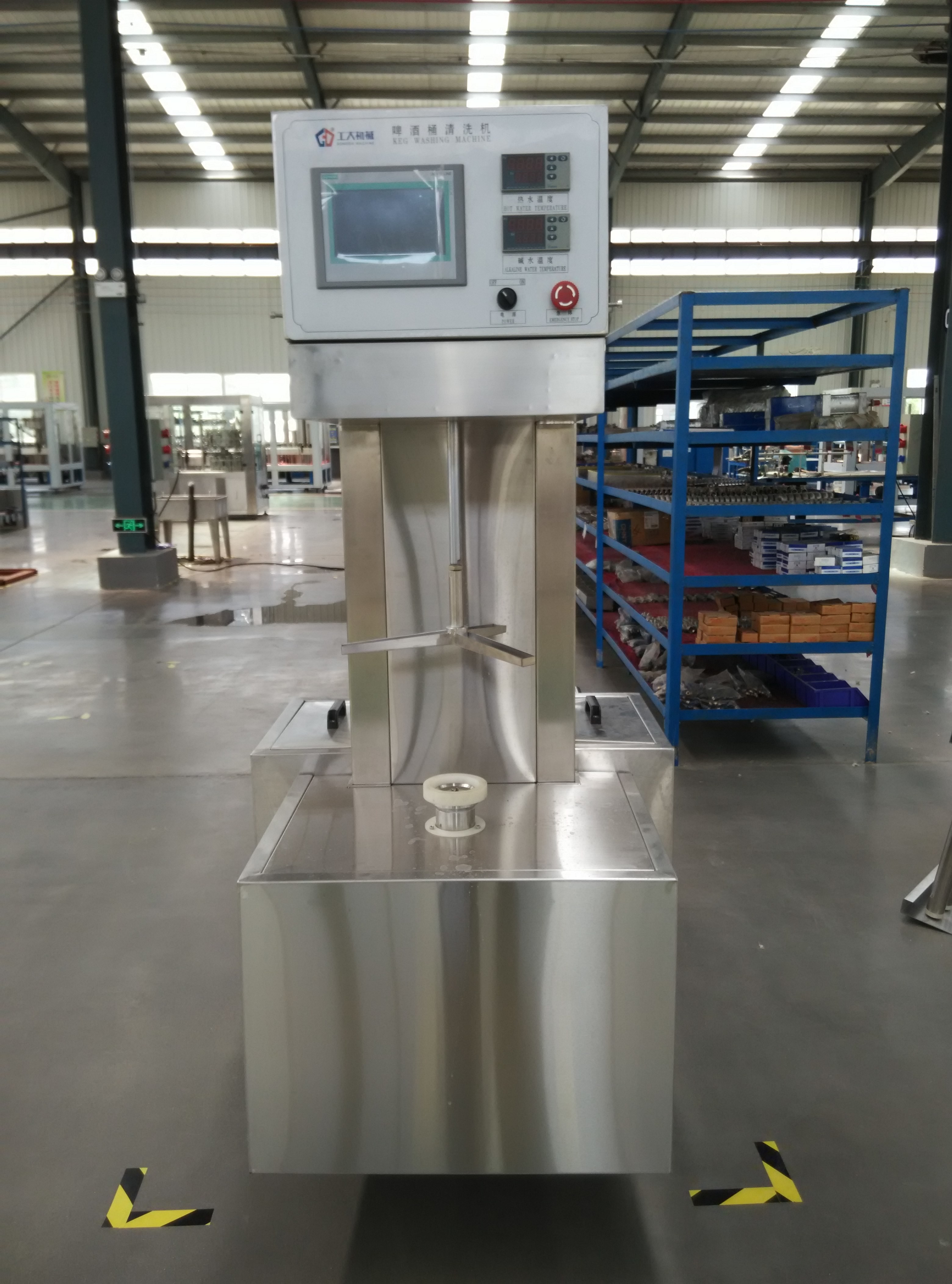

This machine is made up of stander , electric control casing , solenoid valve , pneumatic element , air blast system and water flow system etc. parts . There are two kinds of cleaning heads , one is used for cleaning stainless steel kegs , the other one is used for cleaning plastic kegs

3．Working routine :

3.1  The control unit of this machine uses theLS Programmable controller and WEINVIEW human-computer interface with time sequencing . The working routine and time have been set . Clients can adjust time parameter according to different needs . Not need one part of the working routine , please adjust relevant time parameter to 0 . Notice part 7 to know more about adjusting time parameter .

3.2  Stainless steel keg washer setting :

Compress→ →clean with clean water→ air blast →clean with hot alkaline

water→ air blast(recycle to alkaline water tank)→clean with hot water→ air blast(recycle to clean water tank)→steam sterilize→ steam pressure maintaining→ clean with sterile water→ air blast to hot water tank →CO2 preparation→ cylinder return

 Compress→ →clean with clean water→ air blast →clean with hot alkaline

water→ air blast(recycle to alkaline water tank)→clean with hot water→ air blast(recycle to clean water tank)→ clean with sterile water→ air blast to hot water tank →CO2 preparation→ cylinder return
