High Capacity Beer Filling Machine Brewery Bottling Line Power AC50Hz 220V

CGET, an internationally-known brand for brewery equipment and package line.

High Capacity Beer Filling Machine Brewery Bottling Line Power AC50Hz 220V

Characteristics :

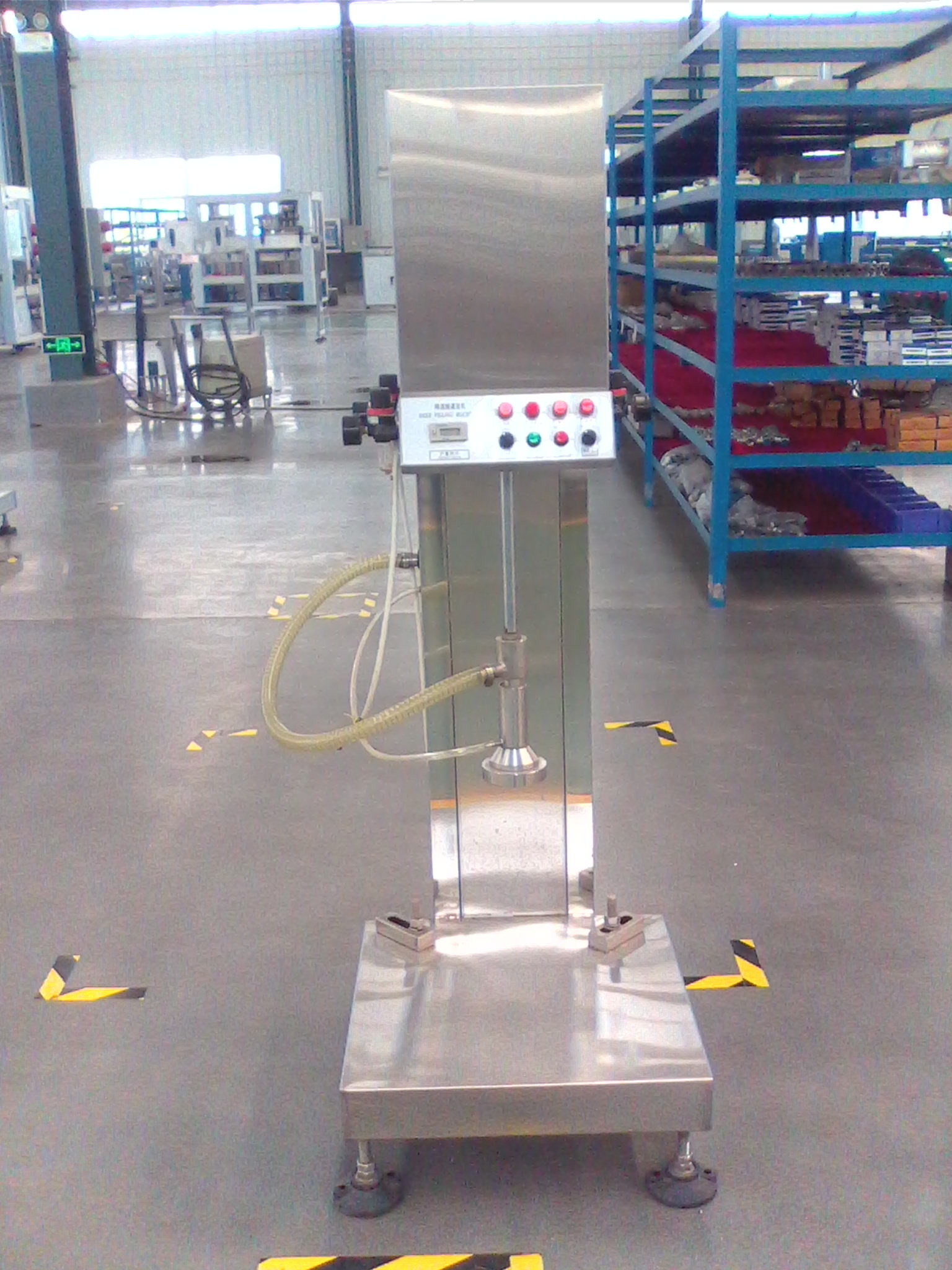

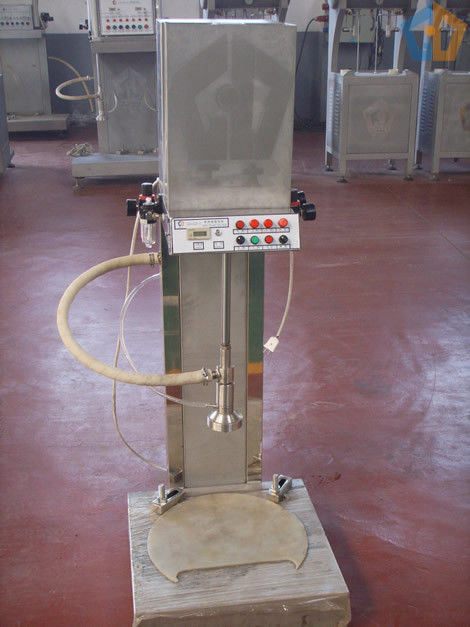

This machine is specially used for filling different kinds of beer refreshing vessel(including stainless steel, plastic refreshing keg and draught beer keg) and it can finish the filling process automatically.

The machine control unit adopts Logo of small field-programmable devices from Germany's Siemens and can experience full-process control. All control parameters (time value) can be adjusted without stopping.

main dimension and technical requirements

1.1 main dimension

Worktable size 500mm x 500mm

Worktable height 120mm

Machine outside measurement 500mm x575mm x1500mm

Piston maximum stroke 300mm

Net weight 106kg

Filling method 30~70keg/h

Keg size diameter: ф250～500mm

Height: 410～650mm

Technical parameters

Beer pressure 0.2 ---- 0.3Mpa

Air pressure 0.6 ---- 0.8Mpa

Co₂ pressure 0.2 ---- 0.3Mpa

Power AC50Hz 220V

Main structure :

This machine includes mainly machine frame, electric control system, Solenoid valves, pneumatic component and beer recycling system. .


Working routine

The machine control unit adopts Logo of small field-programmable devices from Germany's Siemens and can experience full-process control. All control parameters (time value) can be adjusted without stopping.

3.2 The working routine: start→CO₂ pressure boosting →filling →counting
