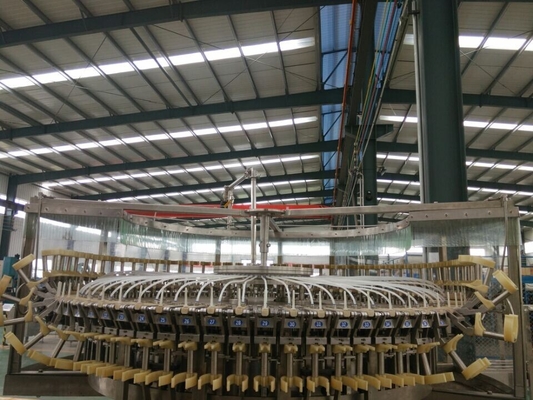

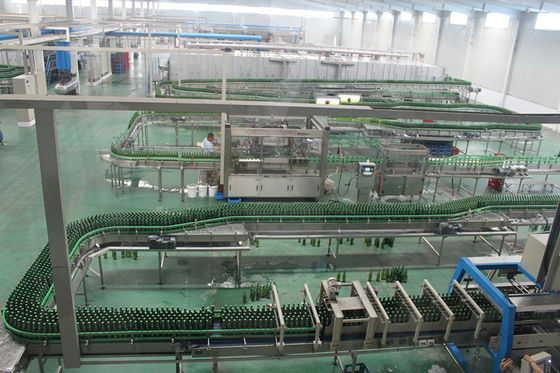

20000 BPH Electric Craft Beer Bottle Filling Machine For Beer Or Beverage

A.- Brewery equipment

A1.- Malt Mill 300-500 kg / h

A2.- Hot Liquor Tank of 2,500 liters

A3.- Brewhouse of 1.000-1.150 Liters Combitank / Heating by fire direct in enclosed chamber Type: Two Tank / Three Vessel European style elaboration process Vessel: Mash Tun / Kettle + Combitank: Lauter Tun and Whirpool below

A3.1.- Mash Tun / Kettle - Minimum workload of 1,400 liters +% head space. - Heating by direct fire in enclosed chamber, (not include burner). Include a description of the main features, insulation, etc. - Type of agitation: VFD variable speed gearmotor with smooth agitation for Mash temperature homogenization. - Hidrator with 4 "Triclamp port and connection with 4" butterfly valve - Total drainage port - Port of partial drainage in bottom, equal to a clean exit port of Whirpool - Manhole with a minimum diameter of 400 mm - Glass liquid level of sanitary type in liters / with connection to CIP circuit - 360 ° CIP 2 spraying ball - 6" Venting port and steam condensation pipe - Thermowell with temperature probe PT-100

A3.2.- Combitank: Lauter Tun up / Buffer Tank Whirpool below -

Heating: NO -

Insulation: PU 50 mm / Rock wool; TH = 50mm Specifications of the lauter tun: -

Minimum working volume of the Lauter Tun 900 liters +% head space - With lifting lug on top of tank. - Manhole in top of 400 mm minimum / without shadows to CIP. -

Rectangular side manhole of 530x430 mm to extract the spent grain and the false bottom sieve.

With removable guide plate under the exit door. -

False filter bottom filter easily removable triangular wire or laser cut with openings from 0.7 to 0.9 mm, with support on the bottom and handles embedded for easy removal and cleaning. -

Type of agitation: variable speed gearmotor by VFD and rake with blades, reversible rotation and extendable plate to push spent grain out. -

Port of entry of the Mash above the level of the false bottom - Port of recirculation of the wort of low absorption of oxygen (lateral or superior). -

Top irrigation ring, perforated or with spraying nebulizers -

Ring of collection of must with 4 drainages in the background -

Grant with glass peephole or liquid level for observation of the pressure balance control between the lauter and the wort pump, with CIP. -

Thermowell with temperature probe PT-100 -

2 x 360 ° CIP spraying ball
