120 Bbl Large Beer Fermenter Turnkey Brewery Line Jacketed Conical Fermenter

120 bbl Large Beer Fermenter Turnkey Brewery Line Jacketed Conical Fermenter

CGET, over 20 years brewery equipment manufacturing history.

big large brewery turnkey brewery complete brewery whole plant

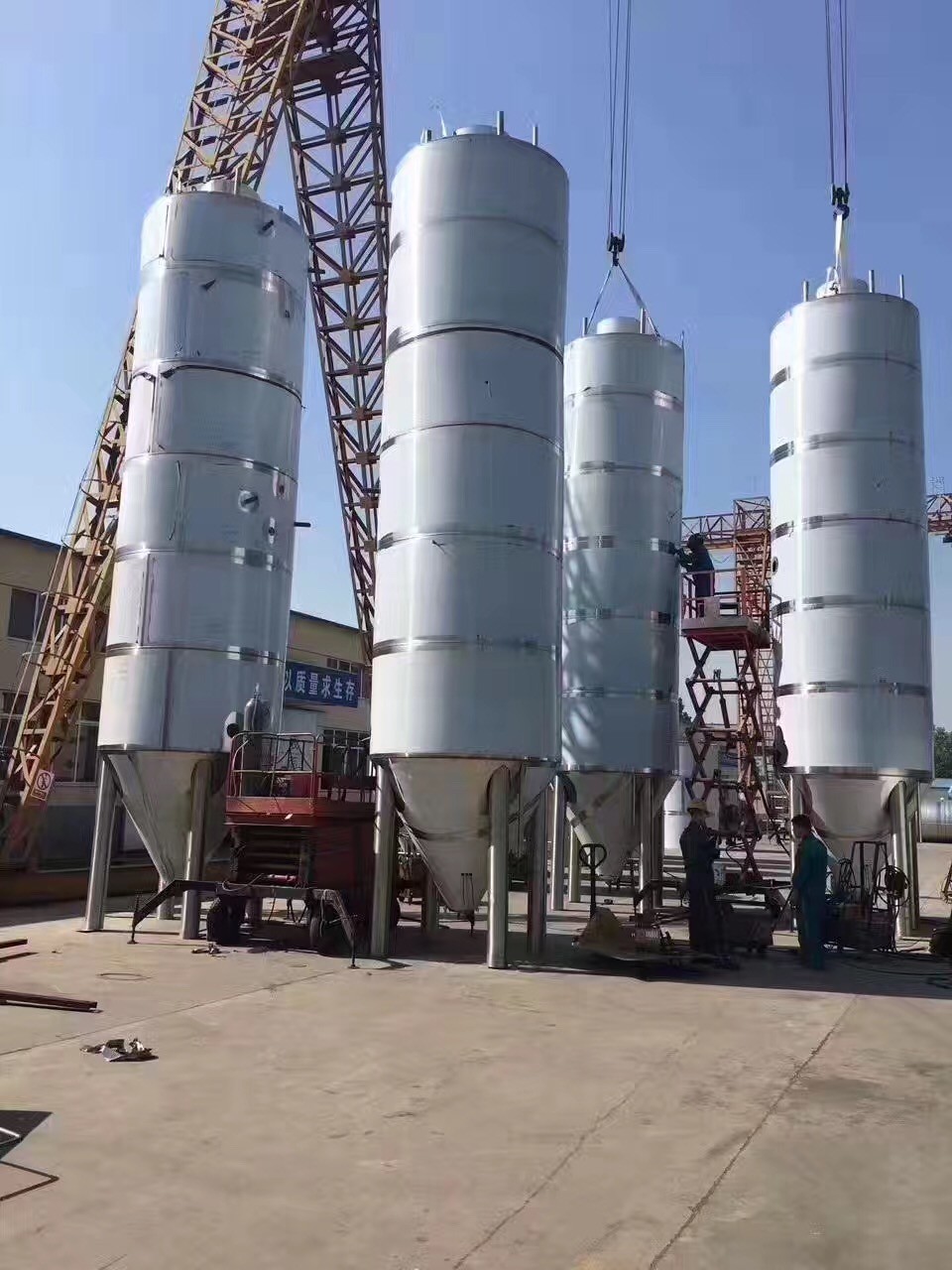

120bbl fermenter

jacketed

conical fermenter

stainless steel

Detailed specifications:

1. Exterior of tank 2B Plate, interior of tank Mechanical polish, inner body polishing ratio ≦0.6μm;

2. Design pressure 30 psi , using pressure:15psi

3. Interior shell: 304 stainless steel, thickness 3mm; Exterior shell thickness 2mm;

4. Effective volume: 120bbl;

5. Racking Arm and discharge port with butterfly valve and fittings;

6. Side manhole; With an extra top manway.

7. Dual zone dimple cooling jacket with glycol inlet and outlet;

8. Polyurethane insulation thickness 80mm

9. CIP arm and spray ball

10. Relief valve, pressure regulating valve

11. Pressure gauge & Thermometer & Sample valve.

12. Four legs with brace and adjustable bolt;

13. With necessary fittings and valves

For details, please see tank drawing.

13. TIG welding with inert gas ARGON 100% -

14. All the pipes and pieces in direct contact with the product will be SUS304 stainless steel sanitary grade food. -

15. All connections between pipes and tanks will be Tri clamp
