Features

Specifications

Type: Filling Machine

Condition: New

Application: Beverage, Chemical, Commodity,

Packaging Type: Barrel, Bottles, Cans, Jars, Tins

Automatic Grade: Automatic

Driven Type: Pneumatic+electric

Voltage:: AC220V Or AC380V

Power: 3.5Kw.

Material: SS 304 And Alloy

Filling Volume:: 0-1000ml,5000ml

Warranty: 12 Months

Highlight:

bottle production line

bottling production line

Basic Infomation

Place of Origin: China

Brand Name: GD

Certification: CE, UL,ISO

Model Number: GD

Payment & Shipping Terms

Packaging Details: iron frame /plate

Delivery Time: 40-50 working days

Payment Terms: TT

Supply Ability: 20 sets per month

Gallery

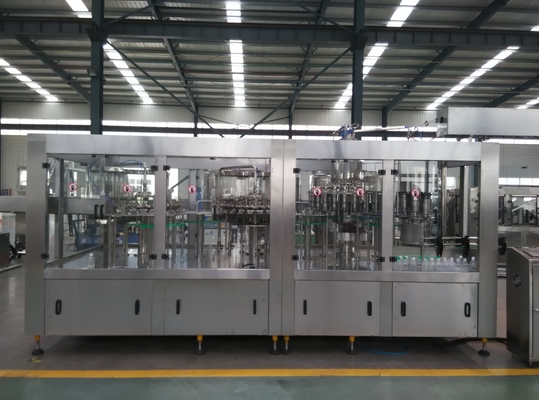

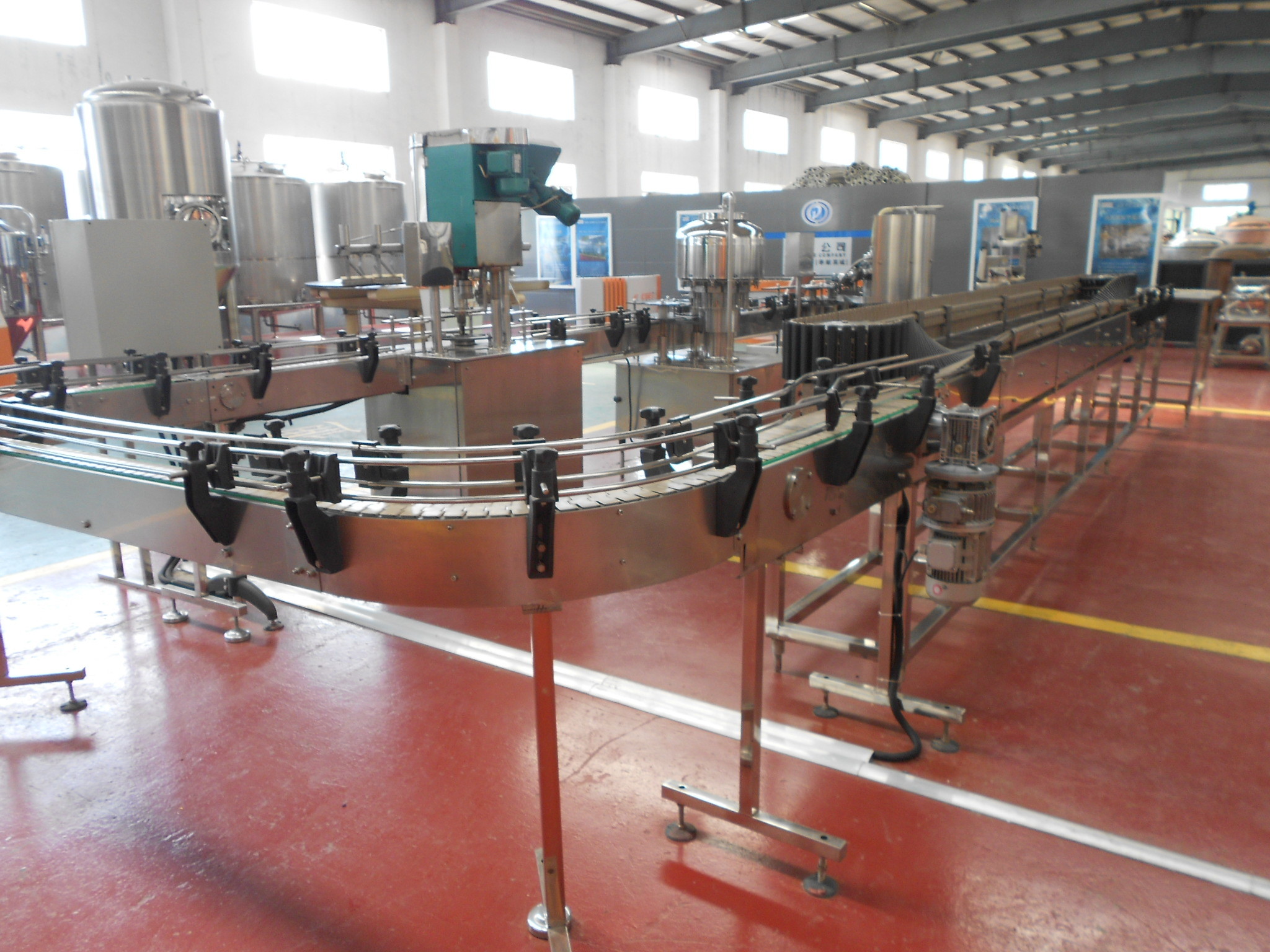

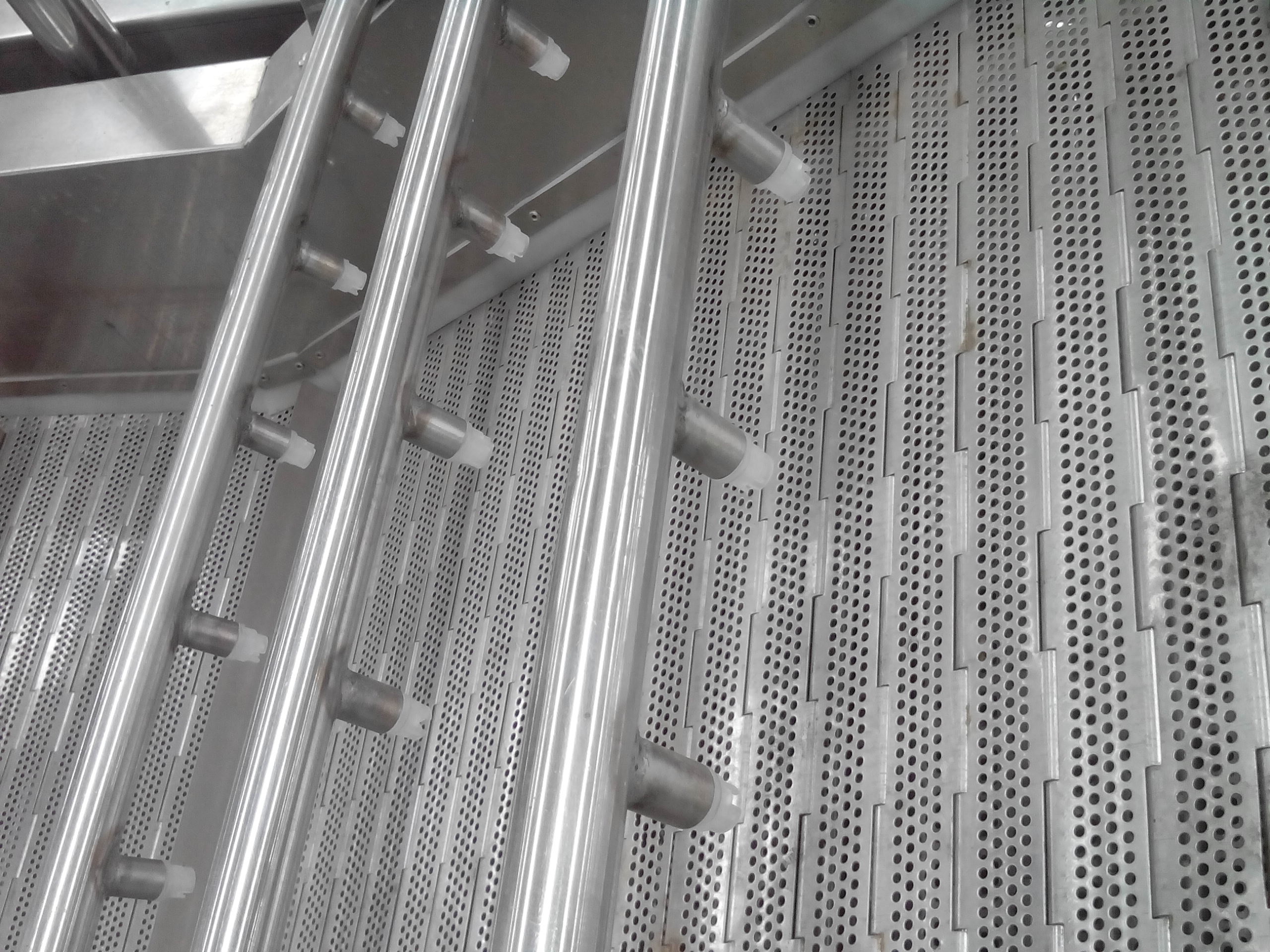

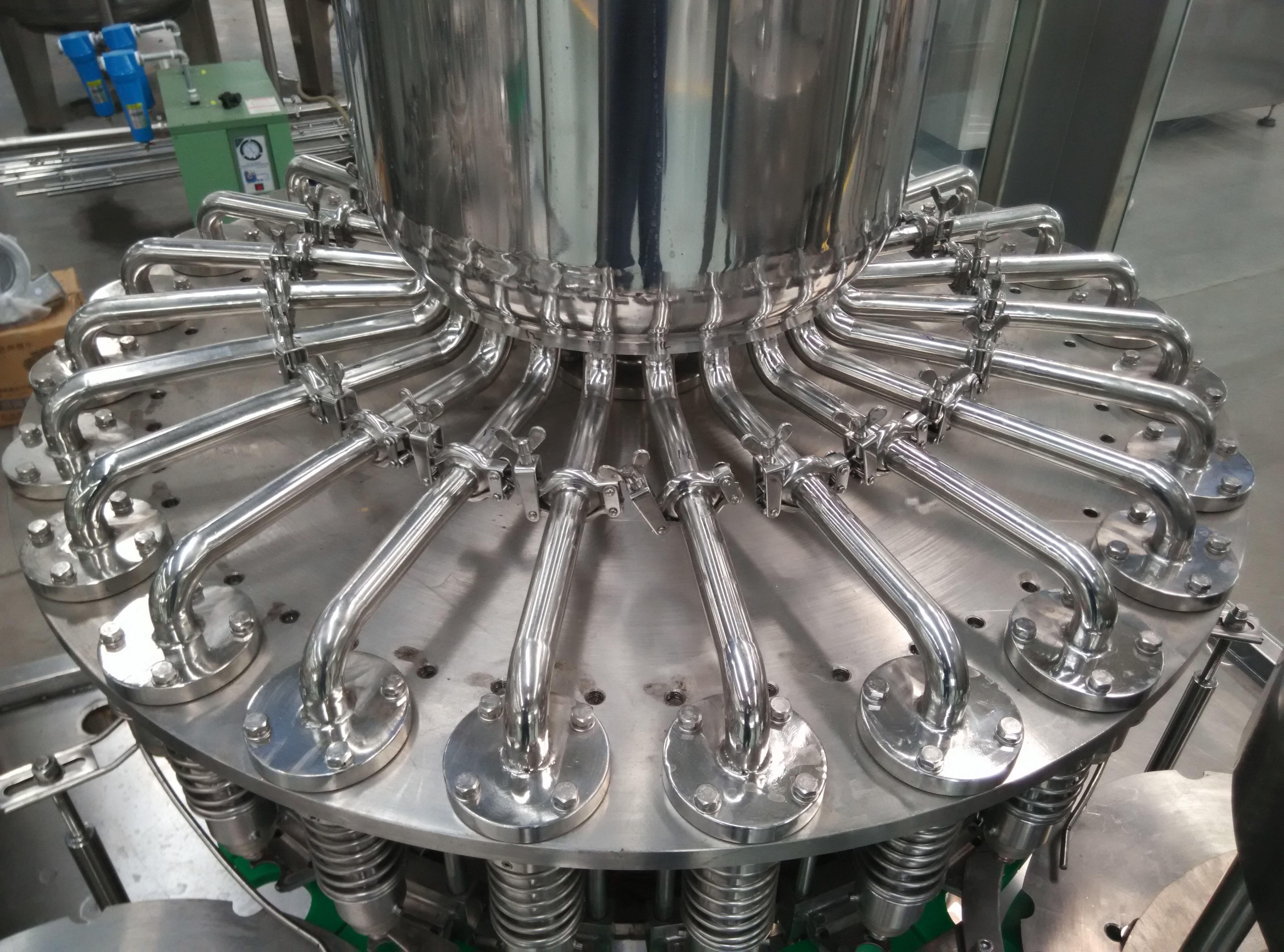

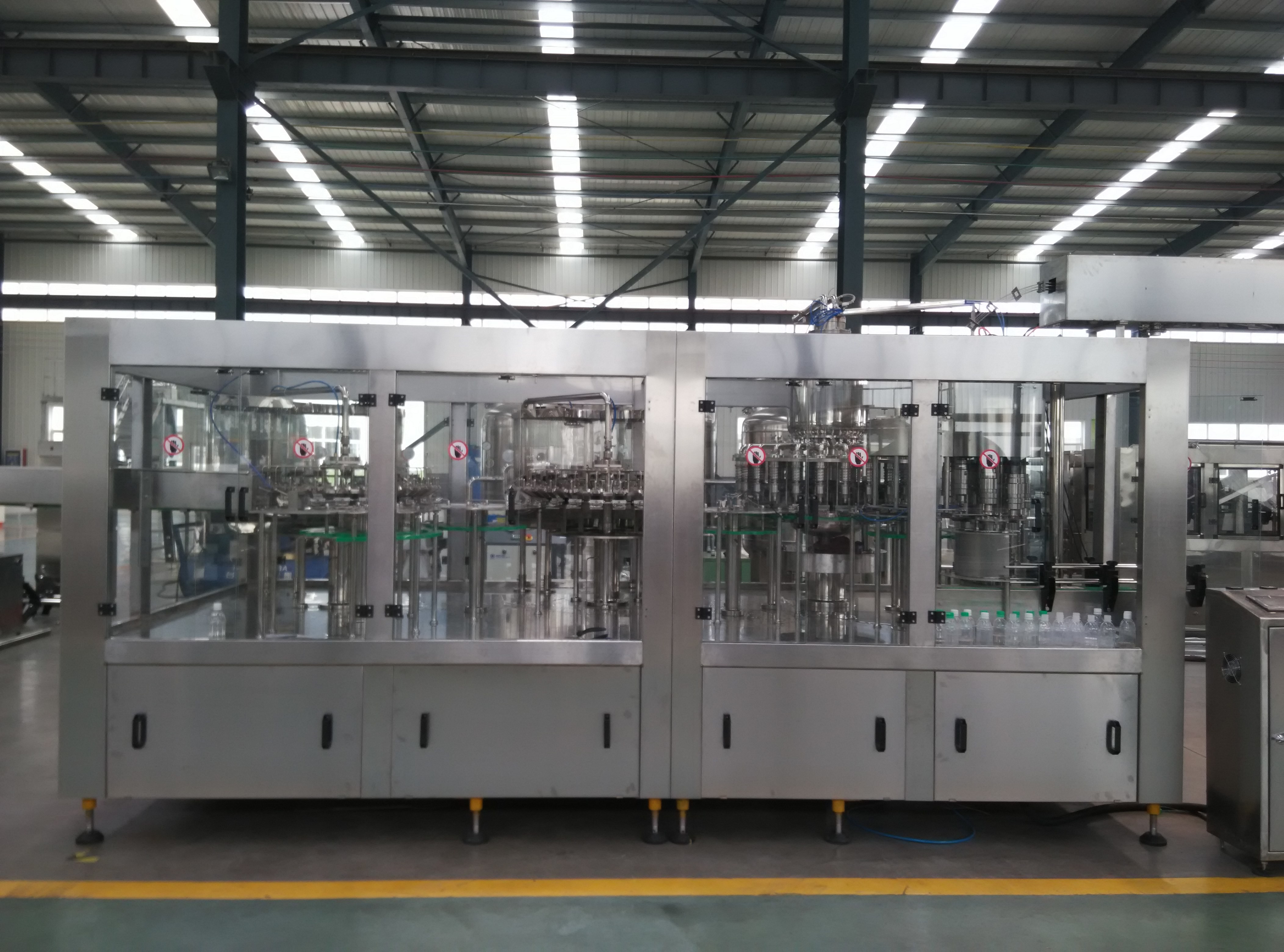

Mango / Apple Juice Filling Machine Beverage Bottling Equipment AC220V Or AC380V

Product Description

Mango / Apple Juice Filling Machine Beverage Bottling Equipment AC220V Or AC380V

Suitable as an economic equipment of basic technology but of constructive quality and professional design, that can be assembled easily by means of the labeling of its components and once assembled and connected it is plug and play, to be operated with ease in the brewing and CIP cleaning processes.

Quotation

Name		Type	Power	Size (mm)	Quantity
Brick Carton Filling Machine		GD-ABF-3600	35kw	550020004380	1
U-straw applicator			4.5kw	17408501145	1
Note	(1) The above quotation is on EXW Basis. (2) Shipping port: Qingdao port, China. (3) Payment: 30%TT before production, 70%TT before shipment. (4) The period of validity is: 30 days. (5) Quality guarantee date: one year. (6) After sales service: We guarantee the machines' quality for one year about the key components. We also provide some spare parts for the quick-wear parts. If there's any quality problem in the machines, we are in charge of solving the problem.

Main technical parameters

1．3600 packets/hour Aseptic Brick Shape Carton Filling Machine

Main imported elements of the machine

No.	Name	Supplier	Origin
1	PLC	Mitsubishi	Japan
2	Touching screen	PWS6A00T-P	Japan
3	Electricity switch	MOELLER	French
4	Control valve	BURKERT	Germany
5	sensor	SICK	Germany
6	dynamo	ABB	Sweden
7	Water pump	CALPEDA	Italy
8	Pneumatic control parts	FESTO,CAMOZZI	Germany
9	XMTG	OMRON	Japan

Main Technical Parameters:

Type	BH3600
Produce Ability	3600Packets/Hour
Capacity	250ML&200ML
Form	Aseptic Brick Shape Carton
Shelf Life	9-12months
Working Air Pressure	≥0.6MPa
Total Power	35Kw
Measurement	5500mmx2000mmx4380mm
Weight	3300Kg
Power Source	380V±10 %( 3φ) 50/60Hz
Total Power	30Kw
Air usage amount	500±100L per sec(0.6～0.7Mpa)
Steam usage amount	4.5kg per hr(130±5℃,0.17±0.03Mpa)
Purified water usage amount	15L per sec(0.3～0.45Mpa,below 20℃)
H2O2 usage amount	0.2per 8 hrS(density:35％)
Control system	PLC
Content temperature	15℃～25℃
Content viscosity	Below 30CP
Printing equipment	Ink Jet Printer
Conveyer Belt	Chain
Connection dimension	2200mm(W)x 3500mm(H)
Type of connection and caliber	Thread entrance, 1/2
Connecting pressure	50～150±10Kpa
Container spec	106X41X63mm
Temperature of filling room	19.4～25℃
Operating Staff Needed	1

2．U-STRAW APPLICATOR

Main Technical Parameters:

Type	BH-1
Produce ability	8000 pcs/h
Power supply	380V±10 %( 3φ) 50/60Hz
Power	4.5 kw
Air supply	0.4~0.6Mpa
Weight	300 kg
Measurement	1740(L) x850(W) x1145(H) mm

Mango / Apple Juice Filling Machine Beverage Bottling Equipment AC220V Or AC380V 0
