Name: 3 In 1 Brewery Production Line Packaged Drinking Water Filling Machine 10000 Bph
Brand: GD
SKU: GD-GZX-5000
Rating: 4.7 (147 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Type:: Beer Canning Line

Application: Beer Or Beverage

Packaging Type: Bottle

Driven Type: Electric

After-sales Service Provided: Engineers Available To Service Machinery Overseas

Manhole:: Custom-made

Warranty: 12 Months

Highlight:

bottle production line

brewery production line

Basic Infomation

Place of Origin: Shandong, China (Mainland)

Brand Name: GD

Certification: CE UL ISO

Model Number: GD-GZX-5000

Payment & Shipping Terms

Packaging Details: steel frame for sea container

Delivery Time: 30 Work Days

Payment Terms: L/C, T/T

Supply Ability: 20 sets per month

Gallery

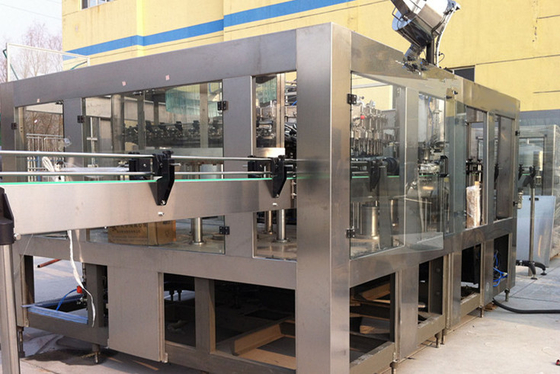

3 In 1 Brewery Production Line Packaged Drinking Water Filling Machine 10000 Bph

Product Description

3 In 1 Brewery Production Line Packaged Drinking Water Filling Machine 10000 Bph

1. Incoterm FOB General Constructive Specifications -

2. SUS304 stainless steel with quality certificate -

3. Indoor tank TH = preferred 3 mm / minimum 2.5 mm - Tank exterior TH = preferred 2 mm / minimum 1.5 mm

4. Brewhuse Inner surface polished minimum to RA = <0.8 um / without dead corner -

5. PV Unitank Inner surface polished minimum to RA = <0.4 um / without dead corner -

6. Exterior Surface finish satin and fully welded.

Suitable as an economic equipment of basic technology but of constructive quality and professional design, that can be assembled easily by means of the labeling of its components and once assembled and connected it is plug and play, to be operated with ease in the brewing and CIP cleaning processes.

CGET, an internationally-known brand for brewery equipment with 20 year history

Equipment list

Quotation:

NO.	Name	Model	Qty	Capacity

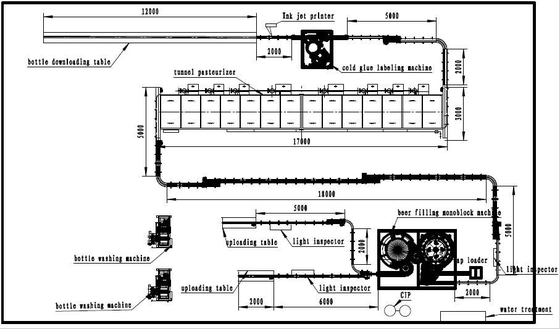

Beer Bottling Line
1	Bottle Washer(with changeable part for 630ml bottle)	GD-XP-10000	1	10000BPH
2	Bottle Filler-Capper(with cap elevator and changeable part for 630ml bottle)	GD-GF-40/10	1	10000BPH
3	Light Inspector	GD-DJ	1	100000BPH
4	Tunnel Pasteurizer	GD-SJ-10000	1	10000BPH
5	Bottle Dryer	GD-FG-10000	1	10000BPH
6	Adhesive Labeler	GD-BGJ-03	1	10000BPH
7	Ink Jet Printer	GD-PM-10000	1	10000BPH
8	Carton Packer	GD-ZX	1	15-25 boxes/min

3 In 1 Brewery Production Line Packaged Drinking Water Filling Machine 10000 Bph 0
