20 Bbl Fermenter Stainless Steel Tank Industrial Beer Brewing Equipment

CGET, a professional manufacturer with over 20 year history

20bbl Fermenter Stainless Steel Tank Industrial Beer Brewing Equipment

CGET, over 20 years brewery equipment manufacturing history.

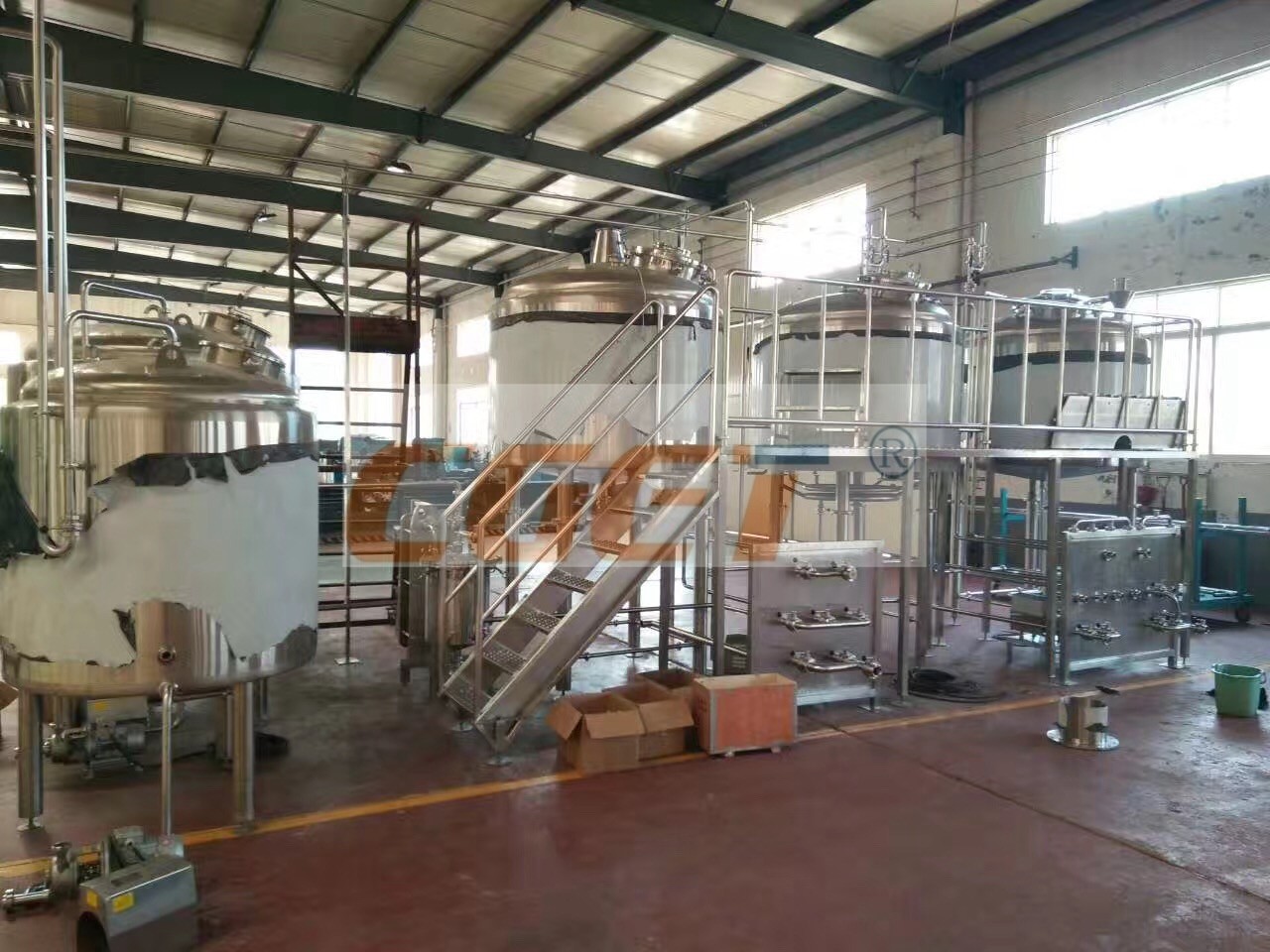

20bbl brewery plant with all accessories

stainless steel tank

microbrewery turnkey brewery complete brewery whole plant, fitted in one 40HQ container

for all size brewpub with all scale fermentation tank, conical tank, pressurized, 3.5bbl, 5bbl, 7bbl, 10bbl, 15bbl, 20bbl, 30bbl.

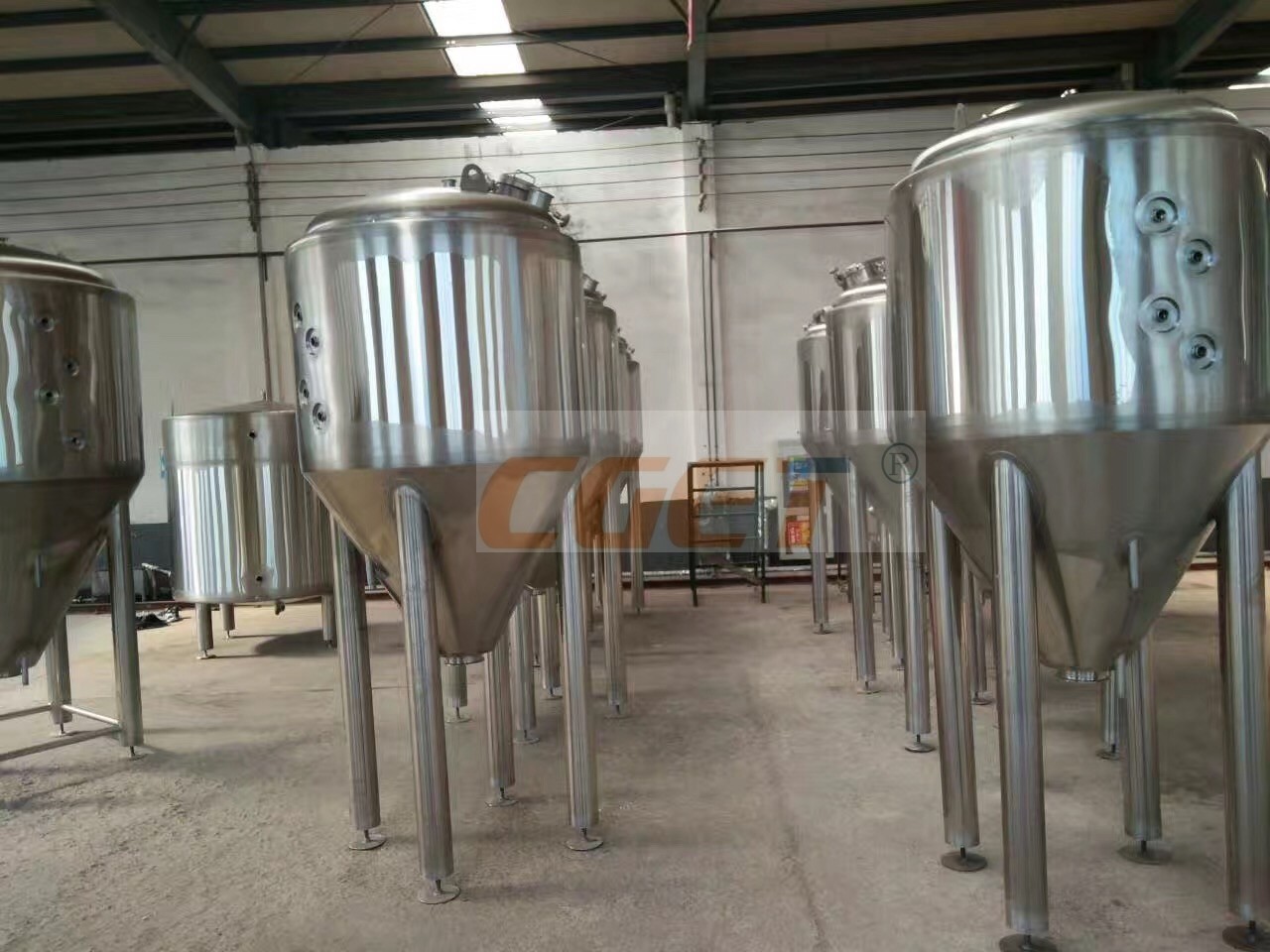

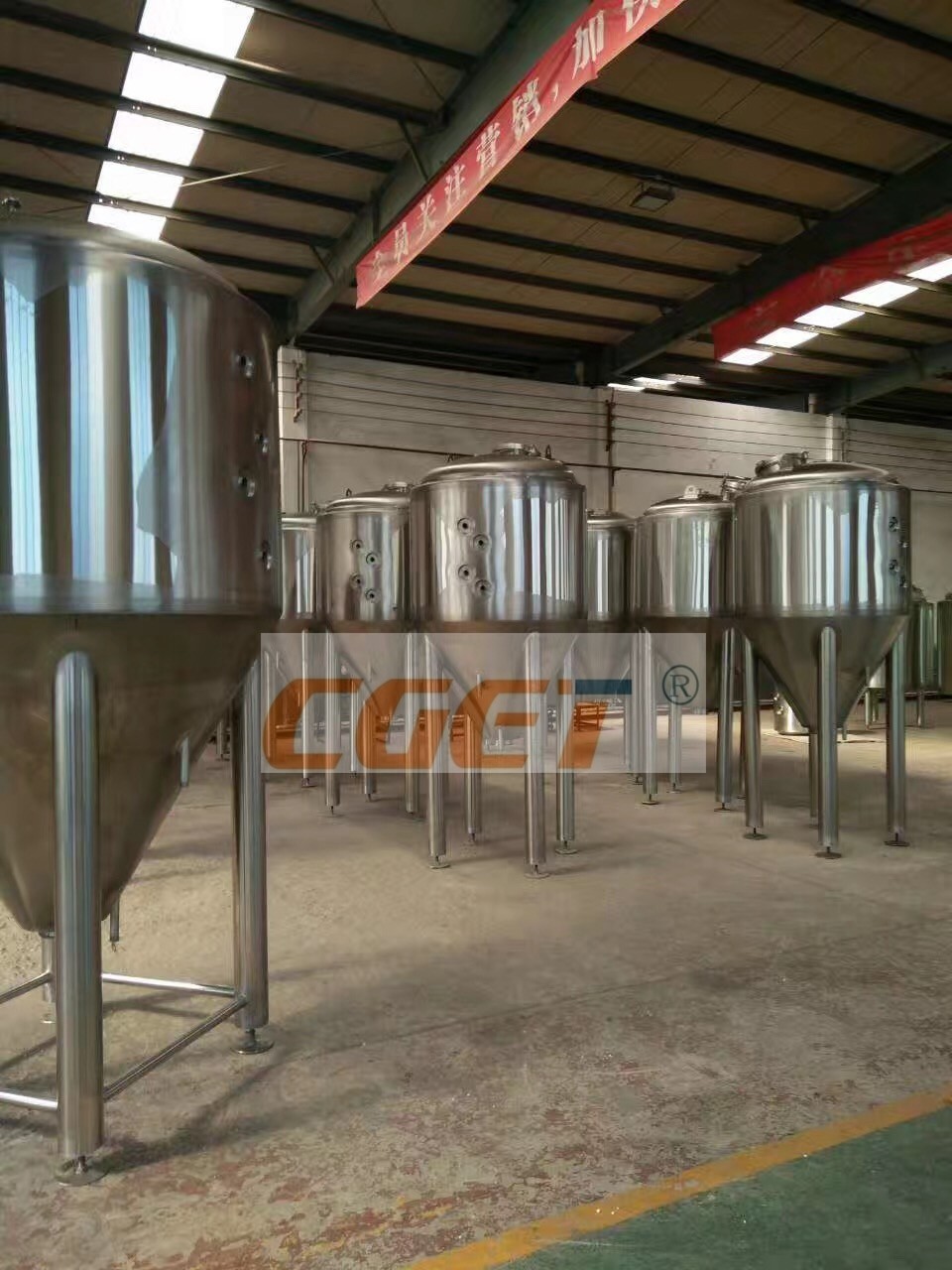

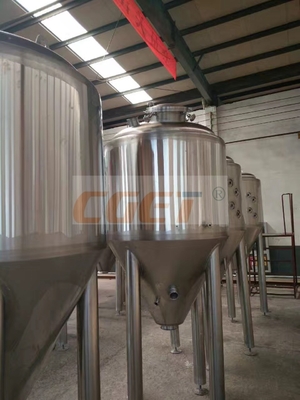

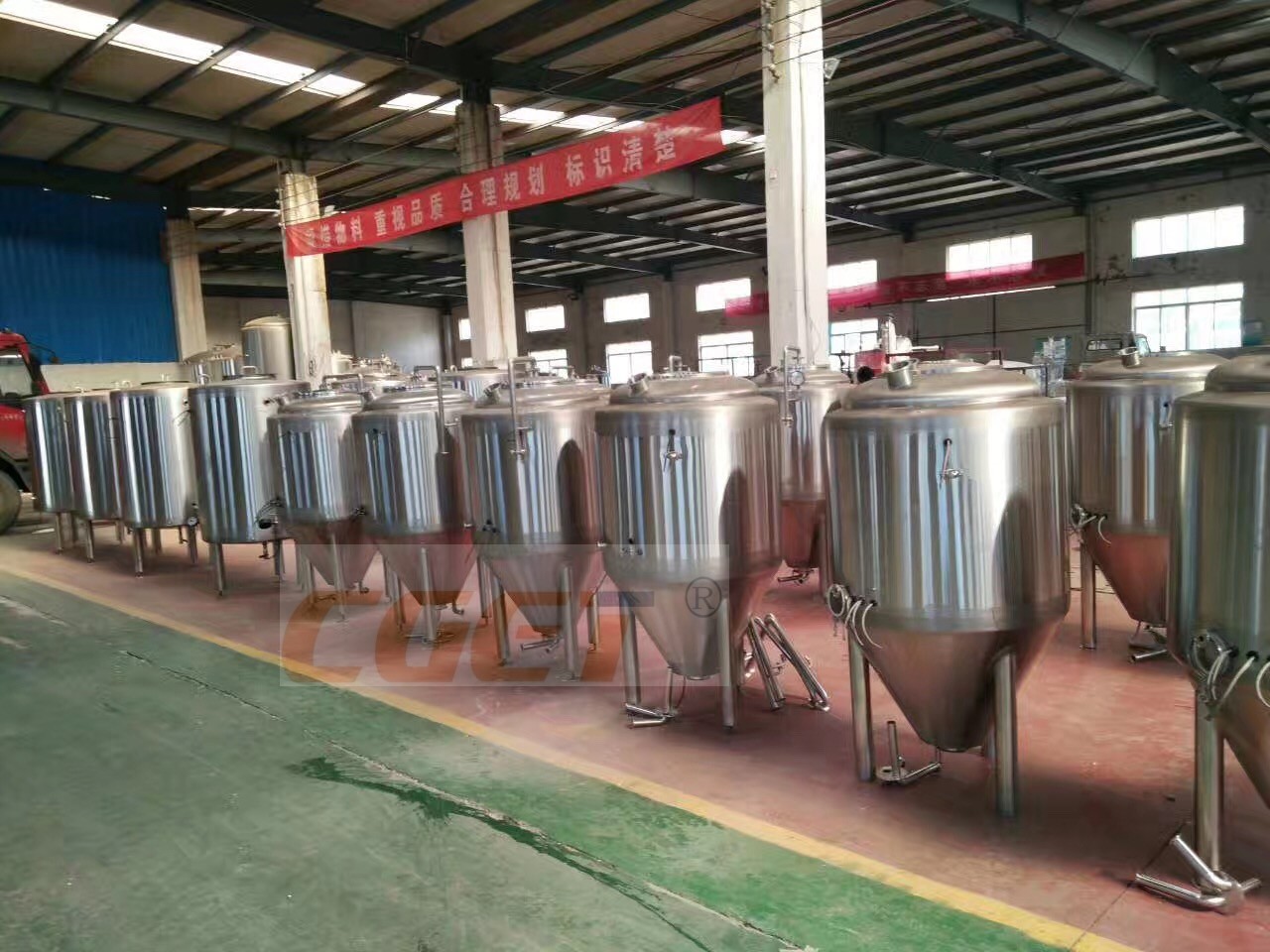

bright beer tank for maturation, jacketed, glycol cooling, stainless steel

A 1000L fermentation tank specification:

1. Total volume: 1300L,effective volume:1160L;

2.  Size Φ1600×2590mm

3.  Heat exchange area: 3.1㎡;

4.  Racking Arm and discharge port with butterfly valve and fittings;

5. PLC control, dimple plate cooling jacket.

6.  Insulation thickness: 80mm; Inner tank thickness: 4mm;

7.  CIP arm and spray ball

8. Release and breath valves

9. Side manway

10. Pressure gauge & Thermometer & Sample valve.

11. Two zone dimple cooling jacket with glycol inlet and outlet;

12. Four legs with brace and adjustable bolt;

13. Interior of tank is mechanical polished, inner body polishing ratio ≦0.6μm. Out plate surface brush finished.

14. With valves and accessories matched.

15. Tank cone angle 60°

16. Hops dosing inlet
