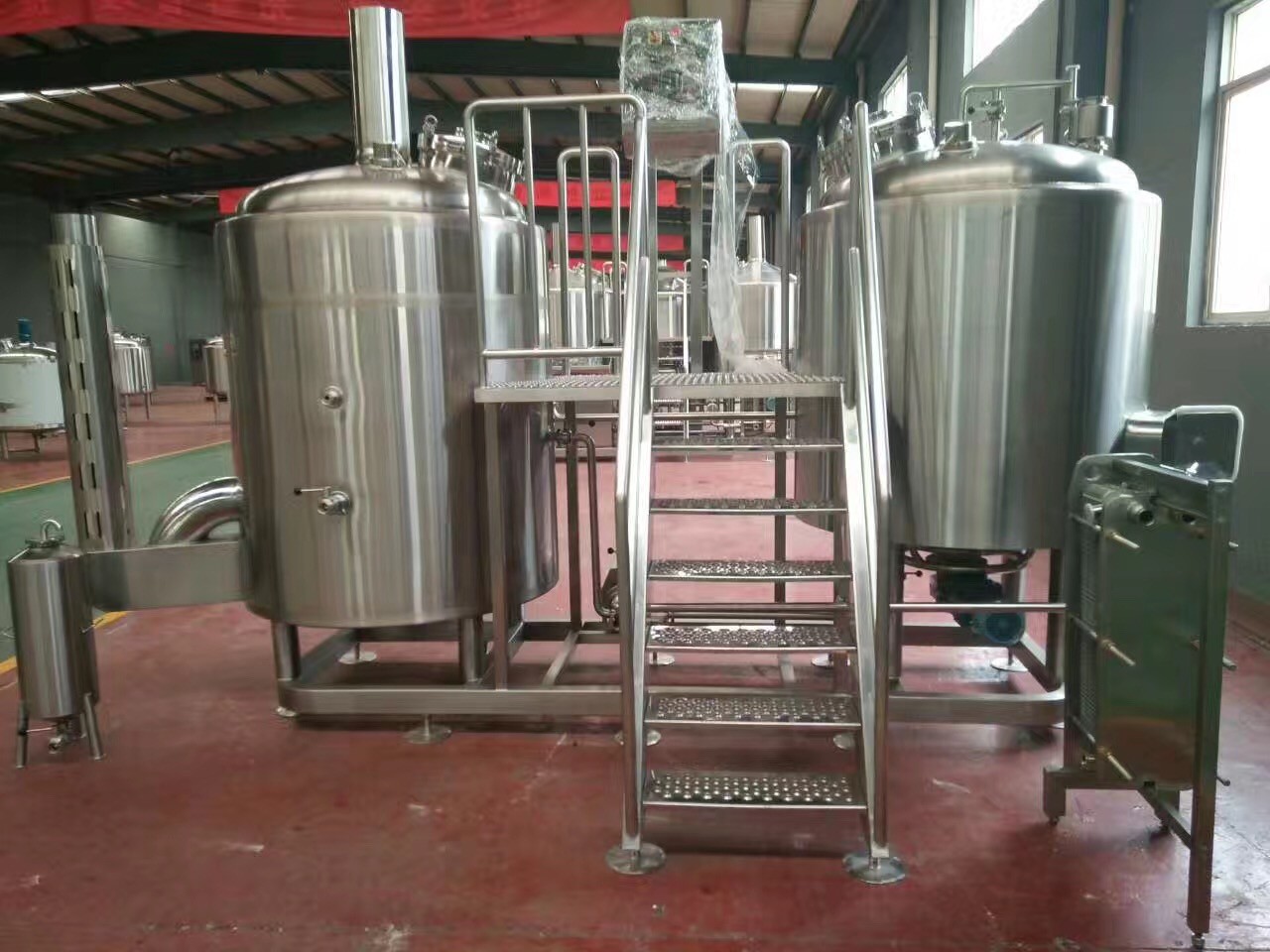

10 Bbl Beer Making Equipment Stainless Steel Home Brewing System 500L Capacity
Mash tun 1.Dished head top head, cone shaped bottom; 2.Dimension:φ1160×2150； 3. Total capacity:740L,effective capacity:500L; 4. Electric heating tube ,power:36kw
5. Thickness of the insulation:80m; 6. Inner tank thickness:2.5mm 7. Outer tank: with drawing plate, weld polishing sand belt; 8. Decorative tube:600m 9. CIP rotatable spray balls 10. Top manhole, φ500mm, with glass sight glass; 11. PT100 temperature probe;
Lauter tun
1. Dished head top head, cone shaped bottom;
2. Wedge wire false bottom, with intense support,, 3. Dimension:φ1160×2150; 4. Total capacity:740L,effective capacity:500L; 5. Mechanical agitation: with frequency conversion, and speed reducer, motor power:0.55kw,speed ratio:1:43; 6. Thickness of the insulation:80mm; 7. Outer tank: with drawing plate, weld polishing sand belt; 8. Decorative tube:600m 9. CIP rotatable spray balls 10. Top manhole, φ500mm, with glass sight glass; 11. PT100 temperature probe; 12. With sparging coil;
|
CGET 100L 200L 300L 500L 1000L 2000L copper beer equipment, widely used in restaurant and bar.super design and best service.The copper beer mash equipment is populared in restaurant and bar more and more.
We are a biggest and professional beer equipment manufacture in China, we also manufacture all types and sizes of fermenting and storage tanks.
Our beer equipment can be designed according to the specific wishes of our customers.
CGET 100L 200L 300L 500L 1000L 2000L copper beer equipment, widely used in restaurant and bar.super design and best service.The copper beer mash equipment is populared in restaurant and bar more and more.
We are a biggest and professional beer equipment manufacture in China, we also manufacture all types and sizes of fermenting and storage tanks.
Our beer equipment can be designed according to the specific wishes of our customers.
