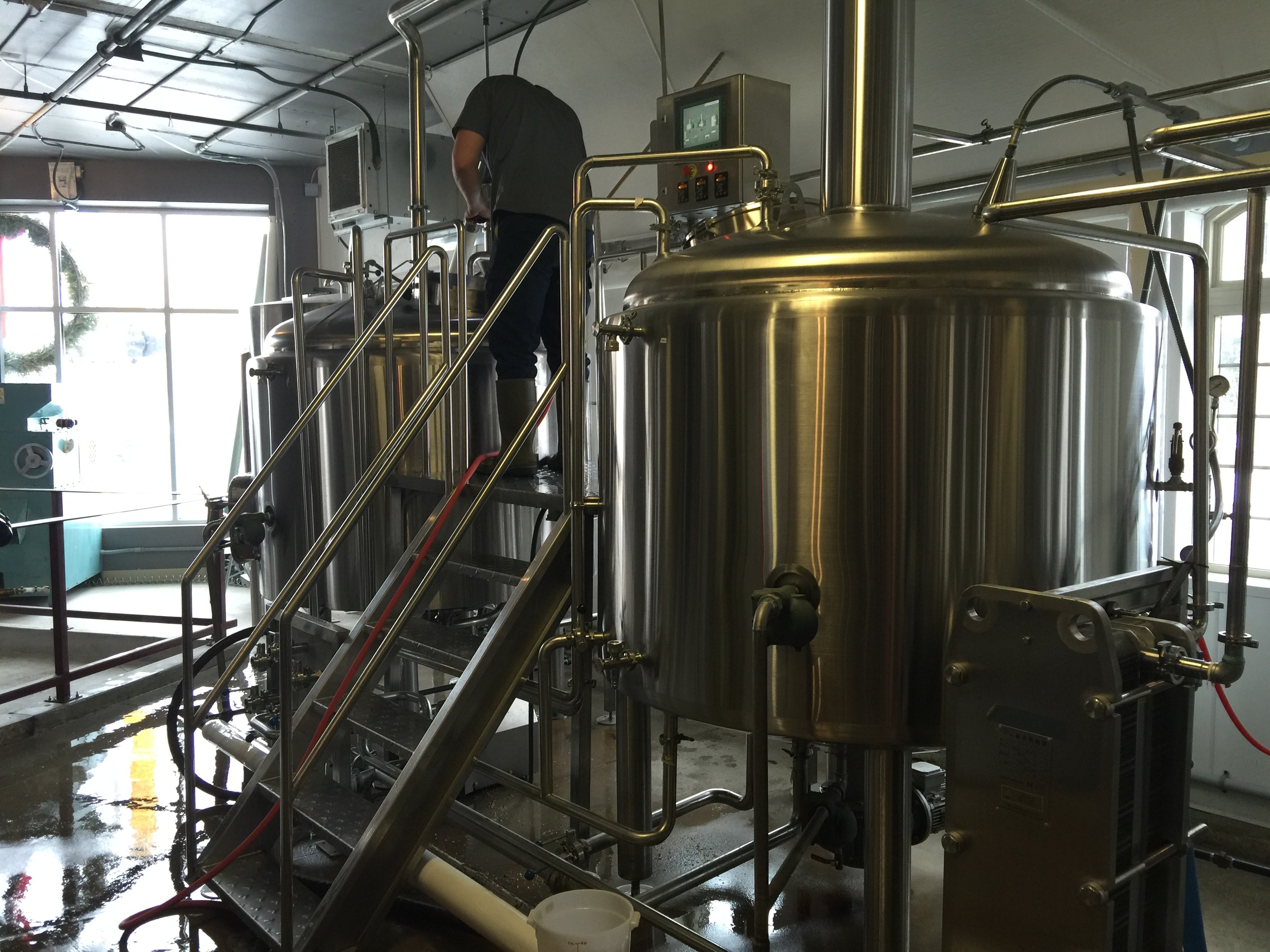

3.5bbl brewery plant with all accessories

microbrewery turnkey brewery complete brewery whole plant, fitted in one 40HQ container

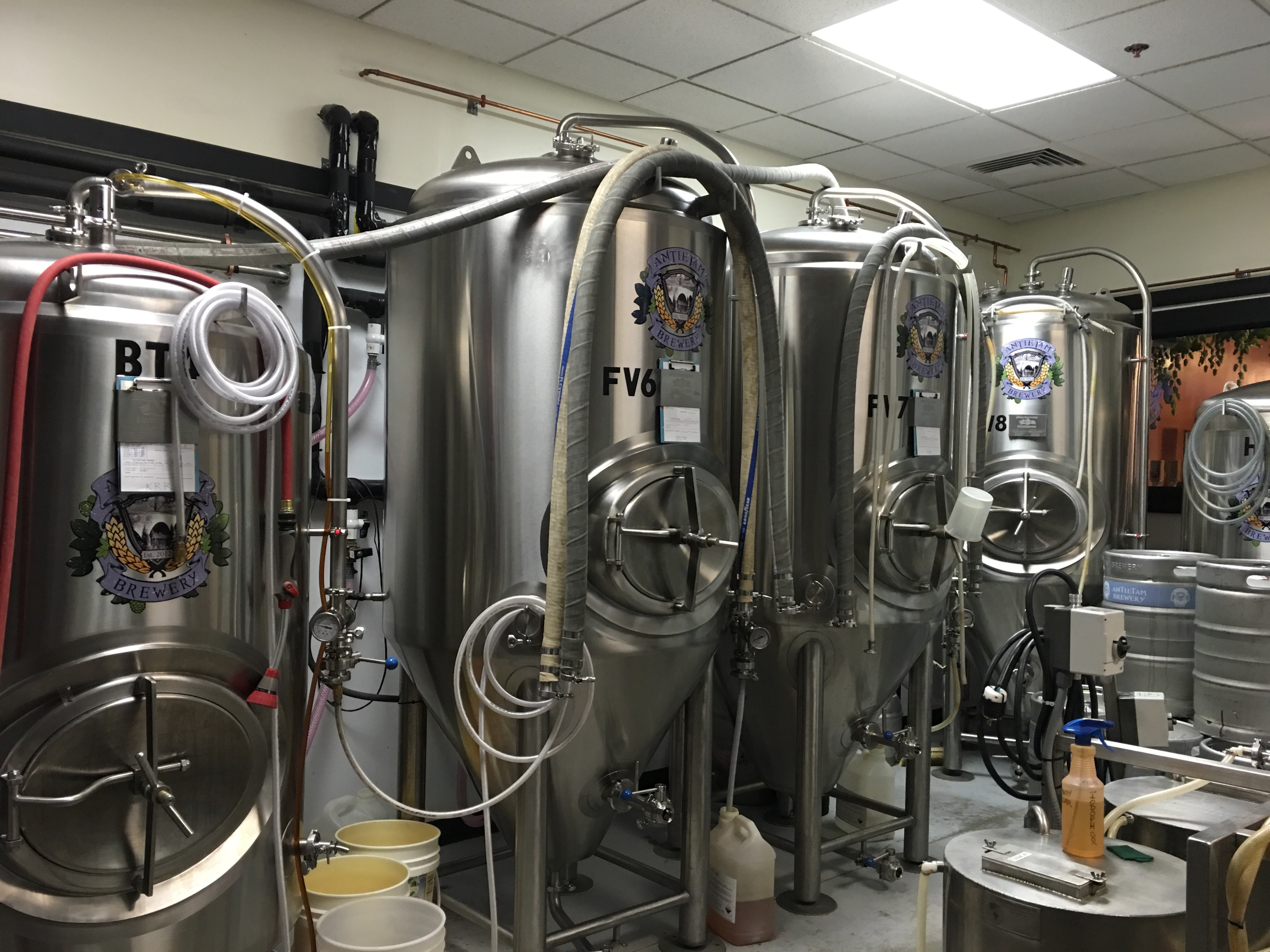

for all size brewpub with all scale fermentation tank, conical tank, pressurized, 3.5bbl, 5bbl, 7bbl, 10bbl, 15bbl, 20bbl, 30bbl.

bright beer tank for maturation, jacketed, glycol cooling, stainless steel

Incoterm FOB General Constructive Specifications - SUS304 stainless steel with quality certificate - Indoor tank TH = preferred 3 mm / minimum 2.5 mm - Tank exterior TH = preferred 2 mm / minimum 1.5 mm

Brewhuse Inner surface polished minimum to RA = <0.8 um / without dead corner - PV Unitank Inner surface polished minimum to RA = <0.4 um / without dead corner - Exterior Surface finish satin and fully welded.

TIG welding with inert gas ARGON 100% - All the pipes and pieces in direct contact with the product will be SUS304 stainless steel sanitary grade food. - All connections between pipes and tanks will be Tri clamp

A5.- Fermenter Unitank of 2,000 liters x 5 units - Minimum net work volume of 2000 liters + 25% minimum free space at the head of the tank. - 60º conical cylinder fermentation tank - Preferred working pressure: 1.5 bar minimum. - Pressure test with water and gas at 3 bar minimum.. - Manhole in top / without shadows to the CIP cleaning. - Interior finish SUS304 2B with internal mechanical polishing of minimum welds of Ra. - 50 mm high density polyurethane insulation minimum. - Maximum dimensions: 1550 mm wide - Independent Cooling jackets around the cylinder and bottom cone with minimun cooling area: 3.5 m2 - Minimum working pressure of the cooling jackets 1.5 bar, minimum pressure test 3 bar. - PRVP valve in Dish head, tared to the maximum working pressure of the tank - Rotating arm for CIP cleaning of the interior, equipped with 360º ball and Butterfly Sanitary Valve. - Rotary arm for pressure control equipped with "tee" for Membrane Pressure Gauge-SS304 (Stainless Steel Diaphragm Gauge), adjustable (spunding) pressure relief valve and final butterfly valve. - Tri clamp Dry Hop Port 4 "in Top with End Cap - Tri Clamp + Sanitary sample valve. - Tri Clamp + Stainless steel sphere thermometer SUS304. - Tri Clamp + Thermowell and temperature probe PTC 100 - Tri Clamp port with carbonation stone + ¼ "Check valve + small ball valve - Rotating racking arm and port on cone with butterfly valve with sliding seal without leakage. - Tri clamp total discharge arm with butterfly valve - Liquid livel indicator with flexible tube and sanitary ball valve between the CIP arm and the total discharge arm of the cone.
