Electrical / Steam Mini Microbrewery Equipment , 3 Phase Brewpub Equipment
professional home microbrewery basic home brewing equipment has been widely used around the world, such as small breweries, hotels, bars, teaching laboratories and leisure field, according to the German Munich pure vinification, divided into "Larger" and "Ale" two series, brewing barley beer, wheat beer, dark beer, green beer and different shades of beer fermentation process at room temperature, to achieve the dream of the brewer.
Technical Characteristics:
1- All AISI-304 Stainless Steel Construction
2- Jacketed & Insulated
3- Dual Zone Dimple Cooling Jacket
4- Dish Top & 60° Conical Bottom
5- 3 Stainless Steel Legs with Leveling Portstype specimen book.

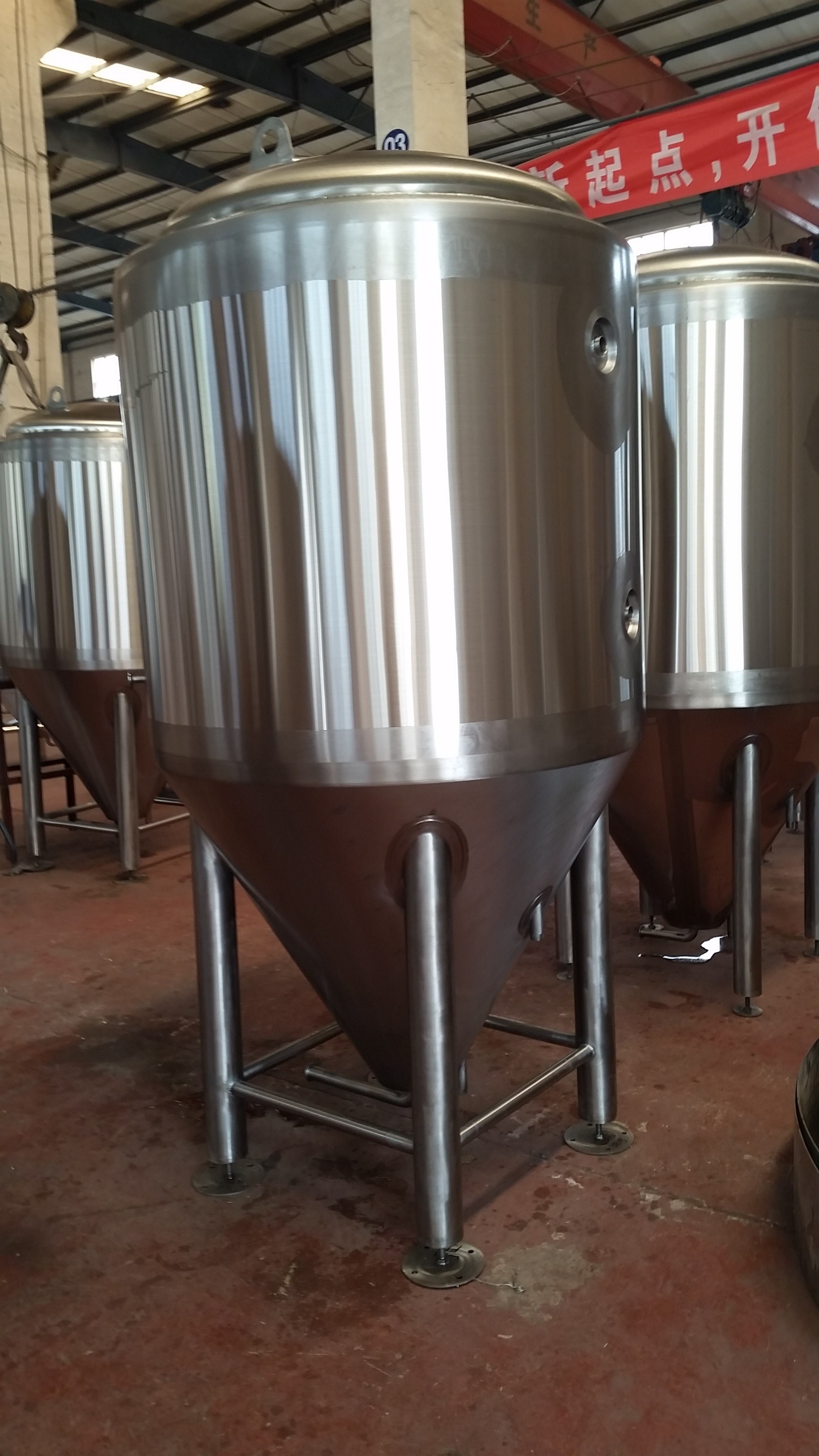

Fermenter Includes:
1- Top Manway or Side Shadow less Manway
2- Racking Port with Tri-Clover Butterfly Valve
3- Discharge Port with Tri-Clover Butterfly Valve
4- 2 Tri-Clover Outlets with Butterfly Valves
5- CIP Arm and Spray Ball/Sample Valve/Safety ValvePressure Gauge
6- Thermowell with Tank Thermometer
PRODUCT FEATURES:
1- Desiging tanks and heating system according to craft, mash tank warming≥10℃/min
2- Energy saving stir structure : large cross-section impeller, 15r/min speed
3- Sieve plate of filter tank includes welding sieve plate and milling sieve plate.
4- Plow knife of filter tank separated to one foot, feet and bow plow knife
5- Wort boiling heat way includes steam jacket, interior heating and exterior heating.
6- Material includes stainless steel 304, 316 and red copper
Whether your in need of additional Fermenters or Bright Tanks for your existing brewery, or need an entire Brewhouse we have you covered. We can have any tank custom built to your specific size and style requirements. Copper Cladding is available on any fermenter, bright tank, mash tun/ brew kettle, lauter tun/ whirlpool etc.
Mash/Lauter tank
1. Material: SUS304
2. Total volume:300L, effective volume:200L;Conical head
3. Thickness of insulating layer:80mm;
4. Inner Body Thickness: 3mm.
5. With cleaning ring, top CIP spray 2 balls
6. TOP mechanical agitation: cycloidal reducer;
7. Milled plate false bottom :4mm
8. The manhole with sight glass
9. Thermowell tube with PT 100 temperature probe;
10. Ribbon polished for the welded place;
11. With Liquid meter
12. Condensate water pipe
13. Three legs with brace and adjustable bolt;
14. Necessary fittings and valves.
Decorative tube
LED Sight light
Digital display gauge
Kettle/ Whirlpool tank
1. Material: SUS304
2. Effective volume:200L;Conical head
3. Electrical coil heating,power 10 kw
4. Condensate water pipe
5. Thickness of insulating layer: 80mm;Rock wool
6. Inner Body Thickness: 3mm.
7. Top two CIP Spray balls
8. Ribbon Polished on welds
9. The manhole with sight glass;
10. Thermowell tube with PT 100 temperature probe;
11. with Liquid meter
12. Three legs with brace and adjustable bolt;
13. With tangent line
14. Necessary fittings and valves.
Decorative tube
LED Sight light
Digital display gauge
More Equipment for your reference
Except the professional home microbrewery basic home brewing equipment , we still make:
professional home microbrewery:50L~200L mini brewery, for home brewery fan, mini brasserie
basic home brewing equipment: 100L~5000L, 5BBL~30BBL, 1hl~50hl or even larger
Fermenters/Unitanks:50L~10000L
Bright beer tanks/Serving tanks/Conditioning tanks: 50L~10000L
Beer selling: Beer selling tanks, beer machine, bar used beer tap/tower
Bottling: manual/semi-auto bottle filling, bottle rinser, bottle washing, capping machine
Kegging: stainless steel beer kegs, dispensers, single-head keg filling&Washing,
double head keg filling&Washing
Application
1. Q: Are you a manufacture?
A: Yes, we’ve been in producing, exporting and installing brewery equipment for 21 years.
2. Q: Have you sold equipment to our country before? Which brewery is it?
A: We have 600+ world-wide customers, covering every continent. With your detailed request of brewery,
we’ll provide you contacts for calling and visiting our successful brewery projects.
3. Q: What kind of equipment should I choose?
A: With knowing your expected beer output & brewery area dimension, we will choose the most appropriate equipment for you.
4. Q: Is customize available?
A: Sure, and that’s the spirit of craft beer brewing: multy-possibilities & being unique.

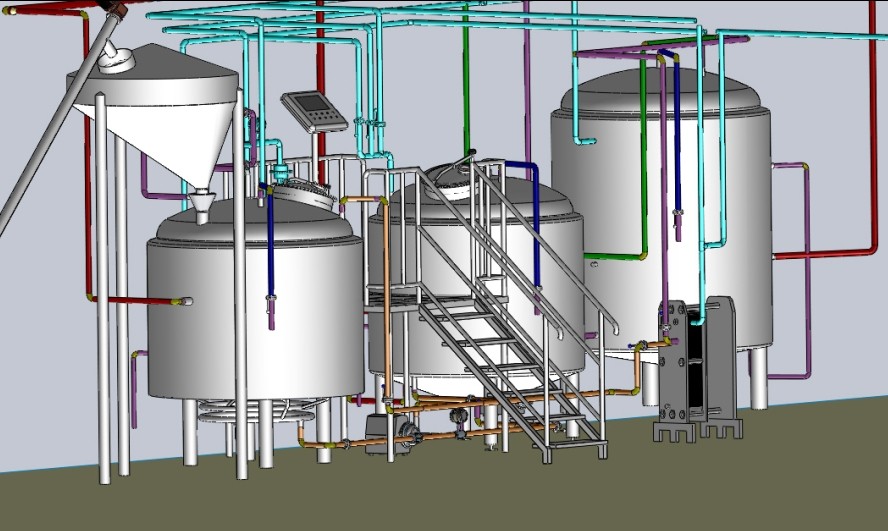

5. Q: Will I get design or solutions for my brewery?
A: Definitely, we design brewery layout for every client. Further more, beer recipes and brewing tutoring if needed.
6. Q: How should I install the brewery?
A: You will get our full and accurate online guidance, including video, picture instruction, etc. If you need a paid installation service, our experienced technicians will handle the whole process as a turnkey project.
7. Q: Is your system manual or automatic?
A: All the electric devices are controlled by PLC system. It’s semi-auto on brewhouse and full-automatic on fermentation. You can read all status of brewing on the screen/gauges.
8. Q: How should I pay?
A: After signing contract, 30% by T/T in advance and balance before shipment.
9. Q: How long does the production take?
A: Generally 30 working days since receipt of down-payment.
10. Q: What about quality warranty?
A: We provide 5 years warranty for main equipment, and 1 years for electric devices.
