Auto Glass Bottled Water Filling And Capping Machine 1 Year Guarantee

One:Introduction:

Newly designed and produced by our Zhongde Group Company

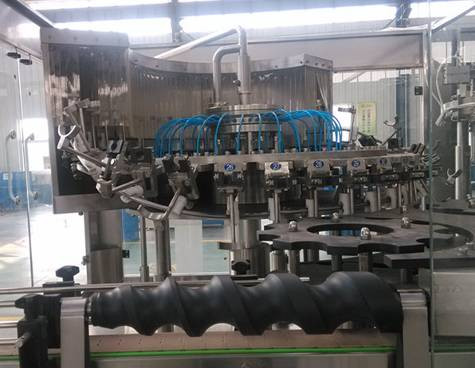

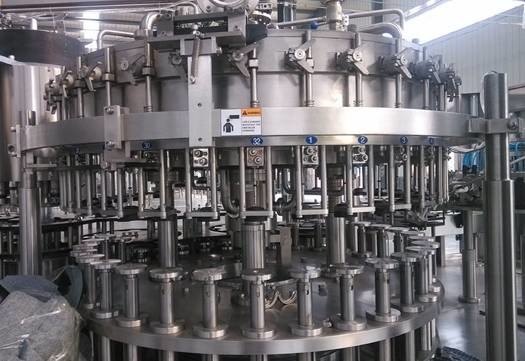

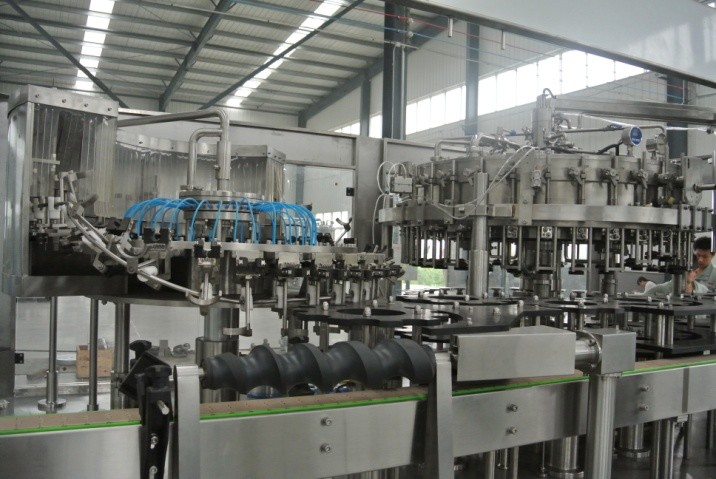

Machine Name :32-32-10 rinsing, filling, capping 3-in-1 machine

Used for filling beer and carbonated drink

Filling beer in glass bottle

Adopt isobaric filling principle

Filling stable , filling level stable

One time CO2 preparation and one time vacuumed

Widely used in craft breweries

GD-CGFB 32/32/10 type beer bottle rinser-filler-capper 3-1 unit machine is designed combined with the actual situation in our country after the introduction and absorption. It adopts the bottle filling and capping technique of Germany technology. It has been specially used to microbrewery.

It adopts isobaric filling principle and filling valve adopts high precision mechanical valve. It has advantages of fast filling speed, high precision in liquid level. Adopt Siemens automatic controlling system, realizing trinity of the machines, and control the washing, filling and capping process and realize that it only starts to filling when there is a bottle, otherwise it will stop filling and no broken bottles. The filling process is cleaner and pure due to it’s twice vacuumization of bottles, and more stable because of isobaric filling operation. Using vacuum pump and CO2 preparing pressure to realize a second vacuum ensure no air and bacteria in the bottle, guarantee the filling quality and warranty quality time. Filling cylinder braces use worm-gear box going up and down to satisfy bottles of different height. Float switches in the filling cylinder ensure a smooth liquid inlet. Therefore, this machine is the best ideal choice for beer or beverage factories.

Basic parameters date
