500bph Automatic Rinsing Filling And Capping Machine , 3 In 1 Filling Machine

Negotiable
MOQ
Negotiable
Price
500bph Automatic Rinsing Filling And Capping Machine , 3 In 1 Filling Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Processing:: Filling Equipment
Condition: New
Brand Name:: GD
Processing Types: Beer Filling
Product Name:: 500bph Beer Rinsing Bottling Capping 3 -in-1 Machine For Micro Brewery Glass Bottle Filling MachineGlass Bottle Filling
Control System:: Semi-automatic
Highlight:

juice bottling machine

,

automatic bottling machine

Basic Infomation
Place of Origin: China
Brand Name: GD
Certification: CE, UL,ISO
Model Number: GD-CGEB-6/6/1
Payment & Shipping Terms
Packaging Details: iron frame
Delivery Time: 50 working days
Supply Ability: 50 sets per year
Product Description

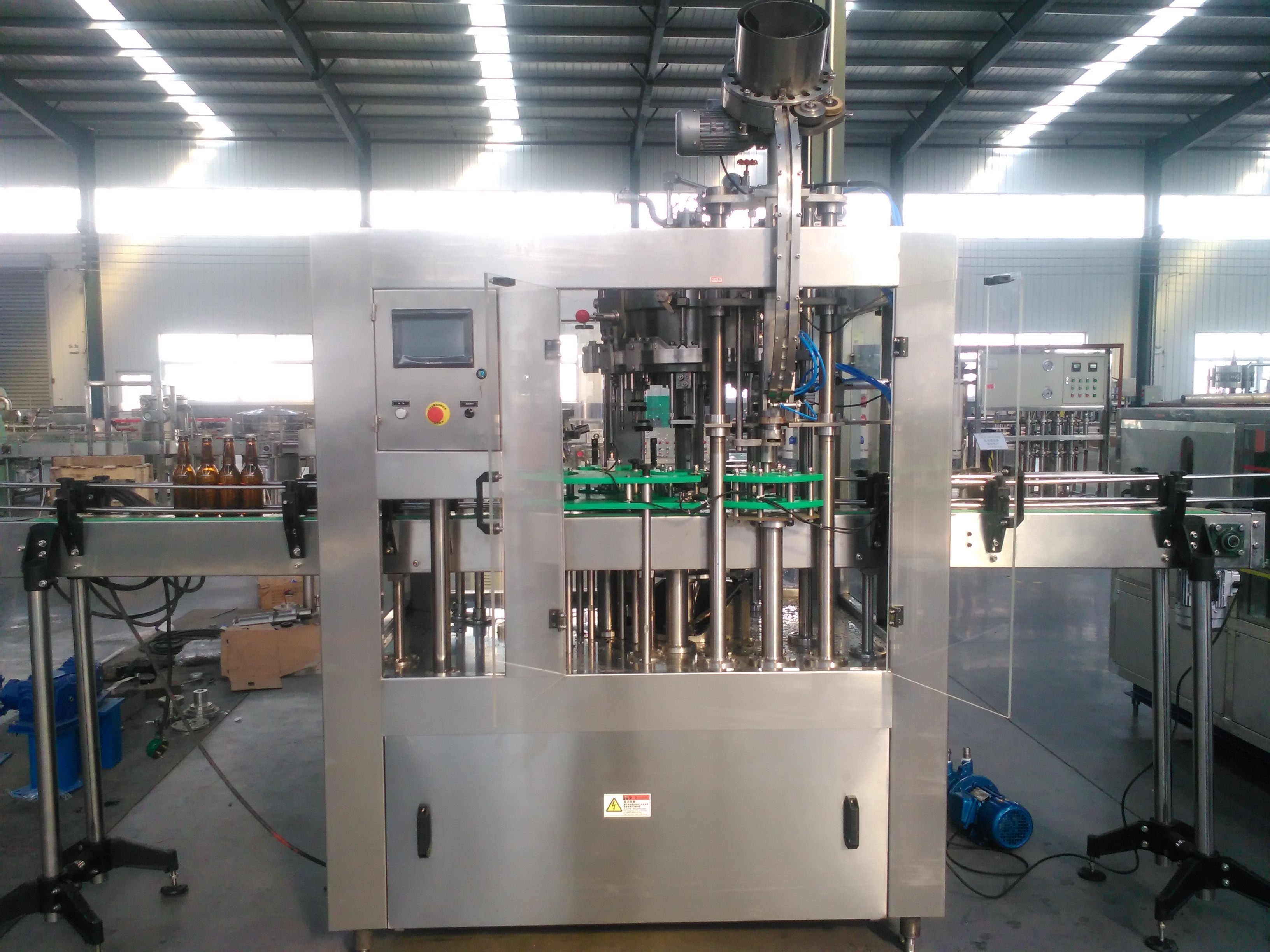

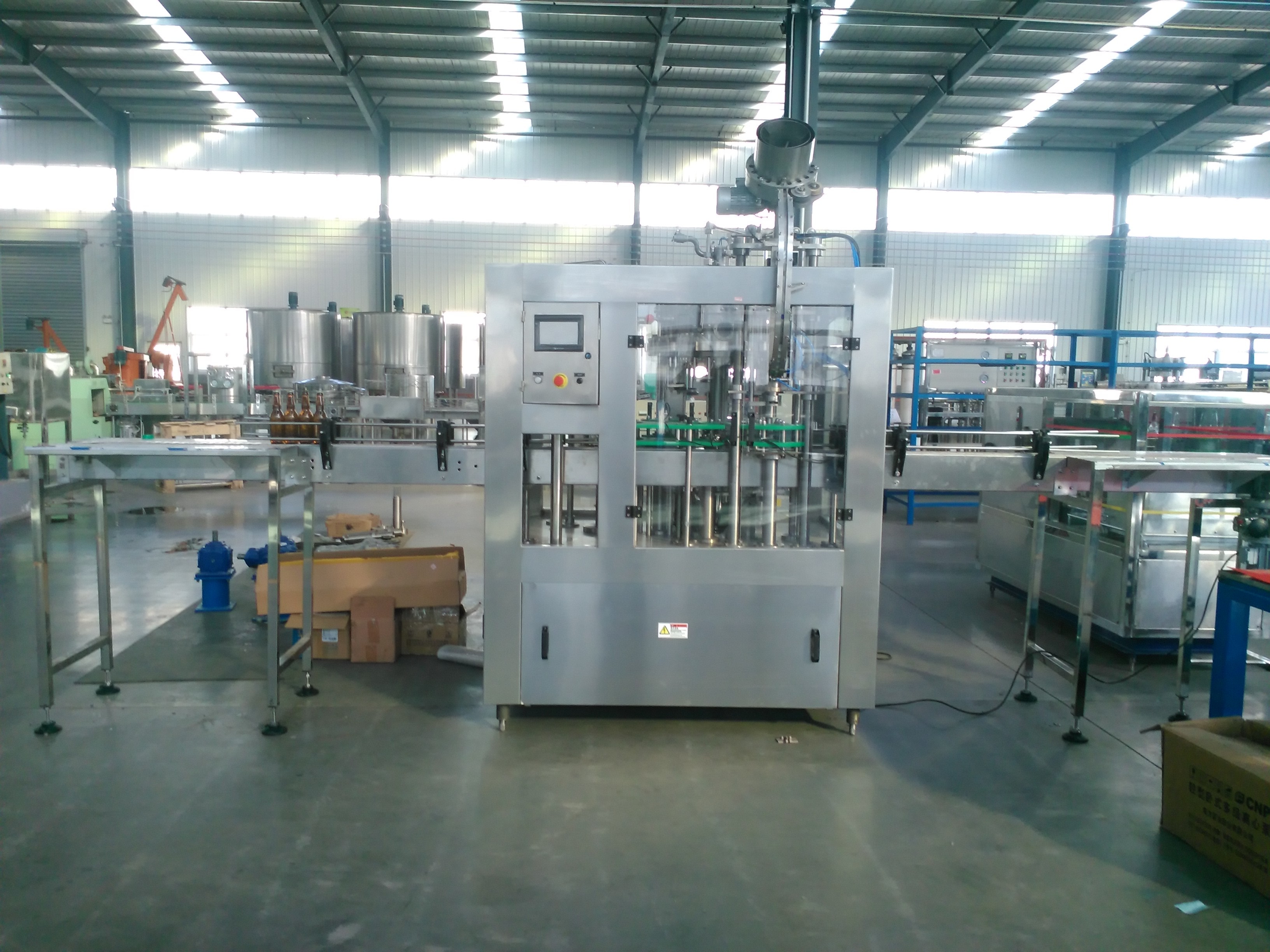

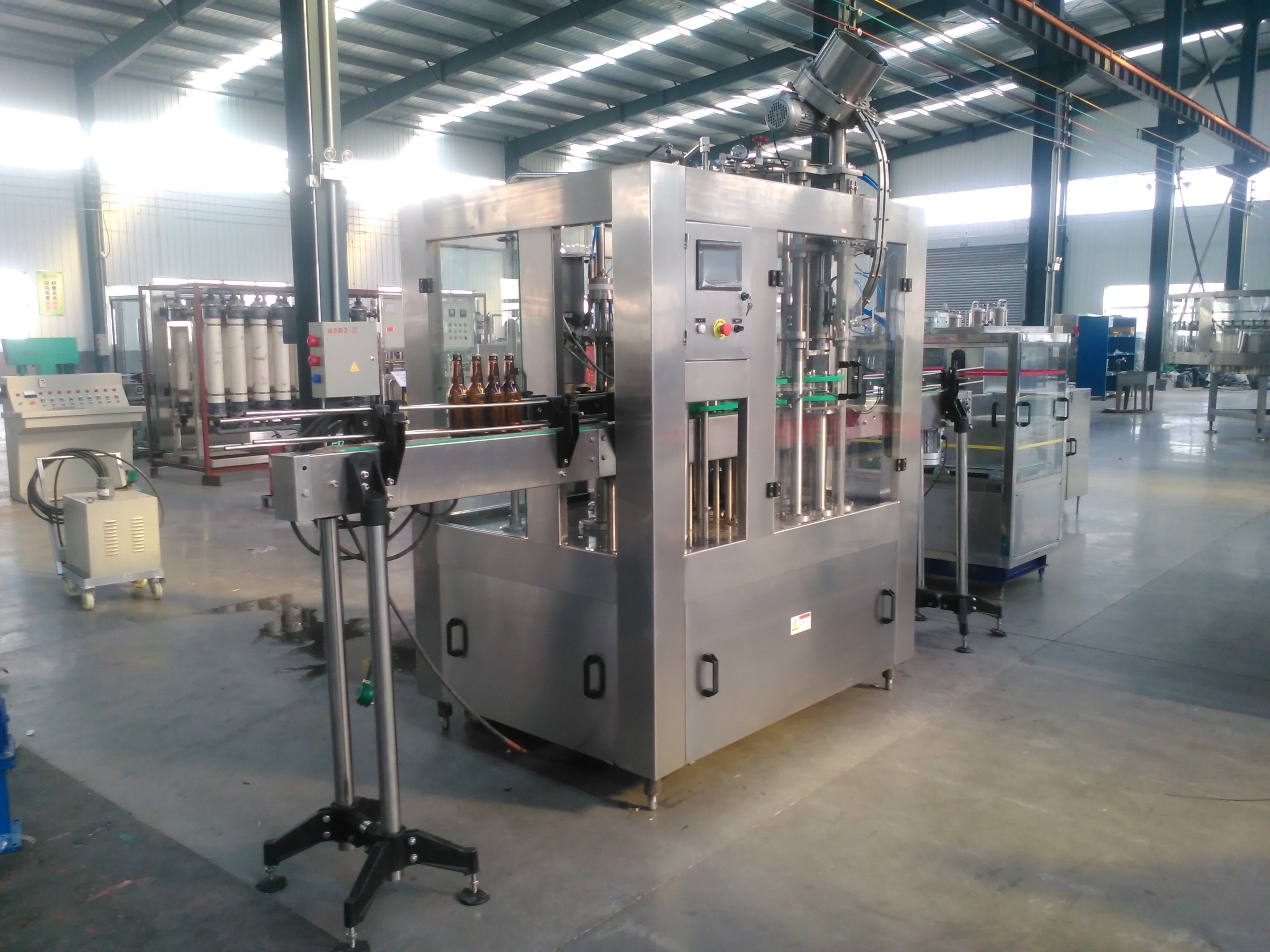

500bph Automatic Rinsing Filling And Capping Machine , 3 In 1 Filling Machine



Introduction:

This machine is my company’s introduction of German technology, combined with the characteristics of beer production industry, designed to develop small-scale beer filling equipment. The machine has excellent mechanical operation reliability, improved rinsing, filling, cover screwing, disinfection sterilization and other functions.



Basic Parameters:

rinser filler capper 3 in 1 monoblock
Model GDCGFB-6/6/1
Rinsing heads 6(diameter:φ595)
Filling heads 6(diameter:φ510)
Capping heads 1(diameter:φ170)
Capacity 500BPH
Applicable bottle Bottle height 200~350mm DiameterΦ52~Φ84mm
Aseptic air consumption 0.4m3/min(0.4~0.6Mpa); blowing: 0.6m3/h
Main motor 0.37 KW
Hopper motor 0 .18KW
Vacuum motor 0.75 KW
Overall dimension 1520×1125×2350mm(L×W×H)
Weight 1300 Kg



Main components brand:

S.N. Name Remark
1 Rinsing head with bottle neck hanging Made by our factory
2 Filling valve Made by our factory
3 Capping head Made by our factory
4 Touch screen Mitsubishi
5 Transducer Emerson
6 Main electric Airtac/ Siemens 800USD additional
7 PLC Japan, Mitsubishi
8 Approach switch Japan's Omron
9 Light fiber switch Korea, Autonics
10 Reducer Hangzhou, JIE brand
11 Motor Shanghai
12 Pneumatic elements Taiwan, Airtac
