1. General Information
Production capacity: 5000 liters per hour
Product type: acidic copper sulphate solution
Solution features:
PH: 2-5
Solution temperature when filtering: 25-30degC
Impurity content: less than 2%
Introduction of machine
One. Brief introduction

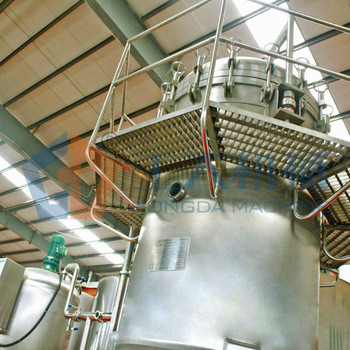

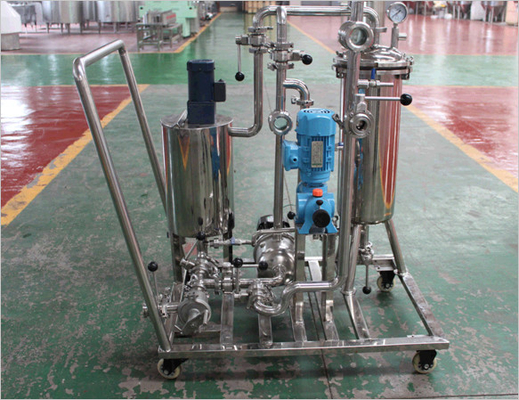

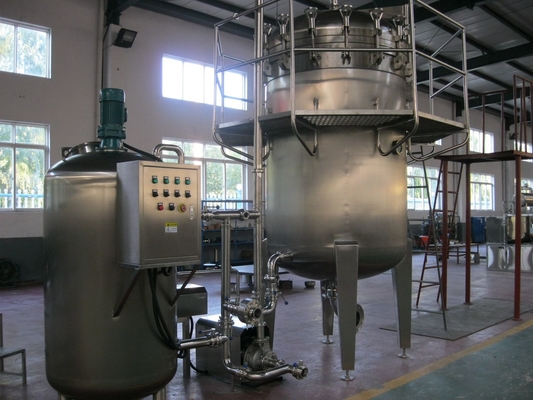

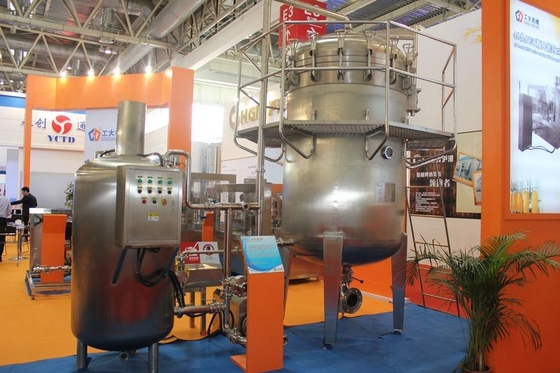

The candle type filter machine is an efficient filter designed by our company, the candle type filter is a multipurpose filters which brings in, digest and absorb the German technology. The filter has international advanced level, it is the ideal updating and upgrading product in the industry of chemical or beverage. This machine adopts the diatomite to be filter acid. This machine has prefect tightness, steady performance, operating and maintenance easier, lower filter cost and longer service life, highly efficiency, it could extend the working time, and can be backflow washed easier.
Two. Application:
Chemical solution, beer, yellow wine, syrup, beverage and biological industries
Three. Filter principle:
The system adopting diatomite as medium and supported by filter candle sticks with special constructions, is a kind of filter system which makes the diatomite covering filter candle sticks and forms a filter layer. The type of machine contains front buffer equipment, main machine, back buffer equipment, beer reclaim, recovery device, fine filter, etc.
Four. Feature
The material is stainless steel, no dead angle of hygiene residue, according with the requirement of GMP.
The filtering element-candle stick, is imported with original packaging, high precision.
Constant flow filter, the demand of the diatomite is low.
Frequency conversion control of diatomite addition
The filter degree can be settled by automation with high filtration precision.
Five. Technical parameter
Work pressure: ＜ 0.6Mpa
Turbidity value: 0.5 EBC
Maximum operating temperature: 80℃
Metering pump motor: 5KW
Diatomite consumption: 1.0-1.4 kg/t
Capacity: 5000L/H
Inner filter core material: SUS316.
