Name: Sus 304 Automatic Beer Keg Washing Machine Two Heads Touch Screen 2L - 60L
Brand: GD
SKU: GD-TGZ-02
Rating: 4.8 (177 reviews)

Sus 304 Automatic Beer Keg Washing Machine Two Heads Touch Screen 2L - 60L

Negotiable

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Keg Filling Machine

Condition: New

Application: Beverage, Chemical, Commodity,

Packaging Type: Barrel, Bottles, Cans, Jars, Tins

Automatic Grade: Automatic

Driven Type: Pneumatic+electric

Voltage:: AC220V Or AC380V

Power: 3.5Kw.

Material: SS 304 And Alloy

Filling Volume:: 0-1000ml,5000ml

Highlight:

packaging production line

keg washer filler

Basic Infomation

Place of Origin: China

Brand Name: GD

Certification: CE, UL,ISO

Model Number: GD-TGZ-02

Payment & Shipping Terms

Packaging Details: iron frame /plate

Delivery Time: 40-50 working days

Payment Terms: TT

Supply Ability: 20 sets per month

Gallery

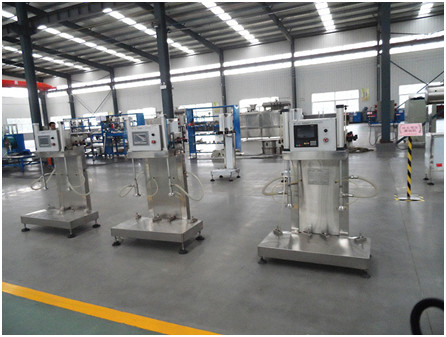

Sus 304 Automatic Beer Keg Washing Machine Two Heads Touch Screen 2L - 60L

Product Description

Sus 304 Automatic Beer Keg Washing Machine Two Heads Touch Screen 2L - 60L

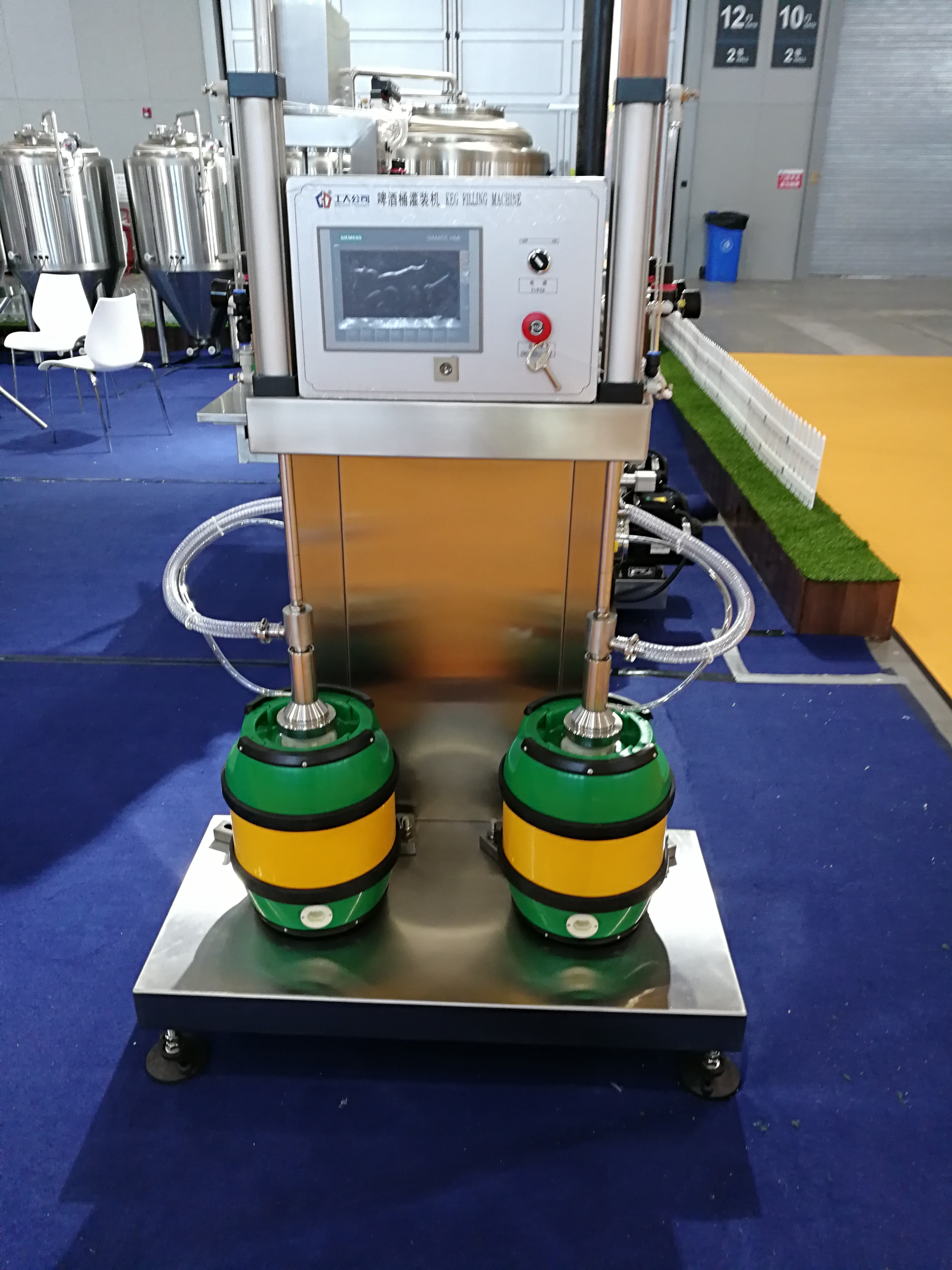

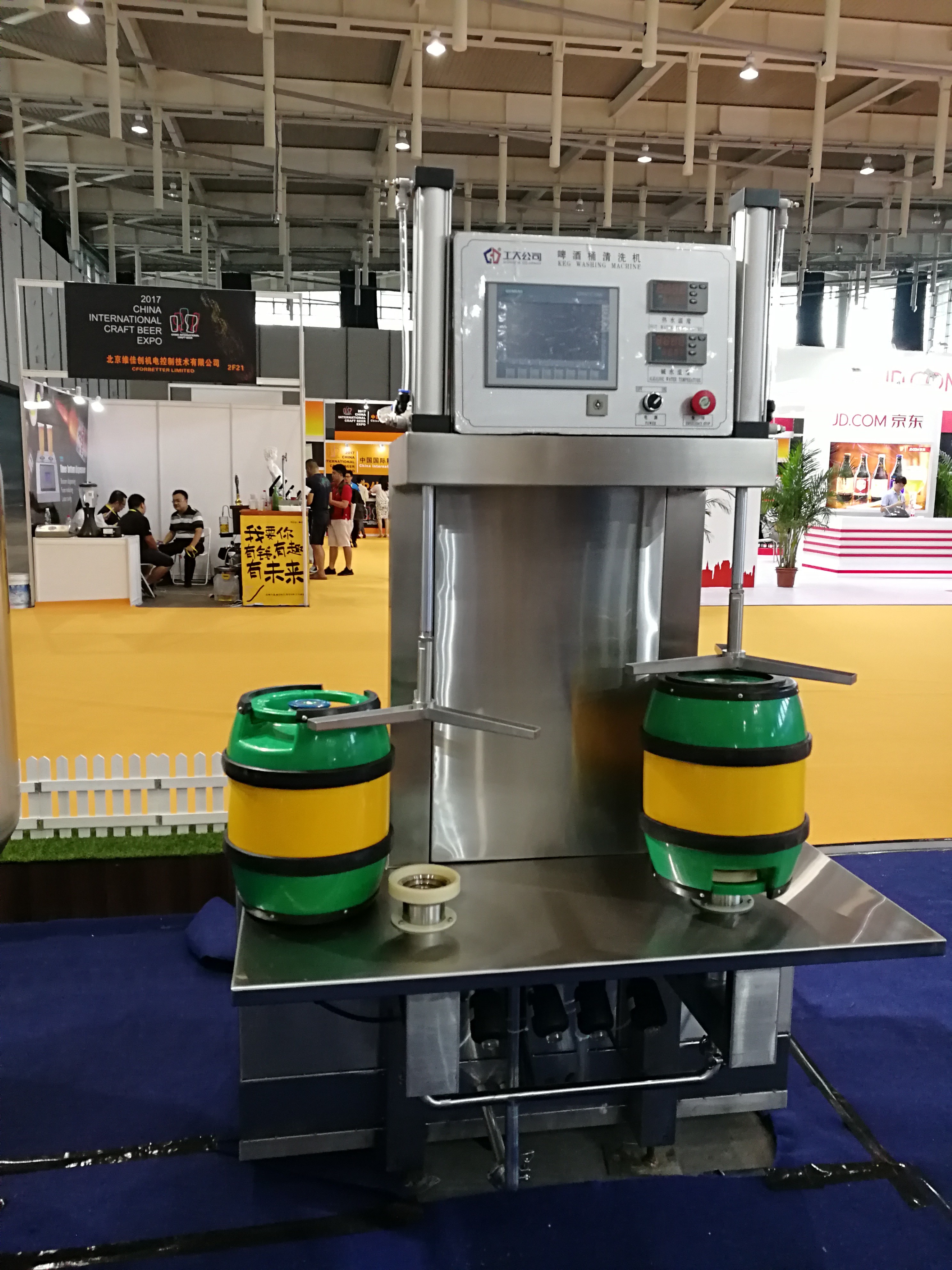

Beer Keg Filler (Screen Touch) 2 heads

This machine adopts the patent technology of the isopiestic pressure filling. All process is manual operation, easy to control. The machine is stainless steel.

Sus 304 Automatic Beer Keg Washing Machine Two Heads Touch Screen 2L - 60L 0

Working principle

Firstly you put the keg on platform and press the keg tightly using filling head. Before filling beer, you need to fill CO2 to the empty keg so that the beer foam can be largely decreased and keep beer stable when beer is filled. When the keg is full, the filling will stop automatically.

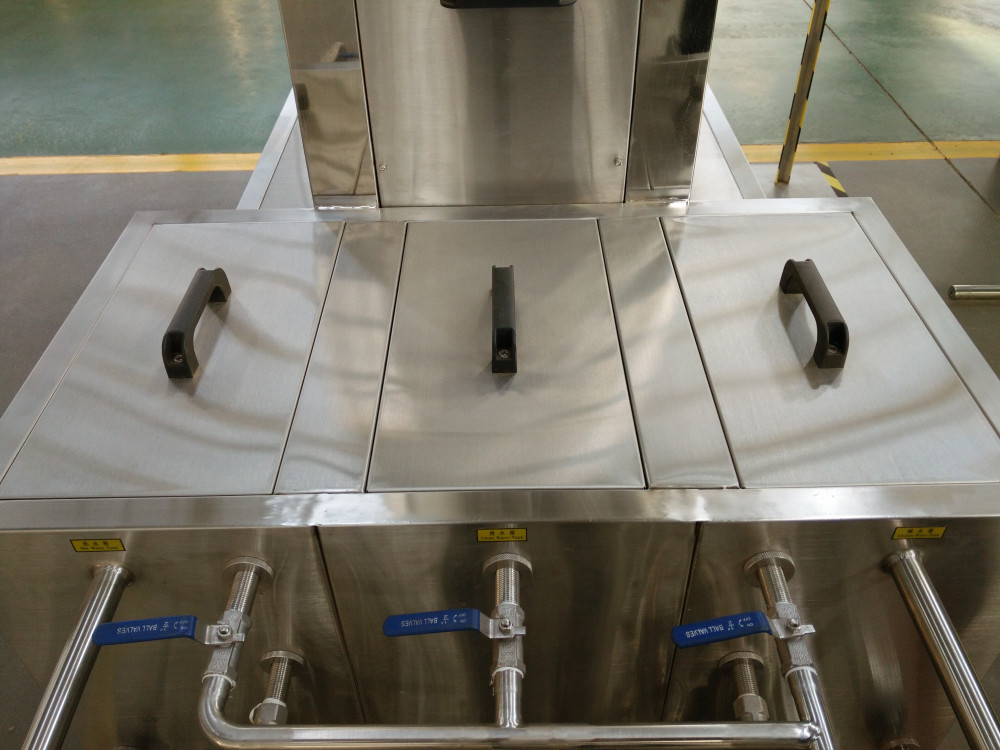

Besides, it can wash the pipeline automatically after you finish the filling work.

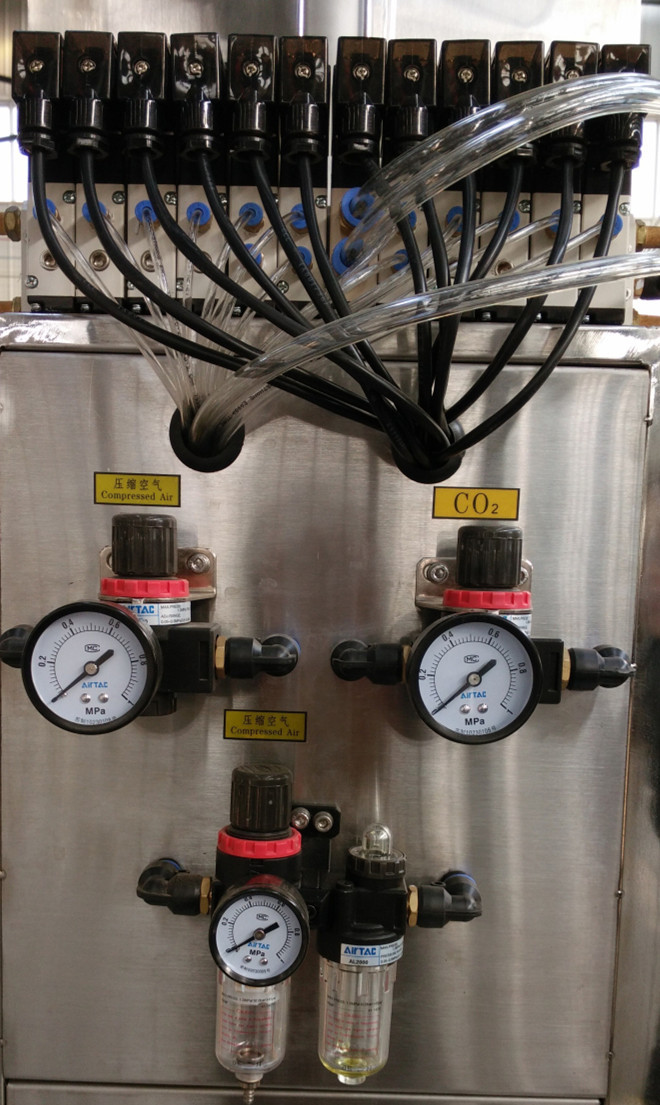

Pls look at the Pressure parameter as follows:

Pressure of beer	0.2-0.3 Mpa
Pressure of the air	0.6-0.8 Mpa
Pressure of CO2	0.1-0.2 Mpa
Pressure of Cylinder	0.35-0.4Mpa

Specification

Filling heads	2 heads
Size of plat form	480mm×960mm
Height of the plat form	160mm
Size of the machine	560mm×960mm×1460mm
Weight	106kg
Production capacity	40-70kegs per hour
Rate of beer waste	<1%

Sus 304 Automatic Beer Keg Washing Machine Two Heads Touch Screen 2L - 60L 1
