Steam Heating Stainless Steel Brewing Equipment With CE UL ISO Certificate
CGET 100L 200L 300L 500L 1000L 2000L copper beer equipment, widely used in restaurant and bar.super design and best service.The copper beer mash equipment is populared in restaurant and bar more and more.
We are a biggest and professional beer equipment manufacture in China, we also manufacture all types and sizes of fermenting and storage tanks.
Our beer equipment can be designed according to the specific wishes of our customers.

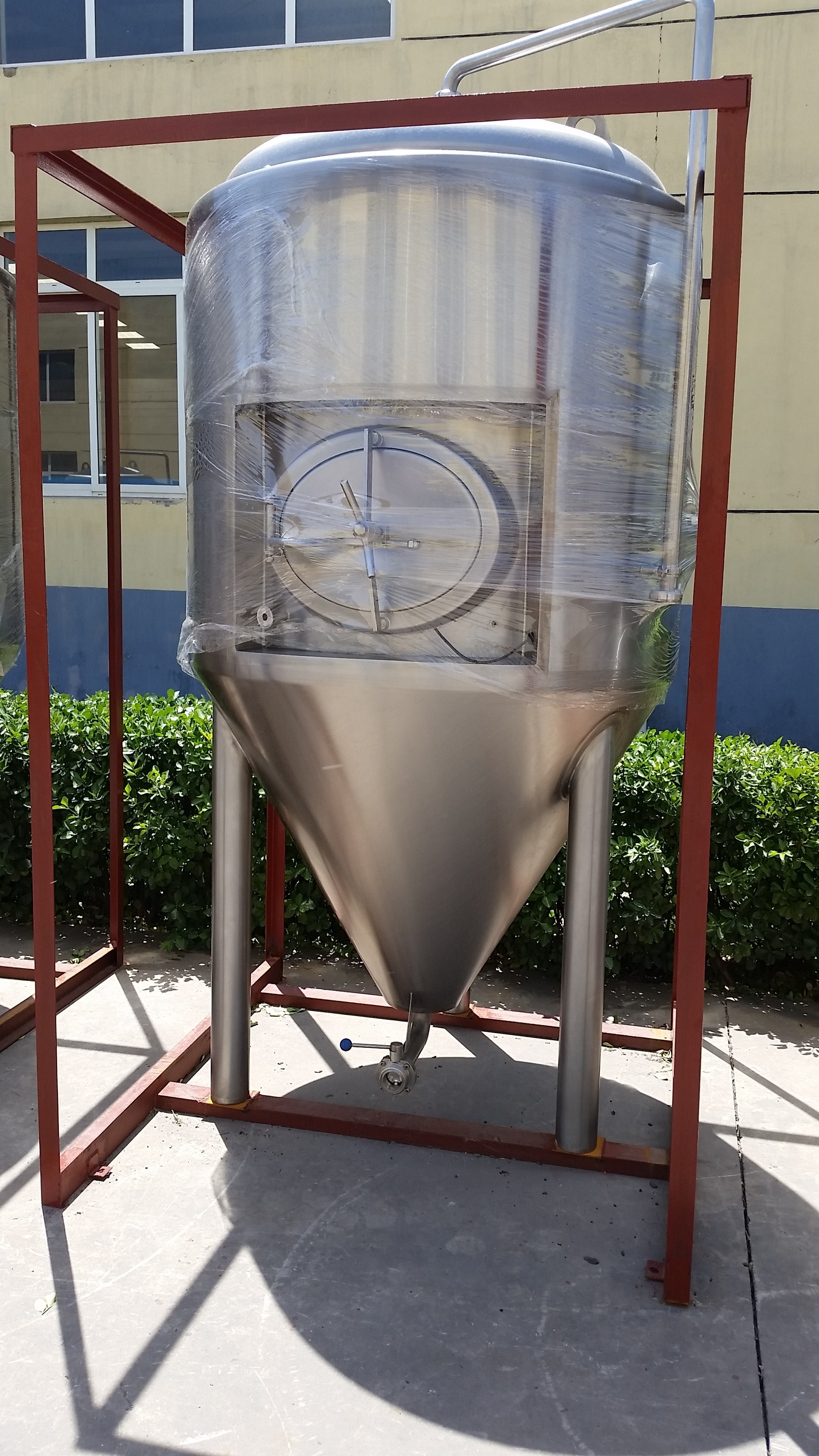

1. Dished head top head, cone shaped bottom;
2. Dimensions: according to your plant details
3. Effective volume 7BBL
4. Rock wool insulation, insulation thickness 80mm;
5. Inner tank thickness 3mm, cladding thickness 2mm;
6. Steam heating: Side and cone steam heating jacket, bottom Cone heating(patent product No. 2009200271826), Heat transfer area 1.46m2;
7. Top mechanical agitation: Cycloid reducer, motor power 0.75kw;
8. CIP rotatable spray balls 2 pieces
9. Top manhole, φ500mm, with glass sight glass;
10. Top LED sight light;
11. PT100 temperature probe;
12. Stainless steel try-clamp level gauge, with stainless protection tube;
13. Welding seams brushed polished;
14. 4 legs, with adjustment bolts, 2 fixing holes on the base plates;
15. Indoor vapor condense device, with steam condensate tube;
16. Assorted valves and fittings
|
Beer Brewery Machine system Overview (Can be customized ) |
|
| Architecture | Main Components |
| Milling System | Malt Mill |

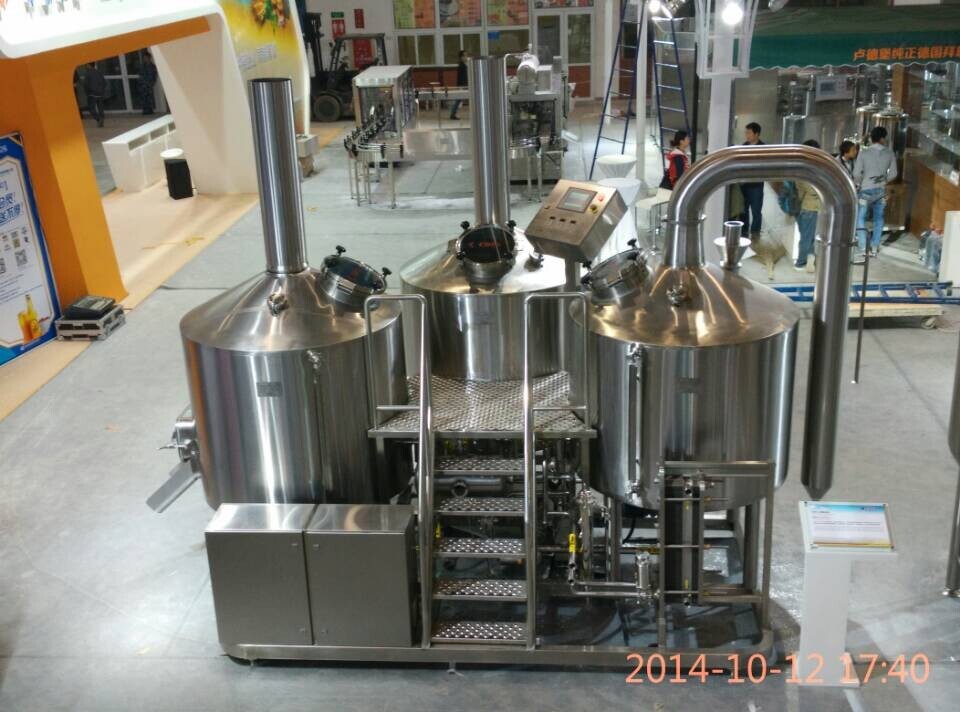

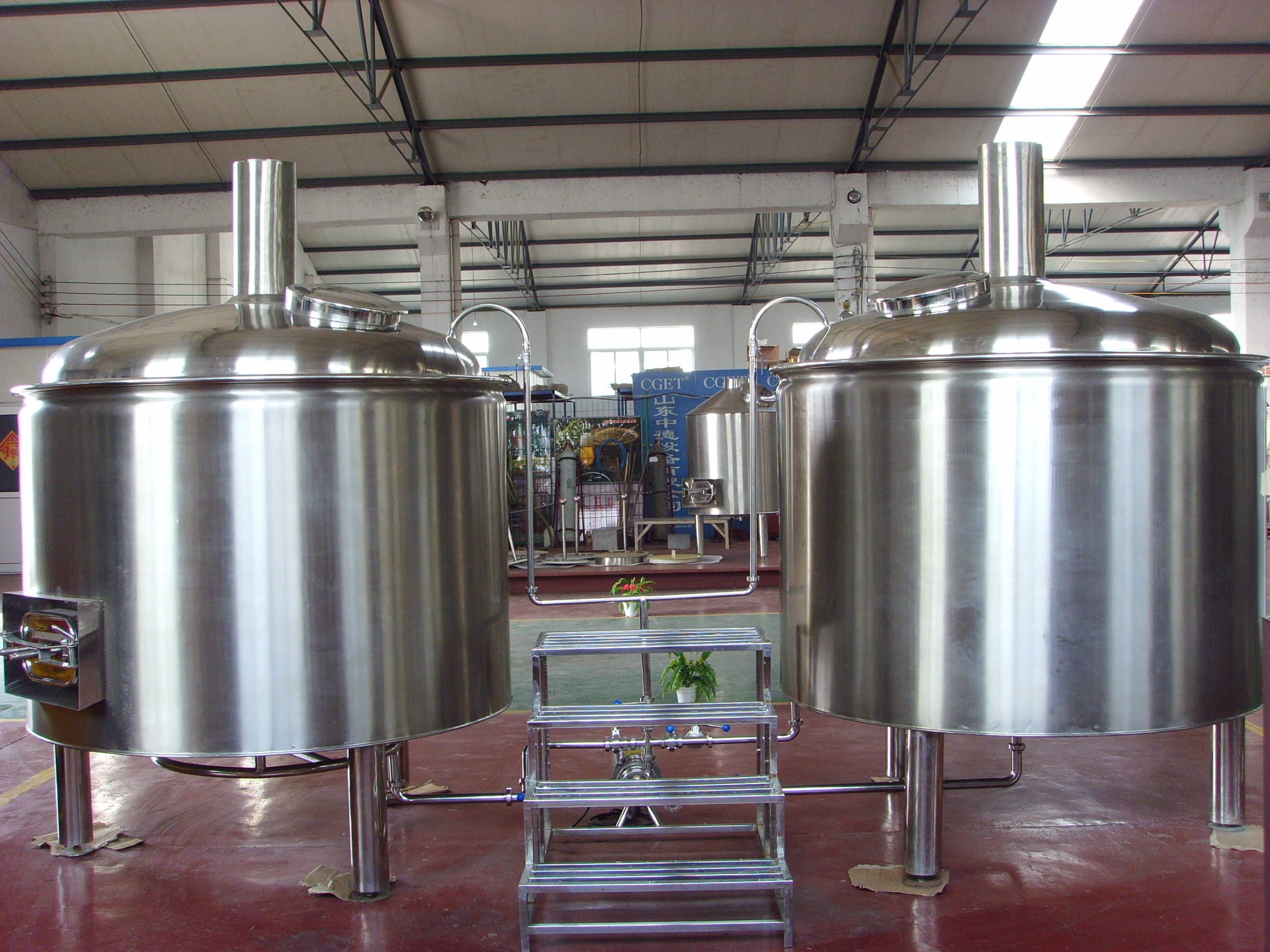

| Brwehouse | Mash Tun, lauter tun, boiling, whirlpool |
| Fermentation unit | Fermentation tank |

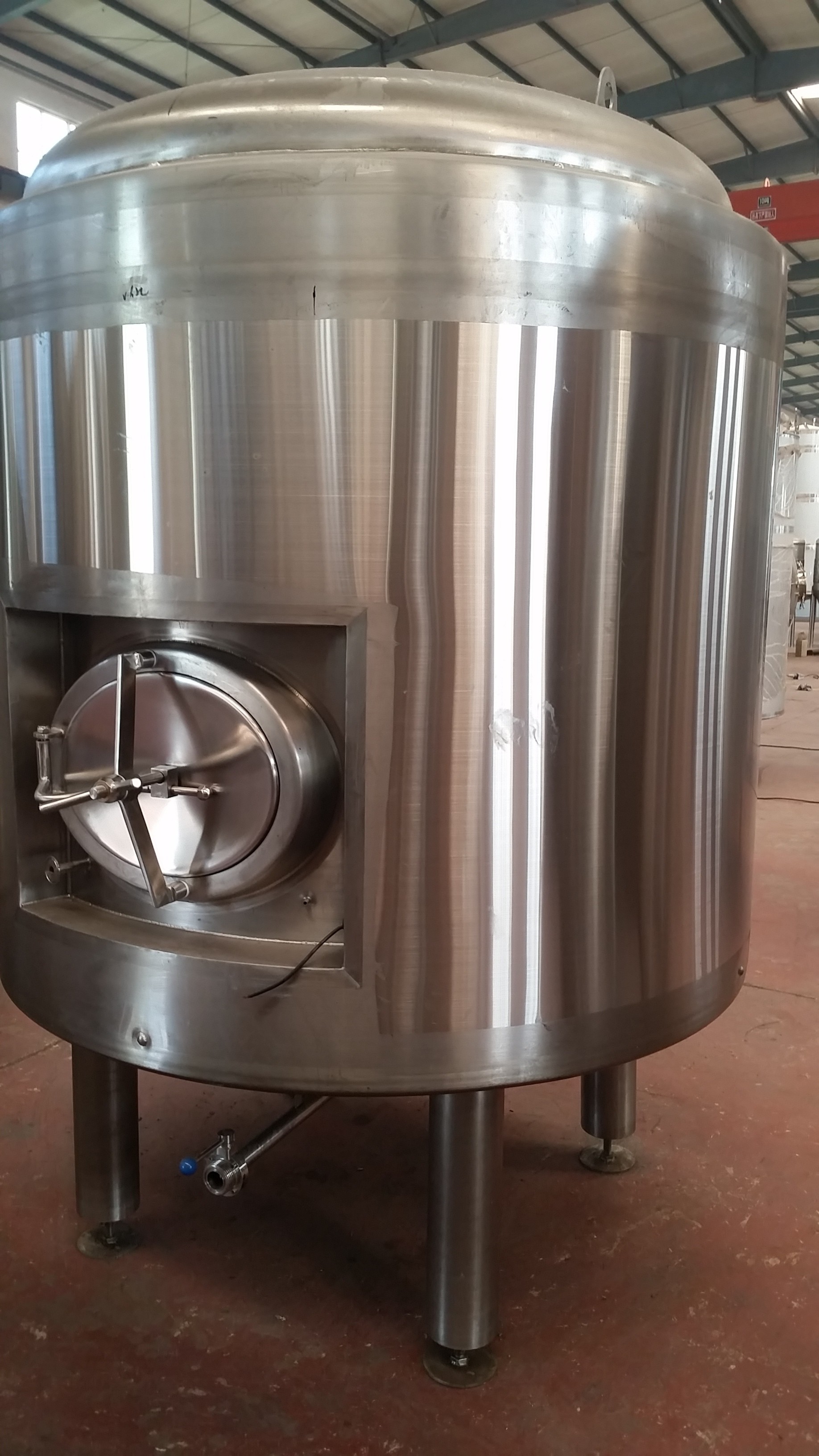

| Bright beer tank(optional) | |
| Cooling unit | Ice water tank |
| Chiller | |
| Cleaning unit | Pump |
| Alkaline liquid tank | |
| Sterilization tank | |
| Control unit | Touch screen |
| Control cabinet | |
| CE certified electric fittings | |
| Speed control | |
| Temp display and control | |
Advantage
Professional Beer Equipment manufacture with 21 years experiences in China.
Dedicated team of consulting Services&Professional team of technical engineers
Complete quality control and management systems
Industry leading manufacturing facilities
Complete beer line to meet different capacities and all kinds of beer
Customize machine can be offered(voltage,material,dimension,heating source and so on)
With CE & ISO9001:2000 Certification
FAQ
1. Q: Are you a manufacture?
A: Yes, we’ve been in producing, exporting and installing brewery equipment for 22 years.
2. Q: Have you sold equipment to our country before? Which brewery is it?
A: We have 2000+ world-wide customers, covering every continent. With your detailed request of brewery, we’ll provide you contacts for calling and visiting our successful brewery projects.
3. Q: What kind of equipment should I choose?
A: With knowing your expected beer output & brewery area dimension, we will choose the most appropriate equipment for you.
4. Q: Is customize available?
A: Sure, and that’s the spirit of craft beer brewing: multy-possibilities & being unique.
5. Q: Will I get design or solutions for my brewery?
A: Definitely, we design brewery layout for every client. Further more, beer recipes and brewing tutoring if needed.
6. Q: How should I install the brewery?
A: You will get our full and accurate online guidance, including video, picture instruction, our experienced technicians will handle the whole process as a turnkey project.
7. Q: Is your system manual or automatic?
A: All the electric devices are controlled by PLC system. It’s semi-auto on brewhouse and full-automatic on fermentation. You can read all status of brewing on the screen/gauges.
8. Q: How should I pay?
A: After signing contract, 30% by T/T in advance and balance before shipment.
9. Q: How long does the production take?
A: Generally 30 working days since receipt of down-payment.
10. Q: What about quality warranty?
A: We provide 3 years warranty for main equipment, and 2 years for electric devices.
