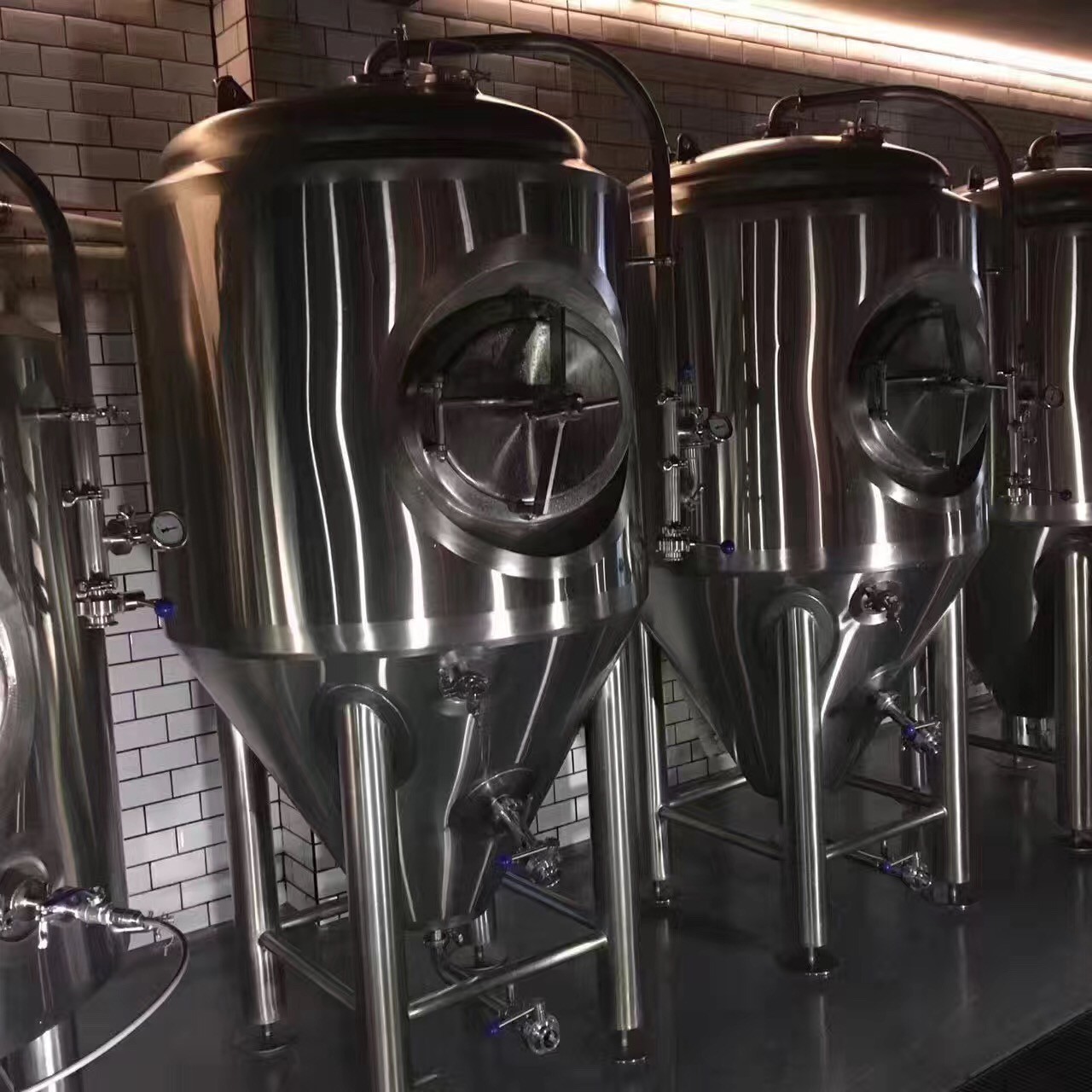

2000L Beer Fermentation Equipment Commercial Beer Fermenter Touch Screen Control
1. Exterior of tank 2B Plate, interior of tank Mechanical polish, inner body polishing ratio ≦0.6μm;
2. Design pressure 30 psi , using pressure:15psi
3. Interior shell: 304 stainless steel, thickness 3mm; Exterior shell thickness 2mm;
4. Effective volume: 2000l; total volume: 2700l; 60 degree cone bottom;
5. Racking Arm and discharge port with butterfly valve and fittings;
6. Side manhole; With an extra top manway.
7. Dual zone dimple cooling jacket with glycol inlet and outlet;
8. Polyurethane insulation thickness 80mm
9. CIP arm and spray ball
10. Relief valve, pressure regulating valve
11. Pressure gauge & Thermometer & Sample valve.
12. Four legs with brace and adjustable bolt;
13. With necessary fittings and valves
14. For details, please see tank drawing.
Product specification
|

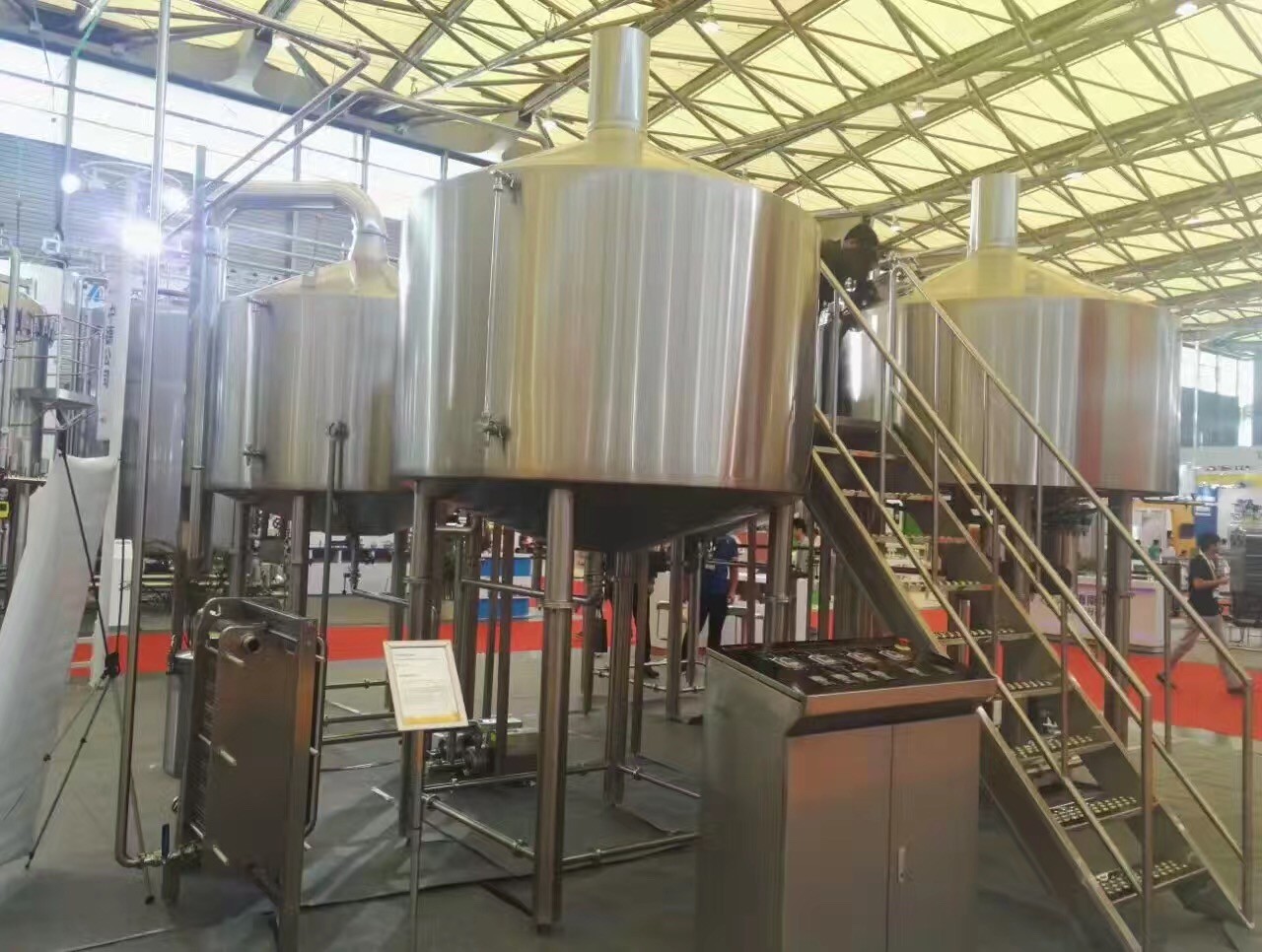

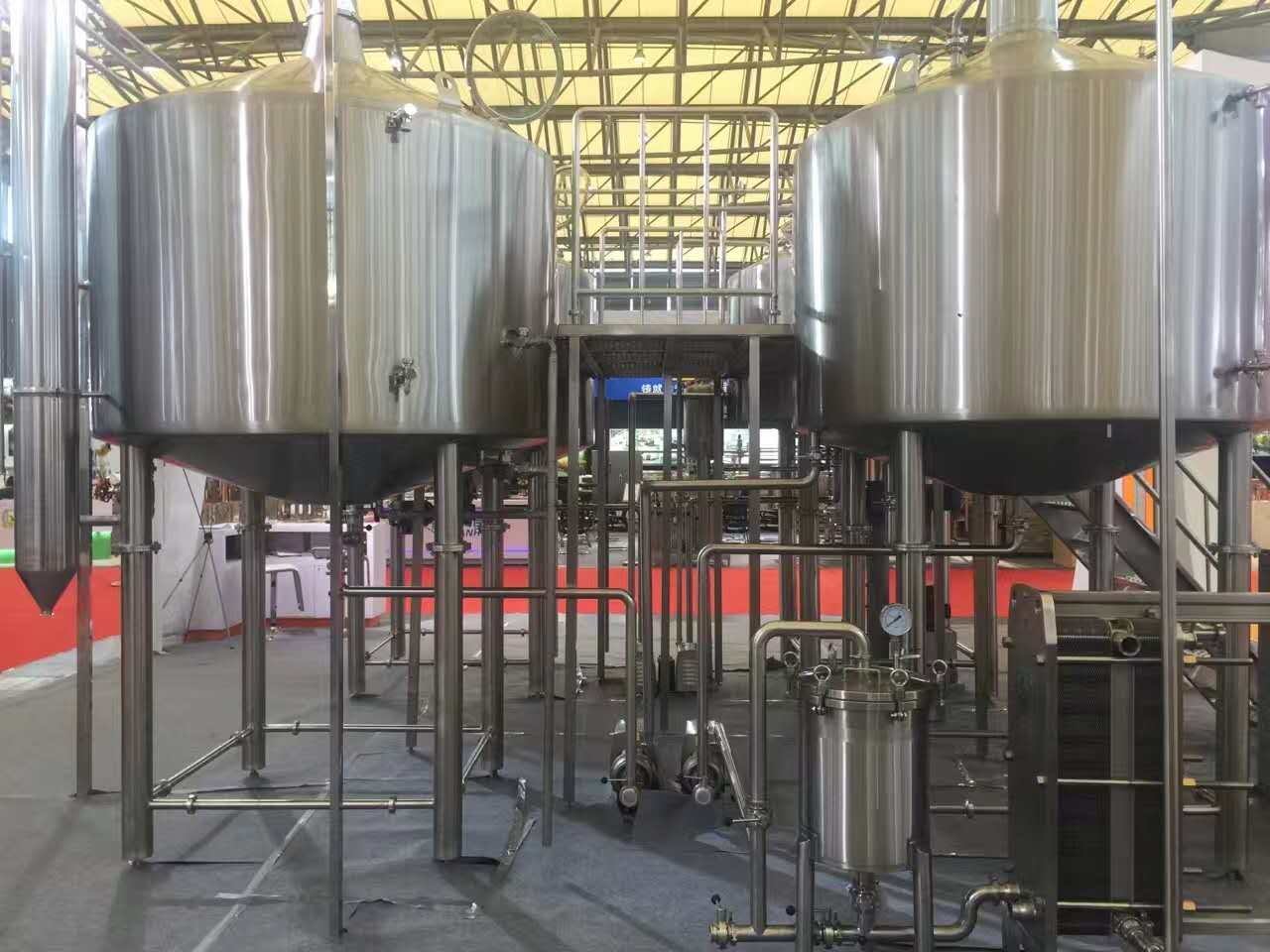

Beer Brewery Machine system Overview
(Can be customized )
|
| Architecture |
Main Components |
| Milling System |
Malt Mill |
| Brwehouse |
Mash Tun, lauter tun, boiling, whirlpool |
| Fermentation unit |
Fermentation tank |
| |
Bright beer tank(optional) |
| Cooling unit |
Ice water tank |
| |
Chiller |
| Cleaning unit |
Pump |
| |
Alkaline liquid tank |
| |
Sterilization tank |
| Control unit |
Touch screen |
| |
Control cabinet |
| |
CE certified electric fittings |
| |
Speed control |
| |
Temp display and control |
Small Sized Beer Fermenter Copper Beer Fermenter 1000L Beer Fermenter 2000L Beer Fermenter
Material SUS304 or copper Copper SUS304 SUS304
Capacity Custom-design Custom-design
Gross capacity 1000L+25%
effective capacity 1000L
Gross capacity 2000L+25%
effective capacity 2000L
Outer container Material SUS304 fully welded Copper fully welded SUS304 fully welded SUS304 fully welded
Thickness 2mm
Inner container Material SUS304 fully welded
Thickness 3mm
Insulation Material Polyurethane
Thickness 80mm
Function Wort fermentation or beer ripening
Polishing accuracy of the inner container 0.4-0.6μm .No dead ends
Cooling jacket Dimple metal plate(for cone and container both)
System composition:
1. With strict water / air pressure test,air pressure test for 48 hours before delivery.
2. Cooling jacket with strict water / air pressure test.
3. Dished head, thickness is 2.5mm, Cone angle can be custom-design.
4. Sanitary top pressure manhole on top.
5. 360°full coverage CIP cleaning arm.
6. Carbon dioxide exhaust arm with butterfly valve.
7. Mechanical pressure regulating valve.
8. Liquid level gauge with soft pipe.
