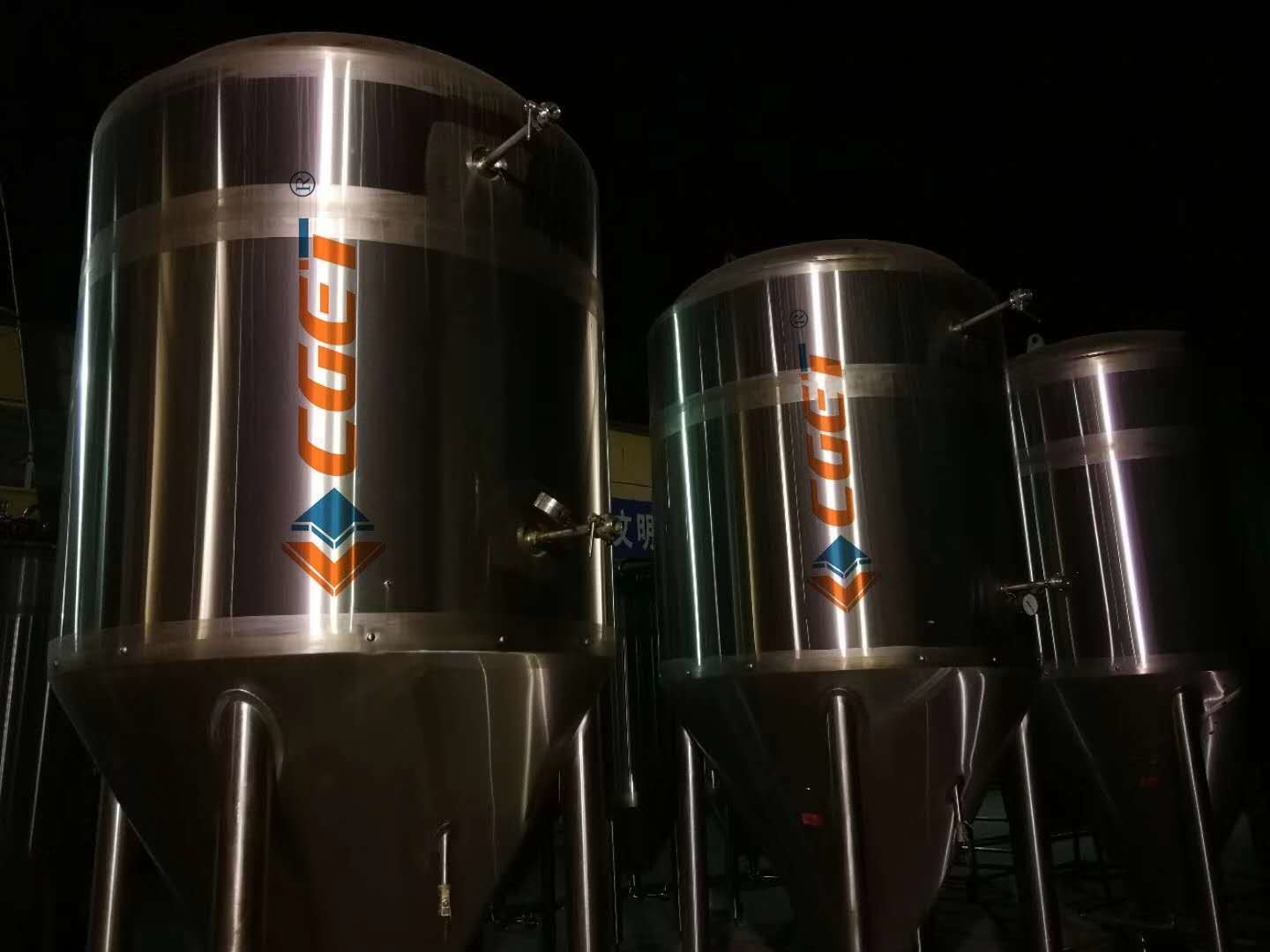

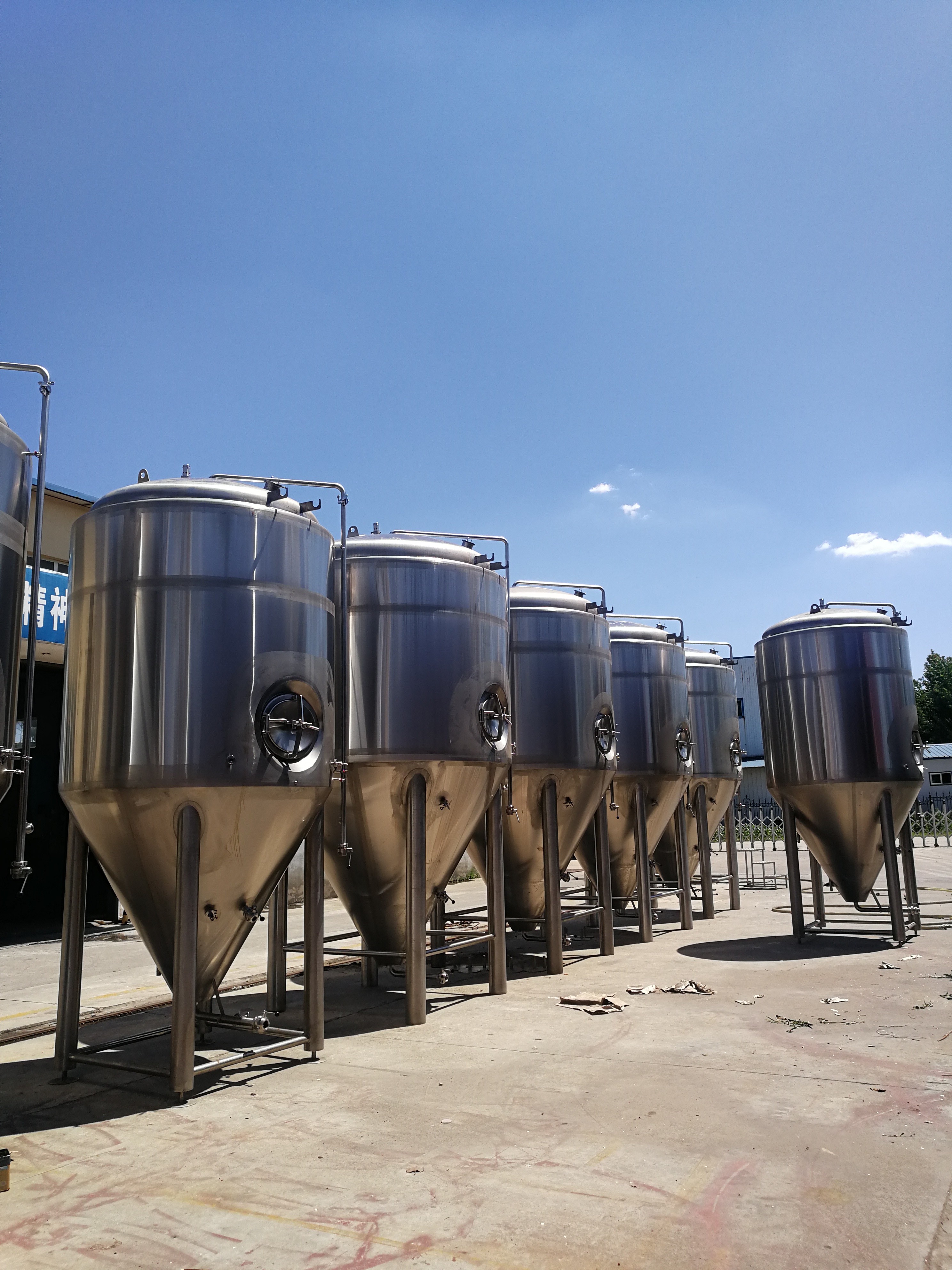

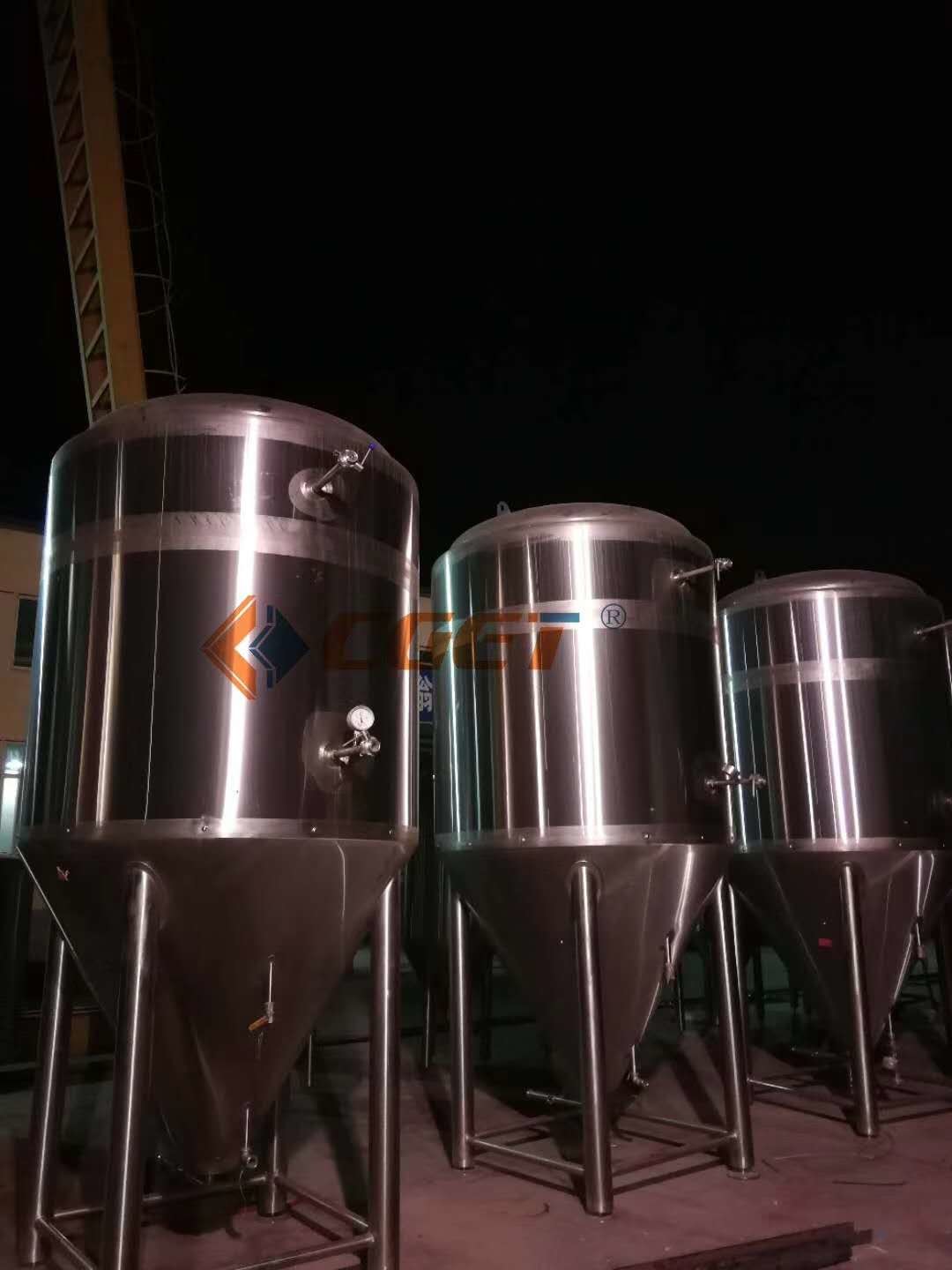

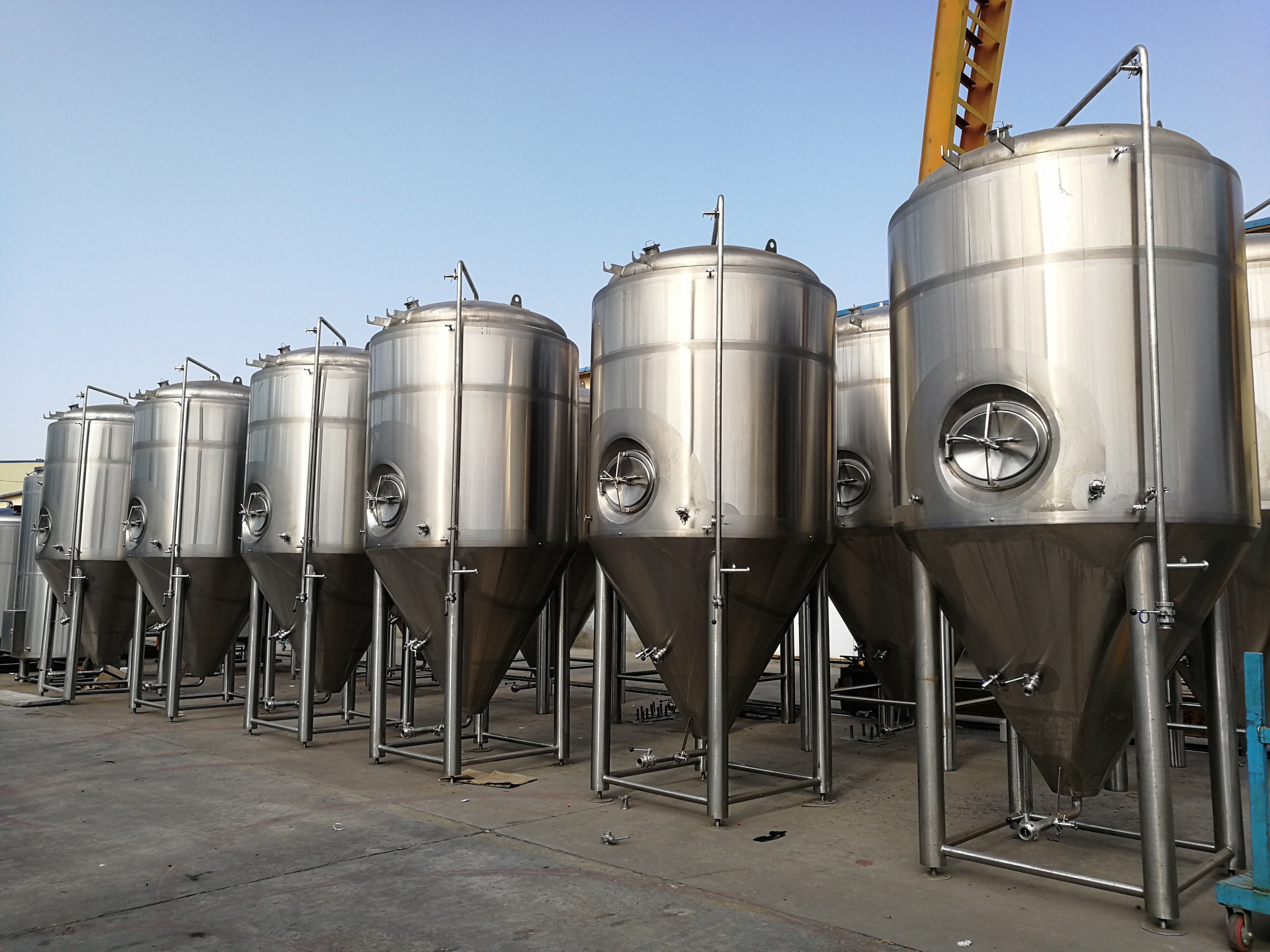

Vertical Jacketed Fermentation Tank Bright Beer Conical Beer Fermenter 3000L
1. Stainless steel 304；Dished head;
2. Dimension :φ1800×3748mm
(According to the plant area );
3. Effective capacity 3000L;
4. Heat transfer area 5.9 m2;
5. Design pressure:3Bar; Working pressure:2Bar;
6.Double-stage cooling jacket, stainless steel solenoid valve, mechanical pressure regulating valve;
7. Dimple cooling jacket: 1.5mm;
8. Insulation thickness: 80mm; Inner tank thickness: 2.5mm,outer thickness:2mm
9. Conical base 60°
10. CIP pipe and rotary spray ball
11. Beer racking arm and bottom drain port, associated valves and fittings;
12. Top hops add port;
13.Side manhole;
14. respiration valve, sample valve; Sampling valve and sampling port(Clamp connect)
15. PT100 temperature probe.
16. Four stainless steel legs, with screw assembly to adjust leg height,
17.With hanging ladder
1. Material SUS304
2. Working volume:30HL, with 20% head space；
3. Two stages dimple plate cooling jacket.
4. Insulation thickness: 100mm; Inner tank thickness: 3mm;
5. Inner body polishing ratio ≦0.4μm
6. Ribbon polished on welds
7. Carbonation Stone; liquid level meter;
8. Side manhole;
9. Design pressure: 60psi, using pressure: 45psi;
10. Breathe & pressure relief valve;
11. Pressure gauge & Thermometer & Sample valve.
12. Four legs with brace and adjustable bolt;
13. With necessary fittings and valves
Fermentation control cabinet:
1. Display degree together;
2. Siemens Brand Touch Screen;
3. PLC control system S7-1200 system;
4. Control the temperature & pressure of the fermetner and bright beer tanks;
5. Control the temperature of the cooling system;
