Custom Design 7bbl Brewhouse Microbrewery Plant Electric Direct Fire Heating Brewhouse

Negotiable
MOQ
Negotiable
Price
Custom Design 7bbl Brewhouse Microbrewery Plant Electric Direct Fire Heating Brewhouse
Features Gallery Product Description Request A Quote
Features
Specifications
Processing: Fermenting Equipment
Condition: New
Model Number: Custom-design
Processing Types: Alcohol
Voltage: 3phase/380(220,400,415,440)v/50 (60)Hz
Dimension(L*W*H): Customized
Power(W): 15-70Kw Depends On Size
Warranty: 12 Months
Highlight:

micro brewing systems

,

small brewery equipment

Basic Infomation
Place of Origin: China
Brand Name: CGET
Certification: CE ISO
Model Number: CG-7
Payment & Shipping Terms
Delivery Time: 25work days
Payment Terms: T/T, L/C
Supply Ability: 100 Set/Sets per Month 7bbl fermention
Product Description

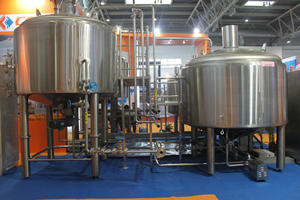

Custom Design 7Bbl Brewhouse Microbrewery Plant Electric Steam Oil Heating





Packaging & Delivery
Packaging Details
Iron crate, wooden box, suitable for long distance sea transport packaging or Wooden case
Beer factory 3bbl 6bbl 10bbl 20bbl 80 gallon beer fermenter tank
Port
Qingdao Port, beer factory fermenter
Lead Time :
Shipped in 30 days after payment

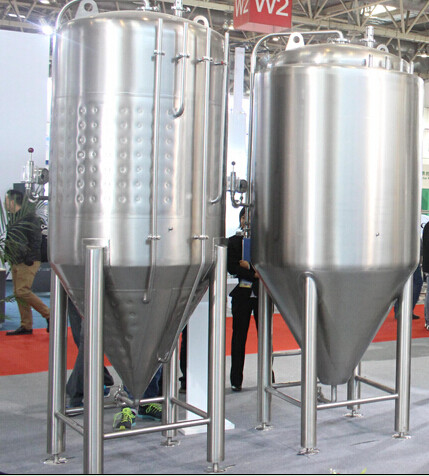

Fermenters description

The conical fermentation tanks have a dished top with cylindrical body. The 60 degree conical bottom is ideal for fermenting and improving the quality of beer as well as breeding yeast. All the tanks are food grade stainless steel 304 with a 3mm thickness for 100l-5000l, but larger tank is 4mm thickness. The cooling system is a dimple jacket with insulated polyuranthane filling.

It is 100% stainless steel. All tanks comes with 25% head space on top of working volume. All cone come with racking arm. It allows you to start your siphon with the racking arm horizontal, and rotate it slowly downward until you just start picking up yeast sediment.



Parameter list

Stainless steel 304 or 316, Effective volume: 100-5000l, Polyurethane insulation, thickness: 80-100mm
Thickness of inner body is 3mm, cladding is 2mm, Top breather valve, top hop additional port
Top or side manhole; With rotary CIP spray balls,Sample valve; Thermal well; Mechanical pressure valve
Glycol solenoid valves; Bottom drain port and beer outlet, Dimple type glycol cooling jacket, thickness is 1.5mm





Details make perfect
1.  Polishing:

Polishing is vital for tanks. Tanks should be polished wholly inside and outside.

Therefore it can ensure there is no place for the bacteria to hide in tanks.

Our polishing system consists of auto and semi-auto polishing machine and manual polishing.

Each tank is polished three times and more polish for the key place.



Packaging & Shipping



Delivery time 30-45 days after the deposit
Port of loading Qingdao
Trade terms EXW, FOB, CIF
Mode of transportation Sea, railway or airplan transportation
Packaging

wooden case for LCL, iron frame for FCL





Our Services

Pre-sale service

1.  The 24hours marketing team service. If you are interested in any product, please don't hesitate to contact us. We will quote you,and give you all the details you need at first time.
2.  We can provide company’s qualification certification and the drawings. All of our products are passed CE, GMP , ISO, FDA test. We can show you our qualification and certification. And we can provide the drawings to make you use our products well as quickly as possible.





After-sale service

1.  We provide long-term after-sale service.

2.  Owing to the quotation of our equipment is FOB price.Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.

3.  Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service.

About us

We are professional manufacturer of produce beer equipment. We are specialized in professional design, manufacture, installation and commissioning of various beer equipments and supporting facilities. With advanced technology, good quality and after-sale service, our products have been highly praised by our customers from many countries.

economic equipment of basic technology but of constructive quality and professional design, that can be assembled easily by means of the labeling of its components and once assembled and connected it is plug and play, to be operated with ease in the brewing and CIP cleaning processes.
