Name: 500 BPH Monoblock Filling Machine Glass Bottle Washing Filling Capping
Brand: CGET
SKU: GD-CGEB-6/6/1
Rating: 5 (157 reviews)

500 BPH Monoblock Filling Machine Glass Bottle Washing Filling Capping

Negotiable

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Sus304

Filling Speed: 500-800 Bph

Filling Container: Glass Bottle

Filling Liquid: Beer / Carbonated Drink

Name: Glass Bottle Packing Machine

Power Supply: According To Your Power Supply

Highlight:

monoblock filling machine

glass bottle packing machine

Basic Infomation

Place of Origin: China

Brand Name: CGET

Certification: CE ,ISO ,UL

Model Number: GD-CGEB-6/6/1

Payment & Shipping Terms

Packaging Details: iron frame /plate

Delivery Time: 40 working days

Supply Ability: 100 SET PER YEAR

Gallery

500 BPH Monoblock Filling Machine Glass Bottle Washing Filling Capping

Product Description

500 BPH Monoblock Filling Machine Glass Bottle Washing Filling Capping

One:Introduction:

Newly designed and produced by our Zhongde Group Company

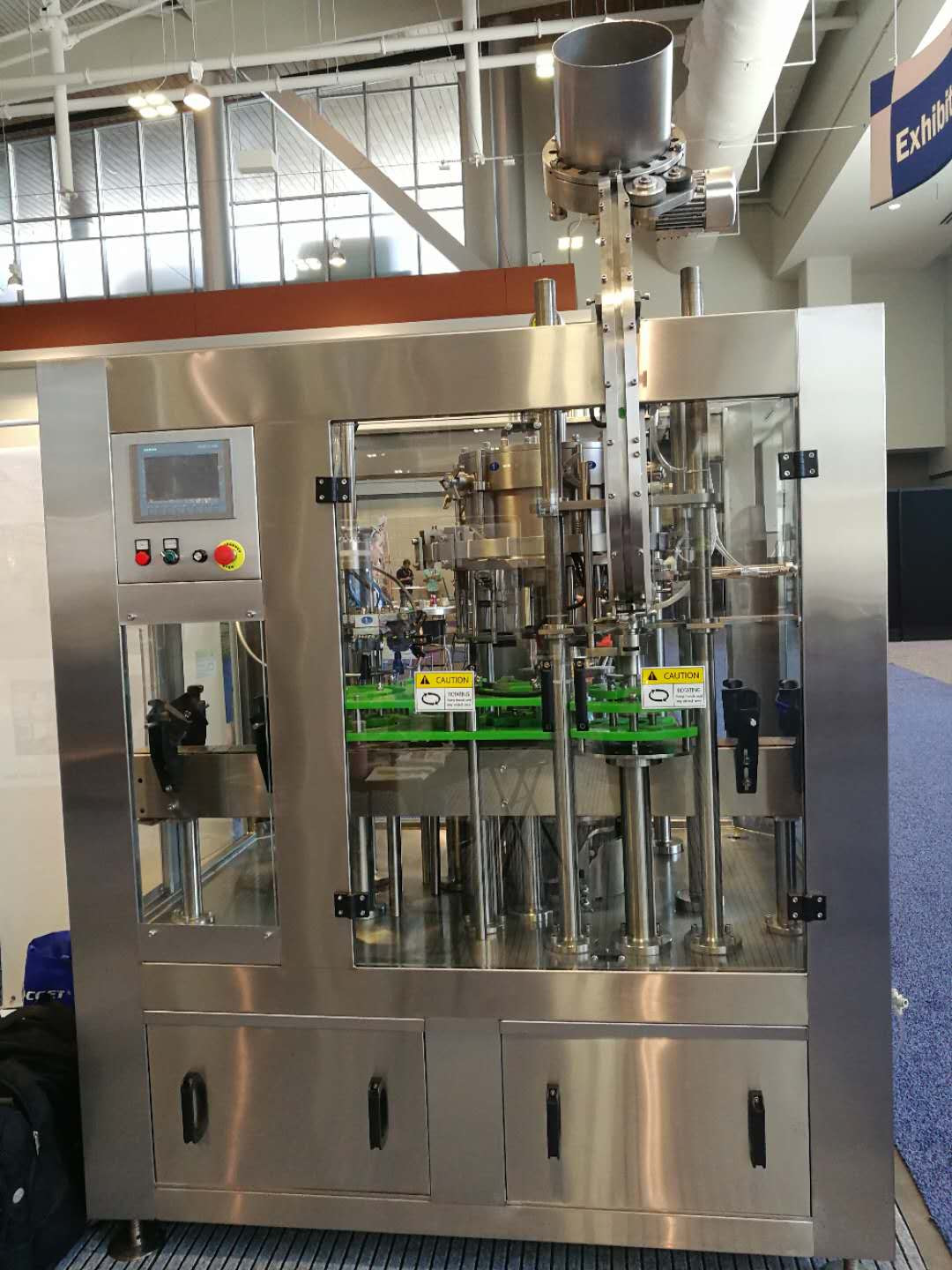

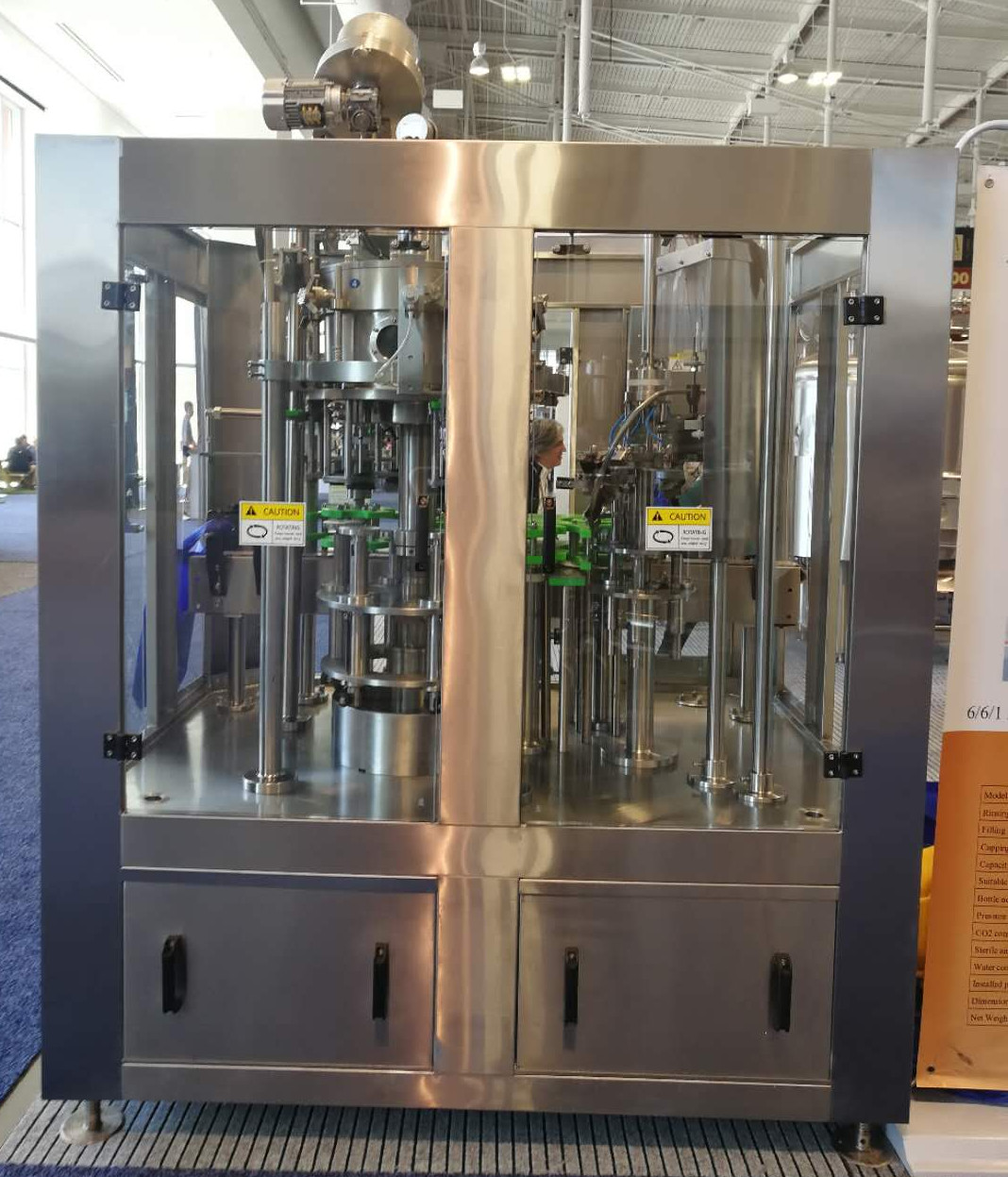

Machine Name :6-6-1 rinsing, filling, capping 3-in-1 machine

Used for filling beer and carbonated drink

Filling beer in glass bottle

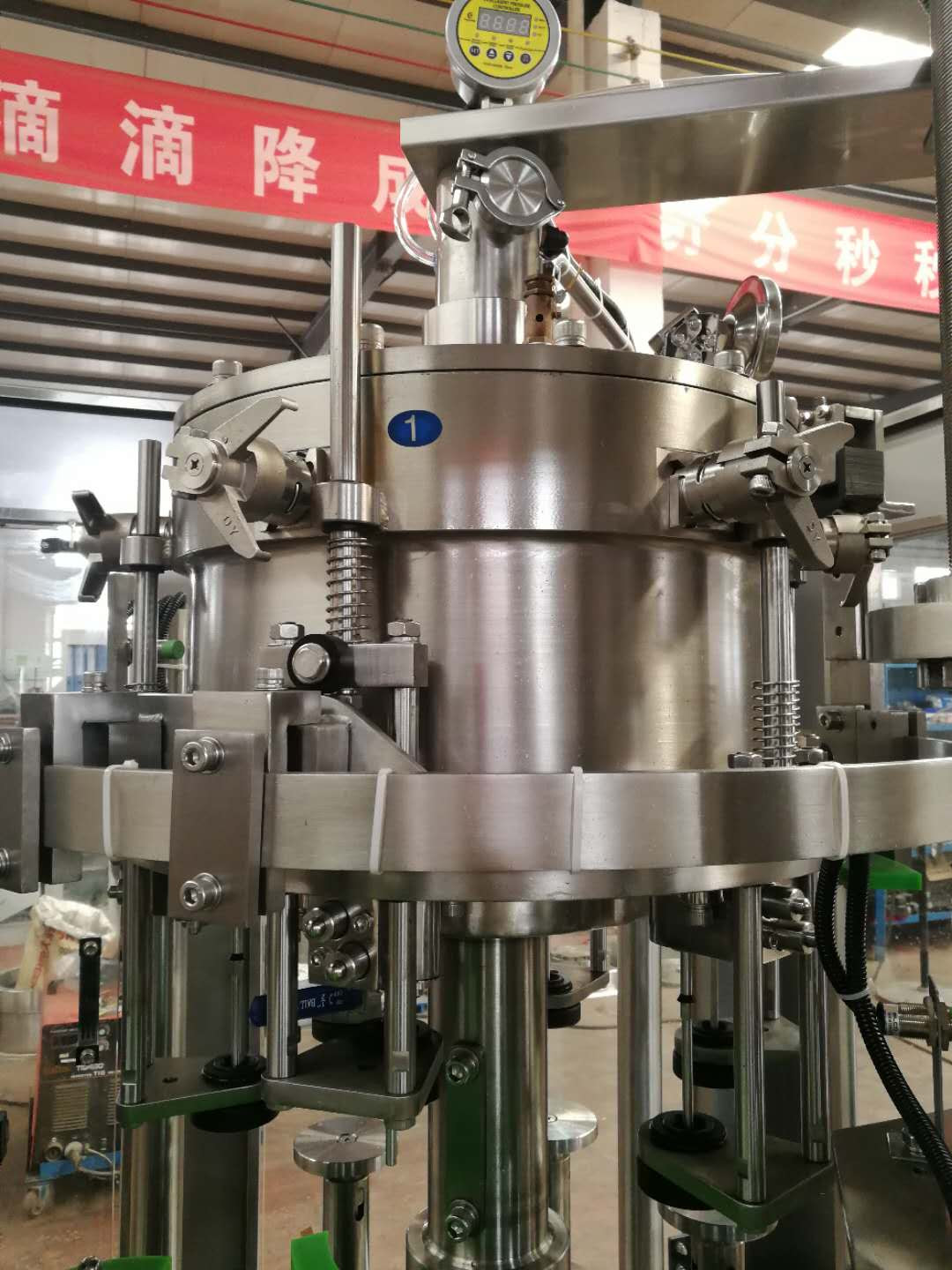

Adopt isobaric filling principle

Filling stable , filling level stable

One time CO2 preparation and one time vacuumed

Widely used in craft breweries

500 BPH Monoblock Filling Machine Glass Bottle Washing Filling Capping 0

rinser filler capper 3 in 1 monoblock
Model	GDCGFB-6/6/1
Rinsing heads	6(diameter:φ595)
Filling heads	6(diameter:φ510)
Capping heads	1(diameter:φ170)
Capacity	500-800 BPH
Applicable bottle	Bottle height 200～350mm DiameterΦ52～Φ84mm
Aseptic air consumption	0.4m3/min(0.4～0.6Mpa); blowing: 0.6m3/h

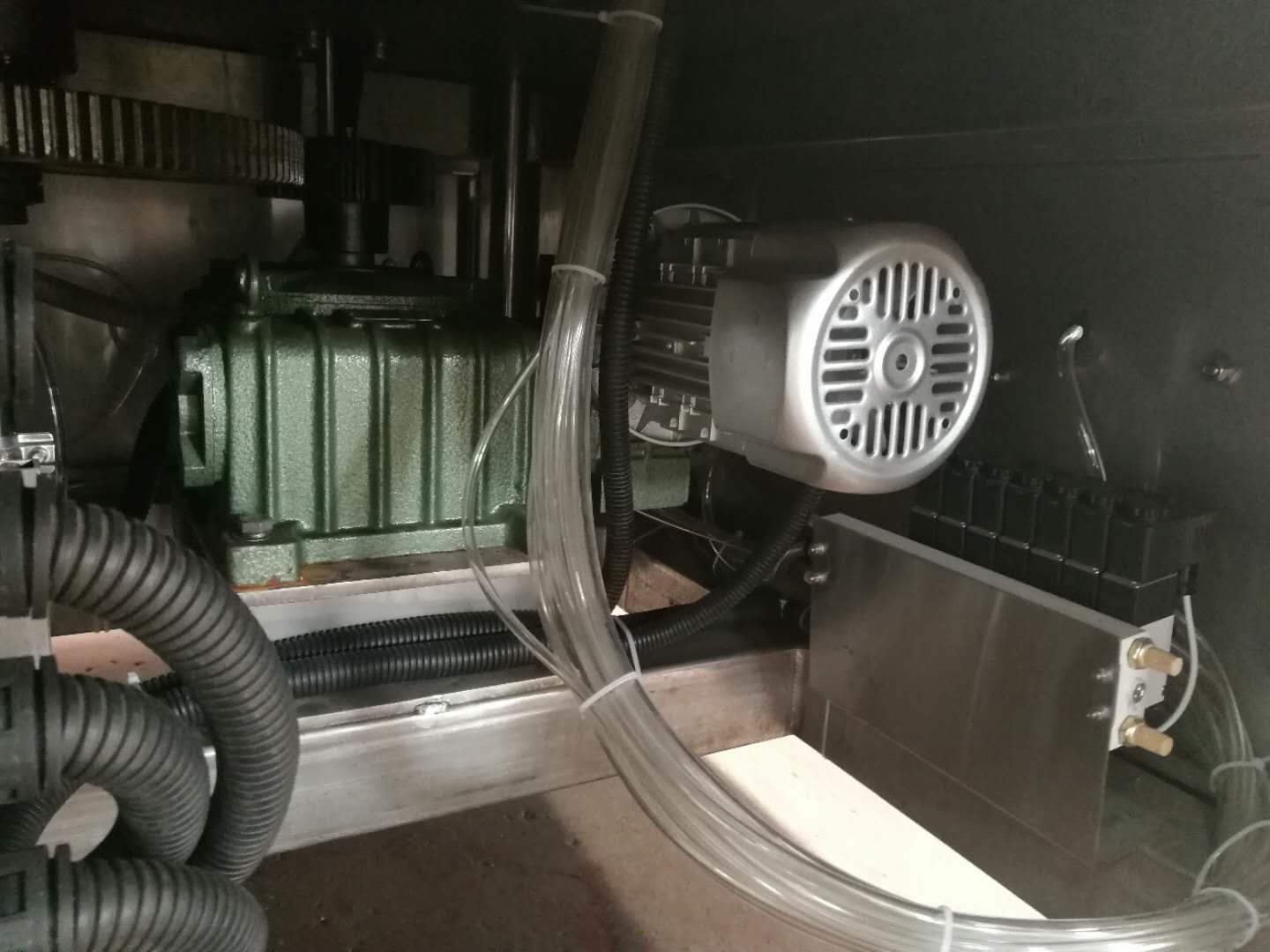

Main motor	0.37 KW
Hopper motor	0 .18KW
Vacuum motor	0.75 KW
Overall dimension	1520×1125×2350mm(L×W×H)
Weight	1300 Kg
