Turnkey Brewery Equipment 3 Vessel Brewhouse SS Brewing Equipment 20Bbl

Turnkey Brewery Equipment 3 Vessel Brewhouse SS Brewing Equipment 20Bbl

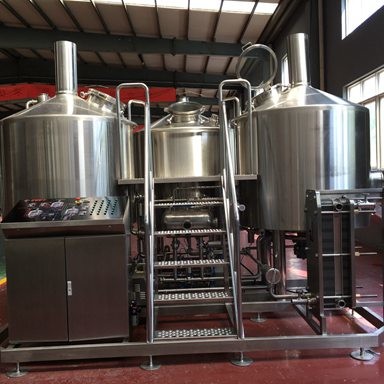

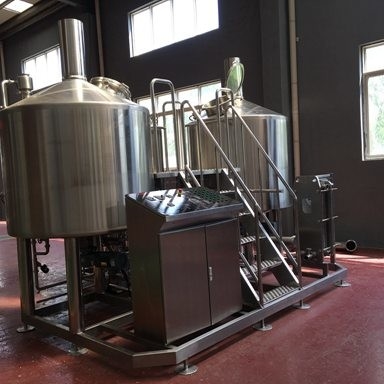

20bbl 3-vessel brewhouse

steam heating

mash tun+lauter tun+brewkettle

with plate heat exchanger, all pumps

separate control cabinet

Malt mill:300-500kg/hour

1. Two Rollers;

2. The power is 3Kw;

3. Net Weight: 150Kg;

4. Dimension: 800*600*1500mm

5. With motor, belt etc.

6. Separation of the rollers adjustable

The distance between the two rollers is easy to adjust and exactly control.

7. Low noise, less than 60db.

8. no leakage of malt, convenient operation

9. High crushing efficiency, speed is fast, the malt is broken, but shell is complete, which improves the filter speed and save time.

10. Alloy roll

 Lauter tun:1000L

1. Dimension:φ1460×2583mm

2. Total volume: 1000L,effective volume:1595L；

3. Thickness of insulating layer: 80mm;

4. Inner Body Thickness: 3mm.

5. With cleaning ring, 2 CIP spray balls

6. Mechanical agitation: cyclical reducer, speed ratio 43; with variable speed control

7. Milled plate false bottom; diameterφ1200mm

8. With manhole

9. Brush finished;

10. With Liquid meter

11. Condensate water pipe

12. Four legs with brace and adjustable bolt;

13. Necessary fittings and valves.

14. With mash hydrator

15. rake system

16. with back wash device from tank bottom (sieve plate bottom can be washed

17. with wort collection device
