100l 500l 1000l Red Copper Brewing Equipment , Mini Beer Brewing System

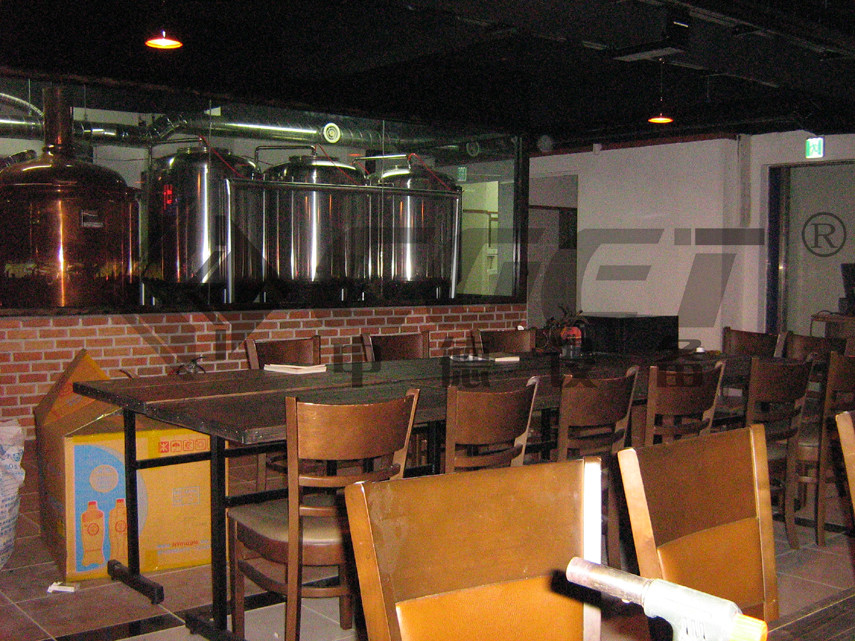

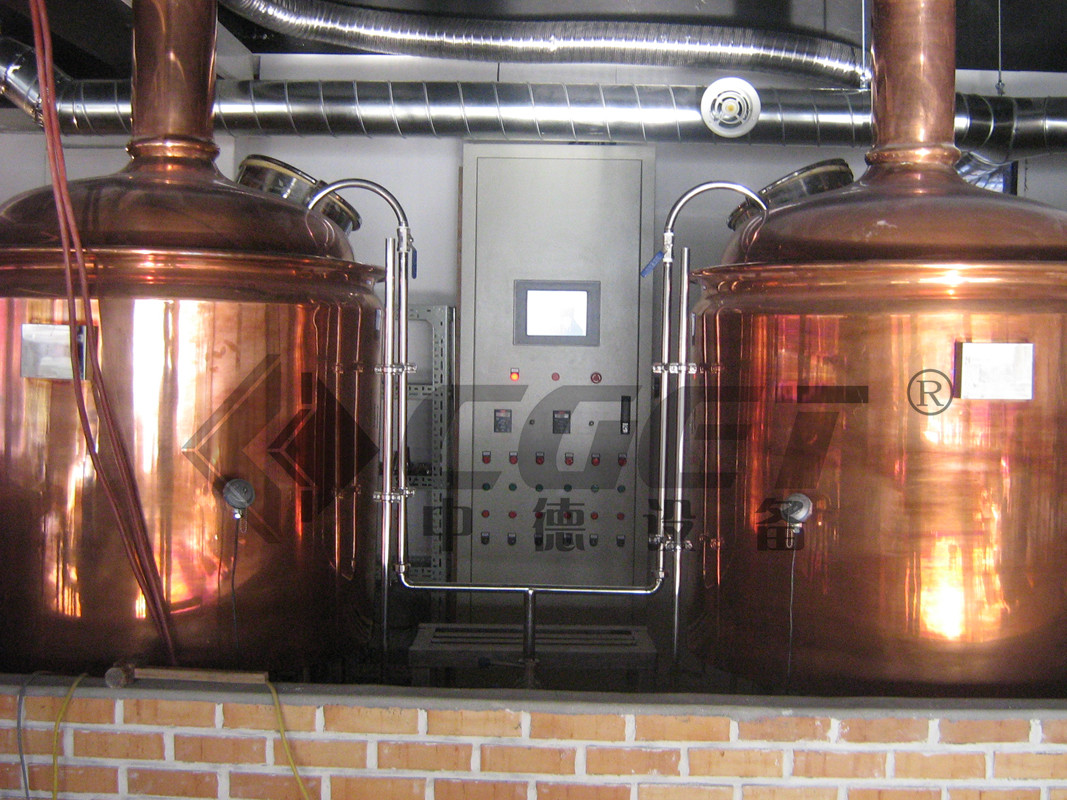

CGET 100L 200L 300L 500L 1000L 2000L copper beer equipment, widely used in restaurant and bar.super design and best service.The copper beer mash equipment is populared in restaurant and bar more and more.
We are a biggest and professional beer equipment manufacture in China, we also manufacture all types and sizes of fermenting and storage tanks.
Our beer equipment can be designed according to the specific wishes of our customers.
|
1. Copper or Stainless steel 304；Dished head; 2. Dimension :φ1500×2900(According to the drawing dimension ); 3. Effective capacity 1500L; 4. Heat transfer area 4 m2; 5. Design pressure:3Bar; Working pressure:2Bar; 6.Double-stage cooling jacket, stainless steel solenoid valve, mechanical pressure regulating valve; 7. Dimple cooling jacket: 1.5mm; 8. Insulation thickness: 80mm; Inner tank thickness: 2.5mm,outer thickness:2mm 9. Conical base 60° 10.Beer racking arm on cone section, bottom drain port, associated valves and fittings; 11. Beer outlet and drain port 12. Top hops add port； 13. Top manhole; 14. Pressure gauge, respiration valve, sample valve; 15. PT100 temperature probe. 16. Four stainless steel legs, with screw assembly to adjust leg height,
|
Application
professional home microbrewery basic home brewing equipment has been widely used around the world, such as small breweries, hotels, bars, teaching laboratories and leisure field, according to the German Munich pure vinification, divided into "Larger" and "Ale" two series, brewing barley beer, wheat beer, dark beer, green beer and different shades of beer fermentation process at room temperature, to achieve the dream of the brewer.
Technical Characteristics:
1- All AISI-304 Stainless Steel Construction
2- Jacketed & Insulated
3- Dual Zone Dimple Cooling Jacket
4- Dish Top & 60° Conical Bottom
5- 3 Stainless Steel Legs with Leveling Portstype specimen book.
Fermenter Includes:
1- Top Manway or Side Shadow less Manway
2- Racking Port with Tri-Clover Butterfly Valve
3- Discharge Port with Tri-Clover Butterfly Valve
4- 2 Tri-Clover Outlets with Butterfly Valves
5- CIP Arm and Spray Ball/Sample Valve/Safety ValvePressure Gauge
6- Thermowell with Tank Thermometer
PRODUCT FEATURES:
1- Desiging tanks and heating system according to craft, mash tank warming≥10℃/min
2- Energy saving stir structure : large cross-section impeller, 15r/min speed
3- Sieve plate of filter tank includes welding sieve plate and milling sieve plate.
4- Plow knife of filter tank separated to one foot, feet and bow plow knife
5- Wort boiling heat way includes steam jacket, interior heating and exterior heating.
6- Material includes stainless steel 304, 316 and red copper
Whether your in need of additional Fermenters or Bright Tanks for your existing brewery, or need an entire Brewhouse we have you covered. We can have any tank custom built to your specific size and style requirements. Copper Cladding is available on any fermenter, bright tank, mash tun/ brew kettle, lauter tun/ whirlpool etc.
More Equipment for your reference
Except the professional home microbrewery basic home brewing equipment , we still make:
professional home microbrewery:50L~200L mini brewery, for home brewery fan, mini brasserie
basic home brewing equipment: 100L~5000L, 5BBL~30BBL, 1hl~50hl or even larger
Fermenters/Unitanks:50L~10000L
Bright beer tanks/Serving tanks/Conditioning tanks: 50L~10000L
Beer selling: Beer selling tanks, beer machine, bar used beer tap/tower
Bottling: manual/semi-auto bottle filling, bottle rinser, bottle washing, capping machine
Kegging: stainless steel beer kegs, dispensers, single-head keg filling&Washing,
double head keg filling&Washing
FAQ
1. Q: Are you a manufacture?
A: Yes, we’ve been in producing, exporting and installing brewery equipment for 22 years.
2. Q: Have you sold equipment to our country before? Which brewery is it?
A: We have 2000+ world-wide customers, covering every continent. With your detailed request of brewery, we’ll provide you contacts for calling and visiting our successful brewery projects.
3. Q: What kind of equipment should I choose?
A: With knowing your expected beer output & brewery area dimension, we will choose the most appropriate equipment for you.
4. Q: Is customize available?
A: Sure, and that’s the spirit of craft beer brewing: multy-possibilities & being unique.
5. Q: Will I get design or solutions for my brewery?
A: Definitely, we design brewery layout for every client. Further more, beer recipes and brewing tutoring if needed.
6. Q: How should I install the brewery?
A: You will get our full and accurate online guidance, including video, picture instruction, our experienced technicians will handle the whole process as a turnkey project.
7. Q: Is your system manual or automatic?
A: All the electric devices are controlled by PLC system. It’s semi-auto on brewhouse and full-automatic on fermentation. You can read all status of brewing on the screen/gauges.
8. Q: How should I pay?
A: After signing contract, 30% by T/T in advance and balance before shipment.
9. Q: How long does the production take?
A: Generally 30 working days since receipt of down-payment.
10. Q: What about quality warranty?
A: We provide 3 years warranty for main equipment, and 2 years for electric devices.
